SKU #: 243772

Yale

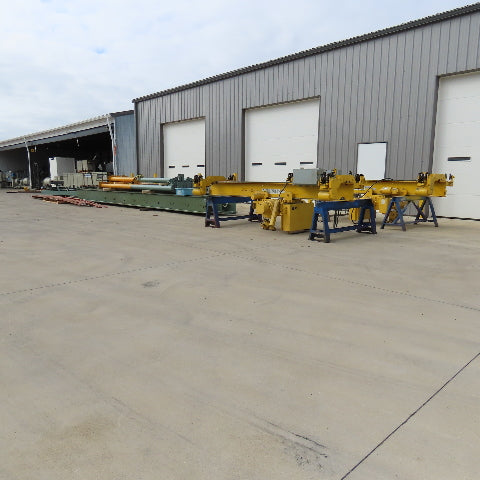

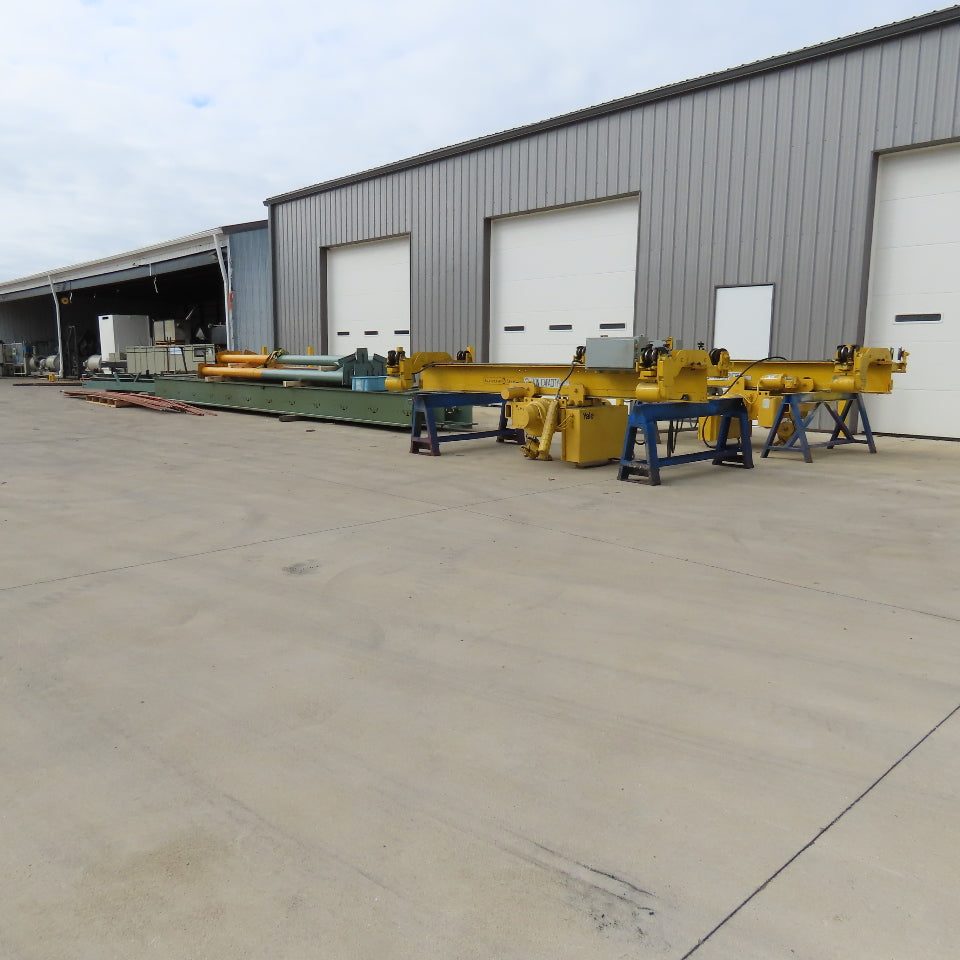

Yale 14' x 110' Free Standing Underhung Dual 3 Ton Wire Rope Bridge Crane 480V

Yale 14' x 110' Free Standing Underhung Dual 3 Ton Wire Rope Bridge Crane 480V

Questions? Contact support.
Purchase Information
$19,892.79 USD
$19,892.79 USD
Shipping calculated at checkout.
(Please reference this SKU number when making inquiries.)

 sku: 243772

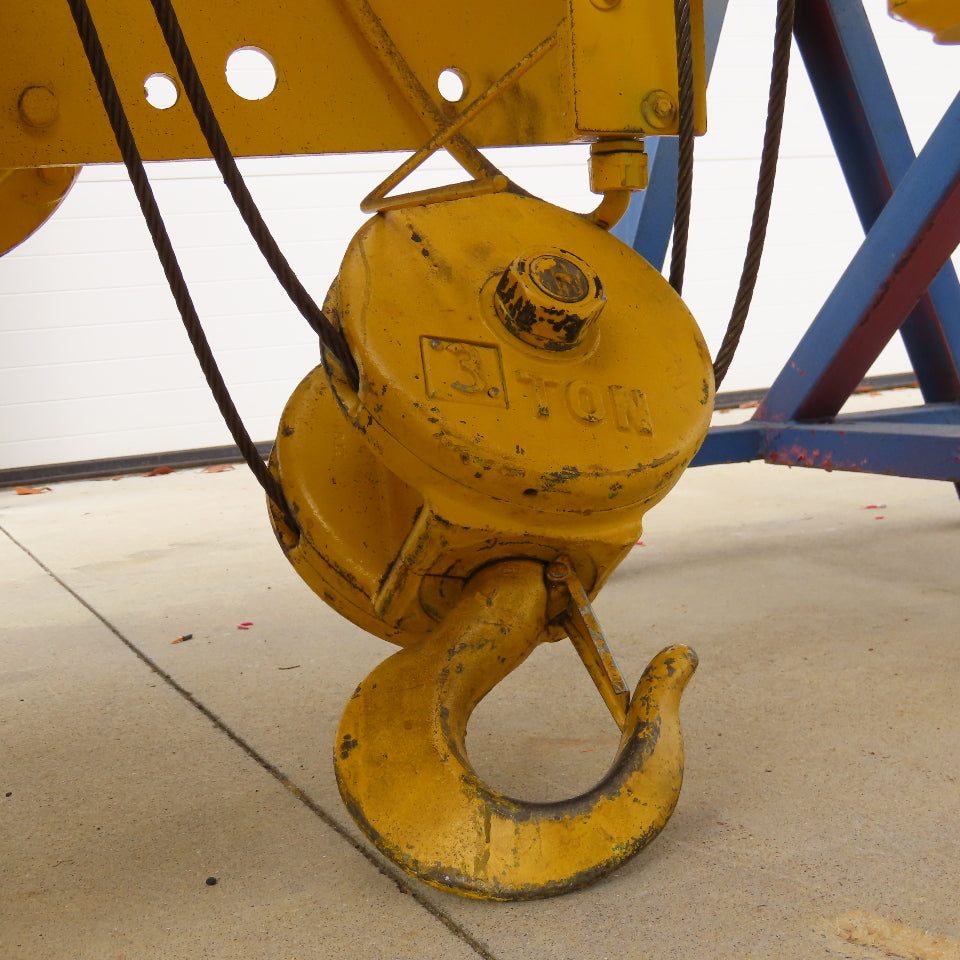

    • Capacity (tons): 3
    • Capacity (lb): 6000
    • Volts: 480V
    • Phase: 3
    • Hanging Style: Underhung
    • Runway Beam Distance Between Centers: 172-1/4"
    • Runway Beam Length & Width: 8" x 8"
    • Main Beam Length Of Travel On Runway: 105' Approx. travel
    • Main Girder Beam Size (Height x Width): 18" x 3-1/2" on bottom and 9-1/2" top flange
    • Hoist Brand: Yale
    • Lift Speed (feet per minute): 16/5.3 FPM

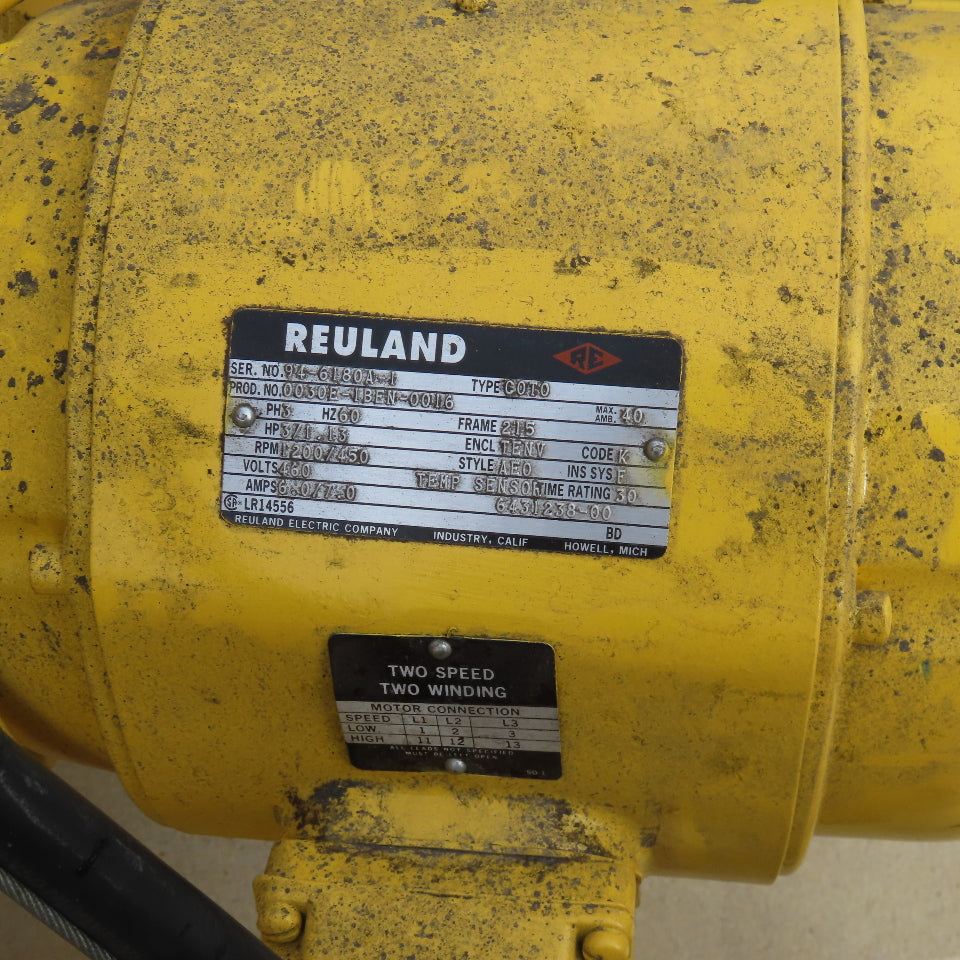

    • Motor Horse Power: 3/1.13Hp main hoist motor
    • Hoist Duty Class: H4

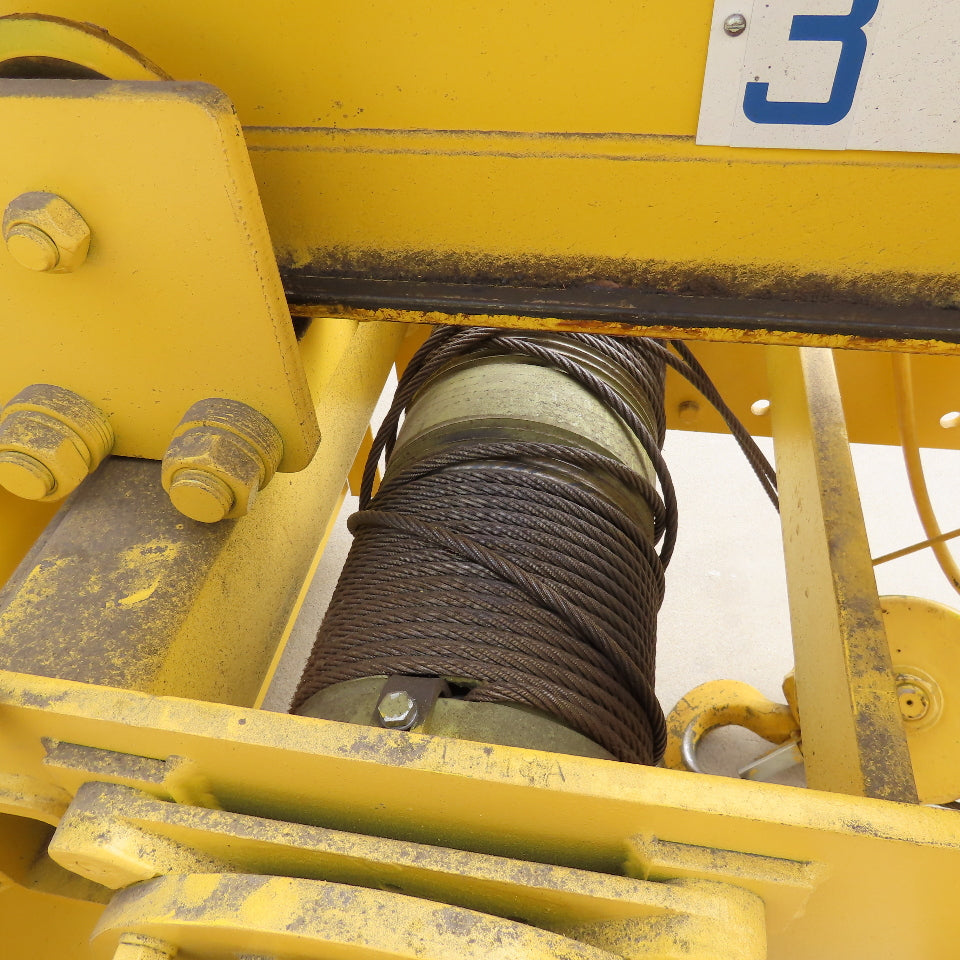

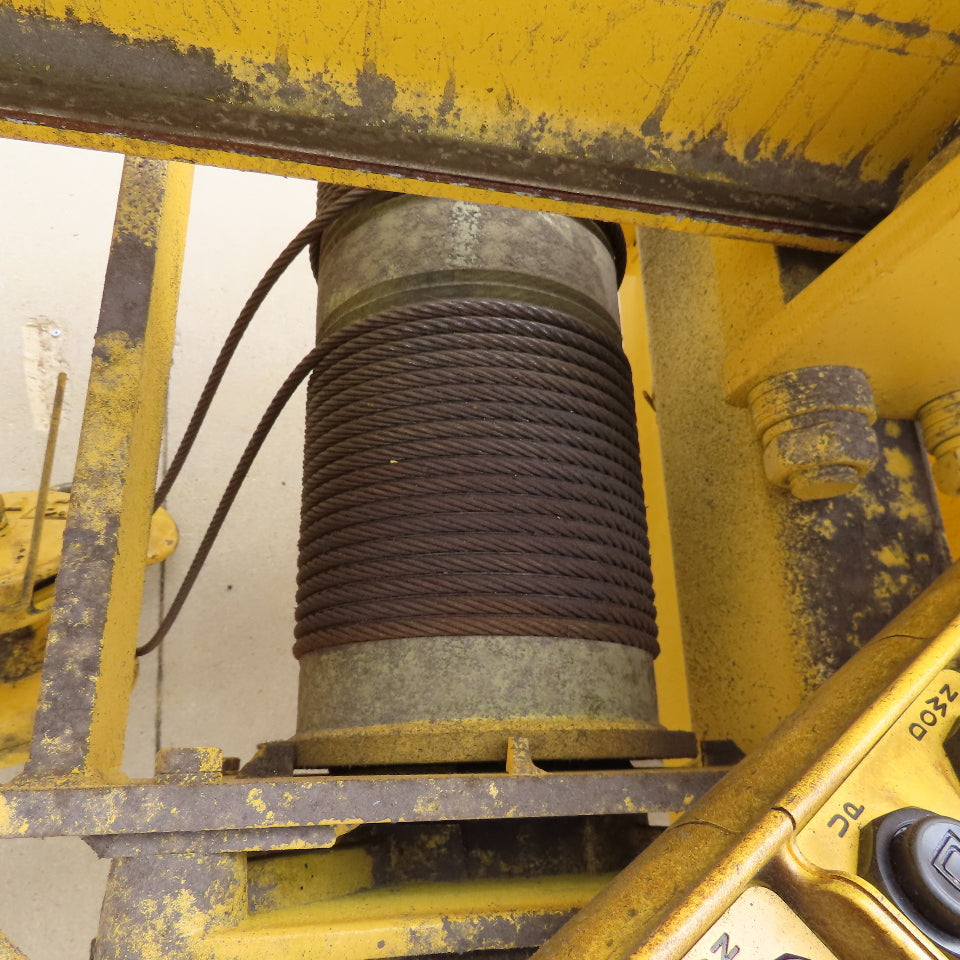

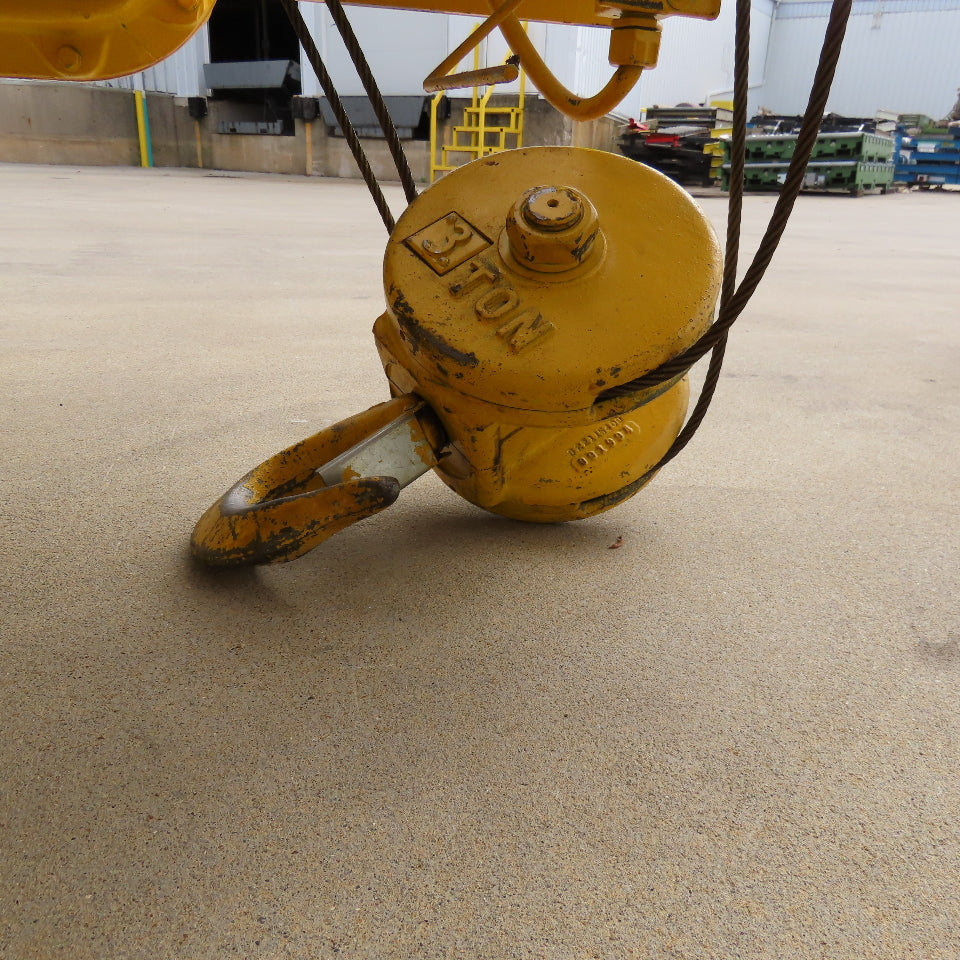

    • Lifting Medium: Wire Rope
    • Hoist Trolley Length of Travel: 12'

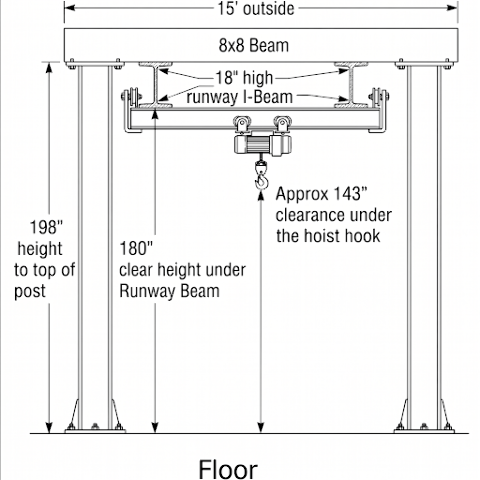

    • System foot print is 172-1/4" center on center width x 110' long and requires a ceiling height of 15'1" minimum

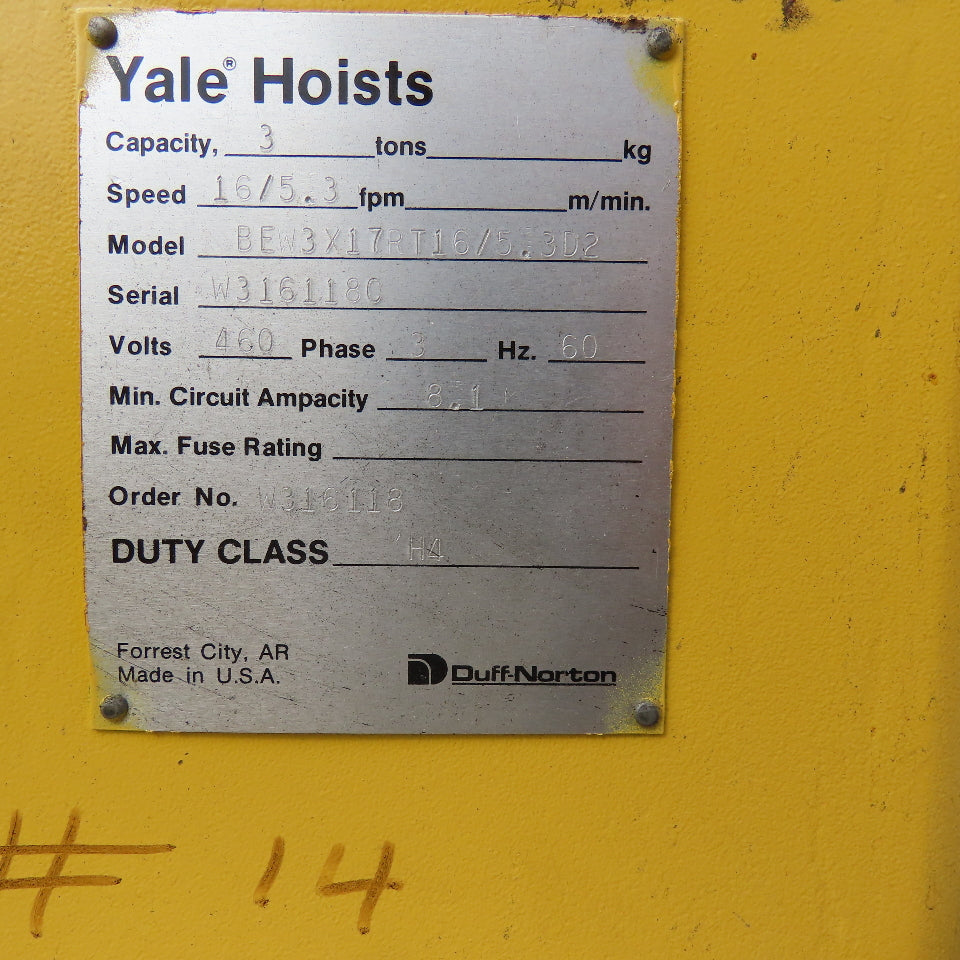

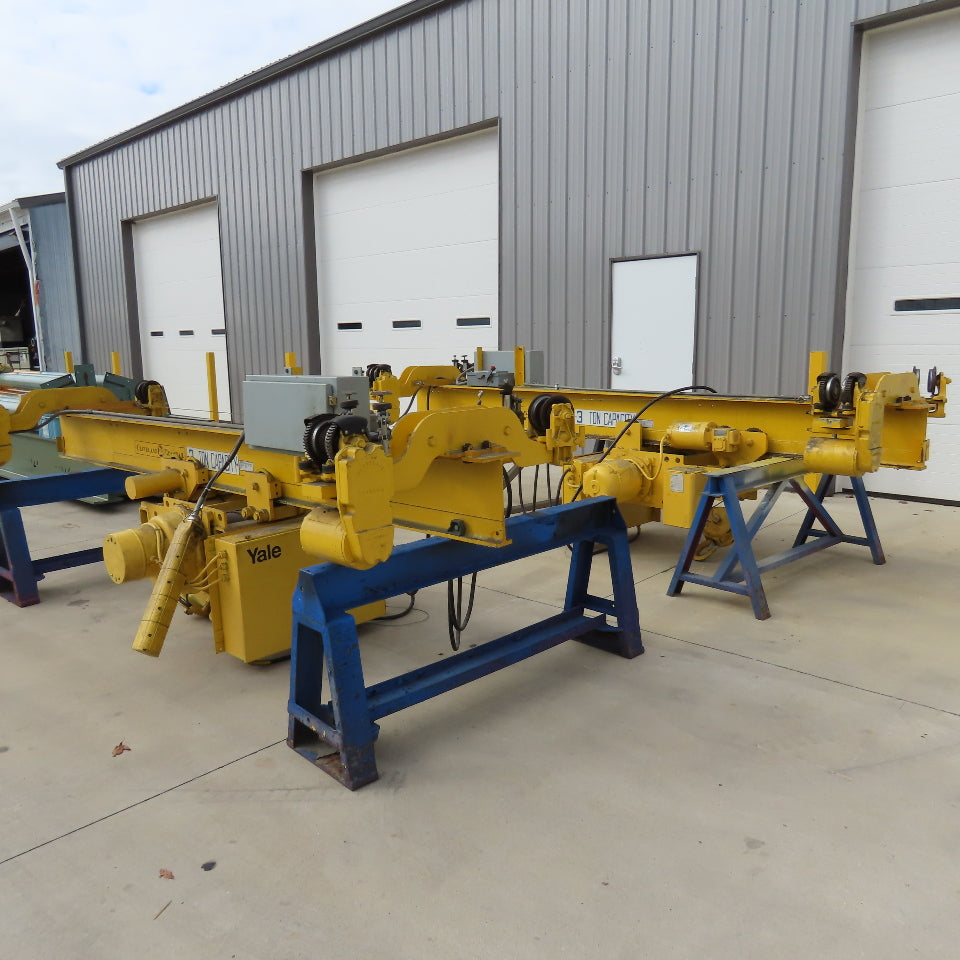

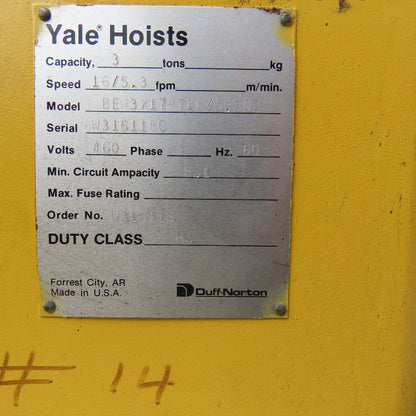

    • Each crane is a Yale model BEW3X17RT16/5.3D2

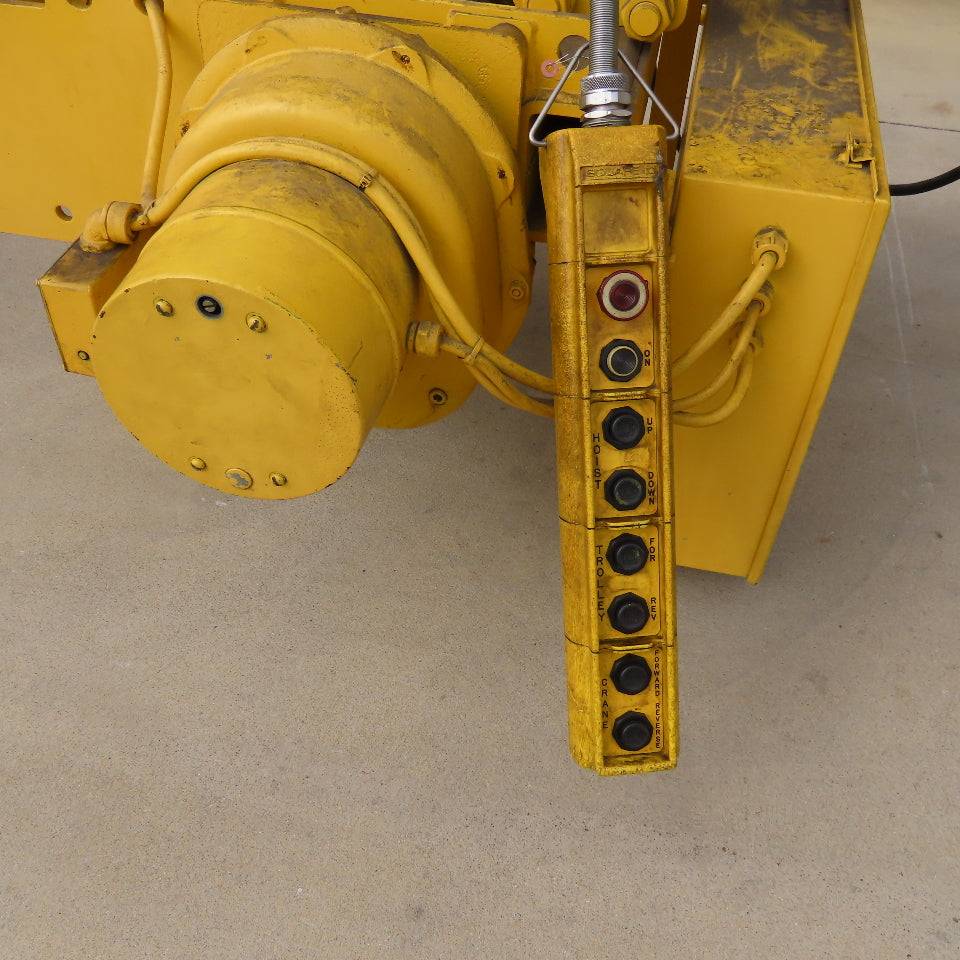

    • Two speed hoist 16/5.3 FPM

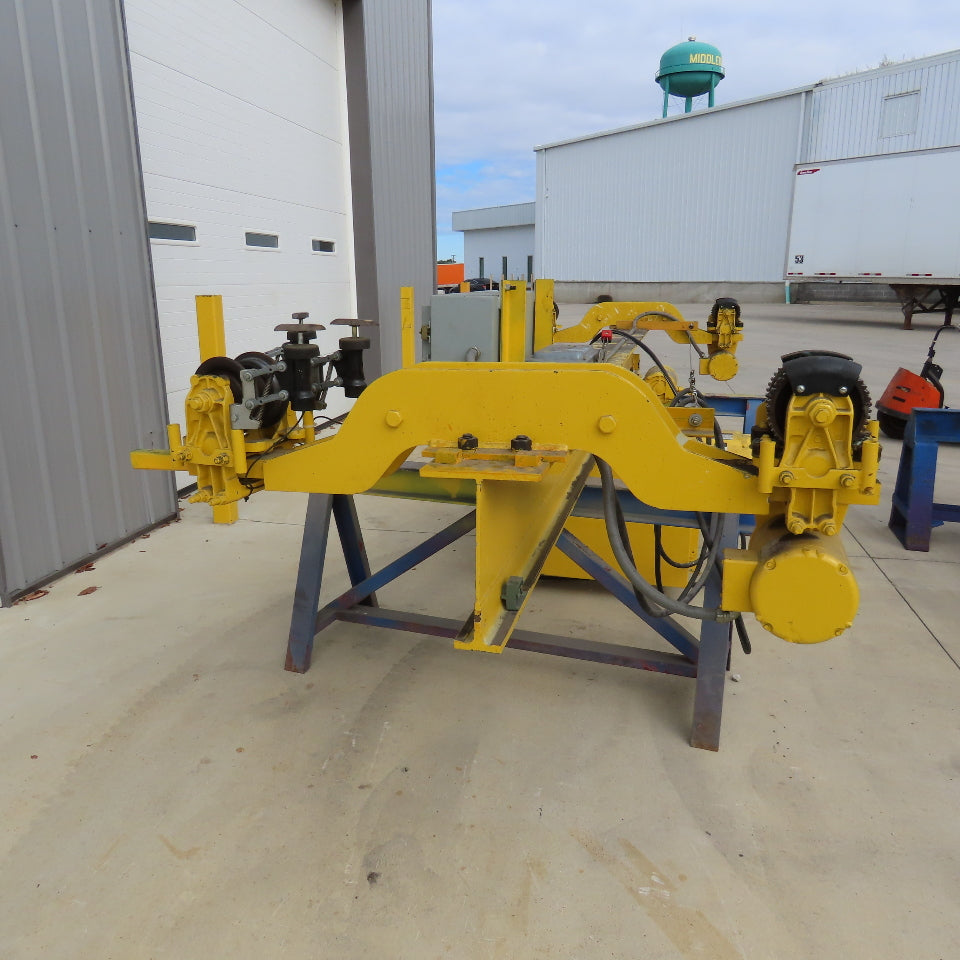

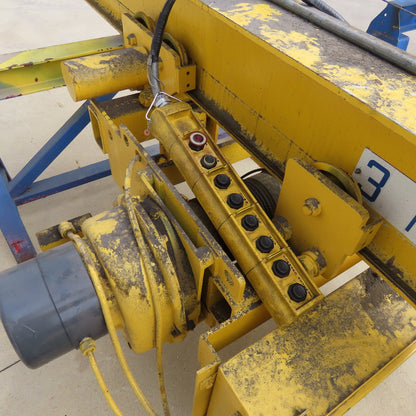

    • Powered trolleys

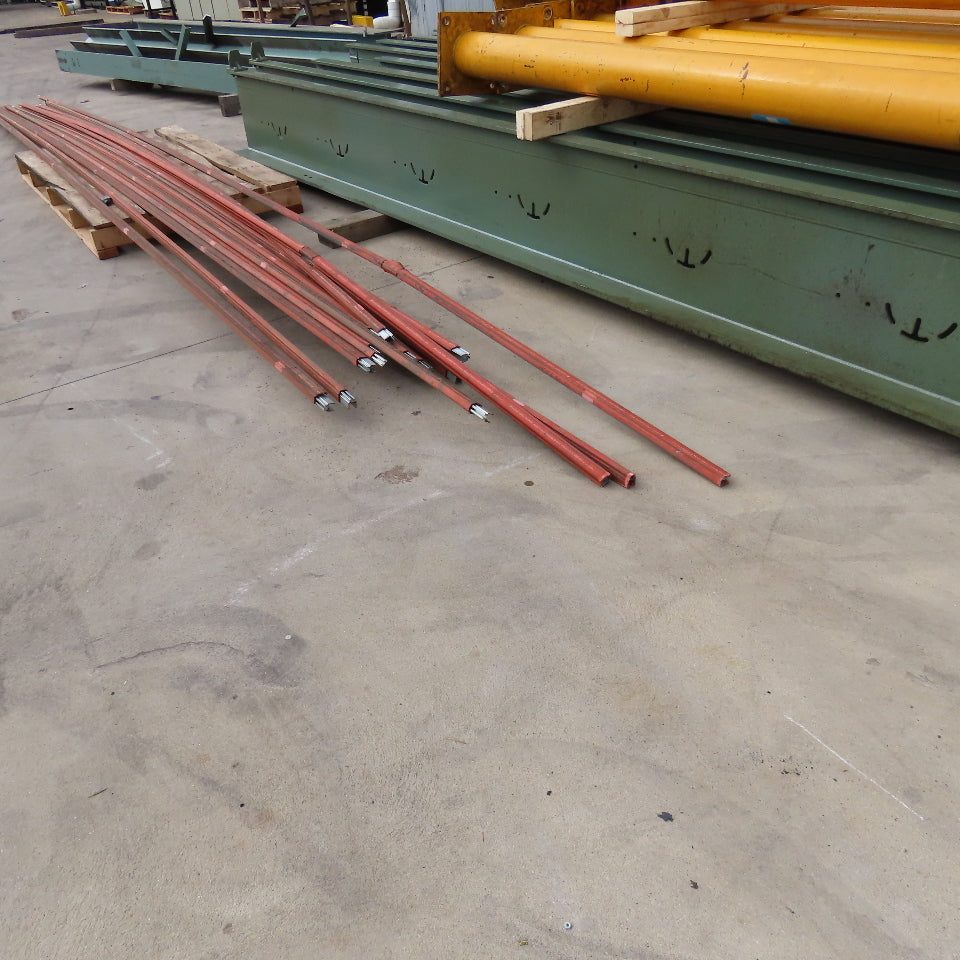

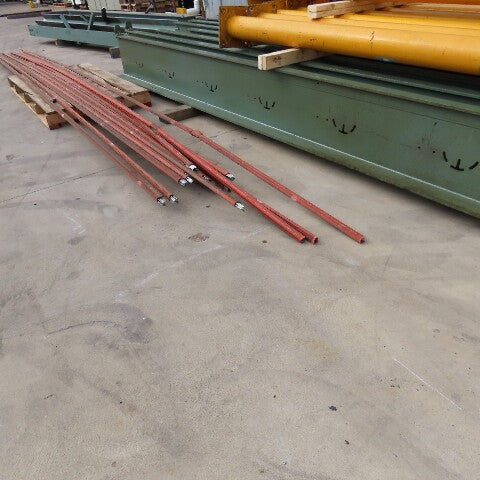

    • Includes conductor rails for full run, 480V 3Ph Only

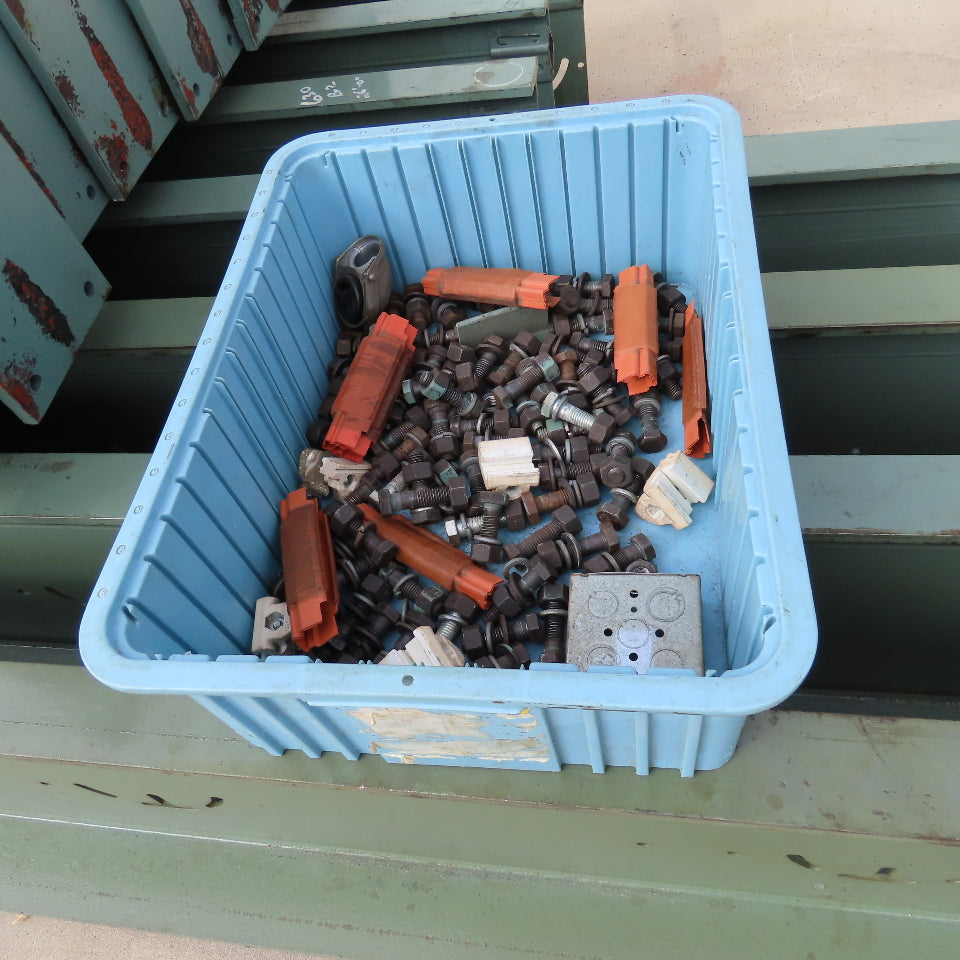

    • Assembly notes will be included, and parts are numbered with position on notes

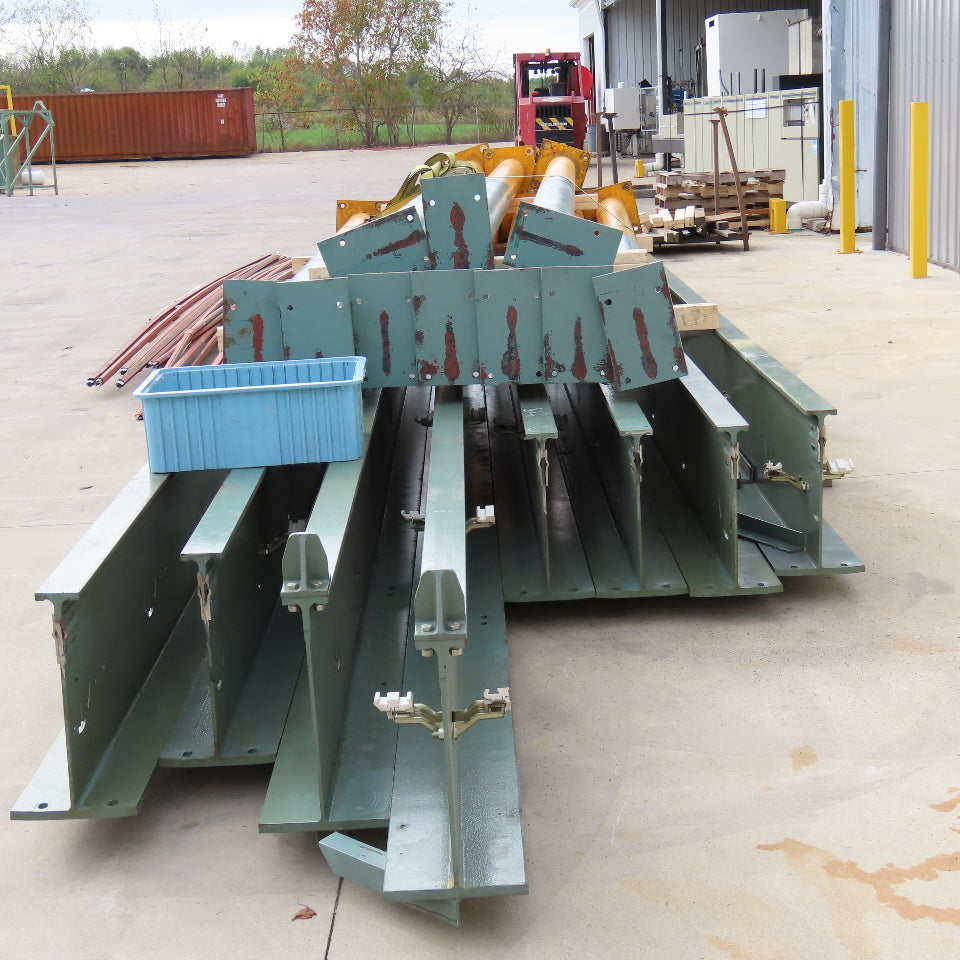

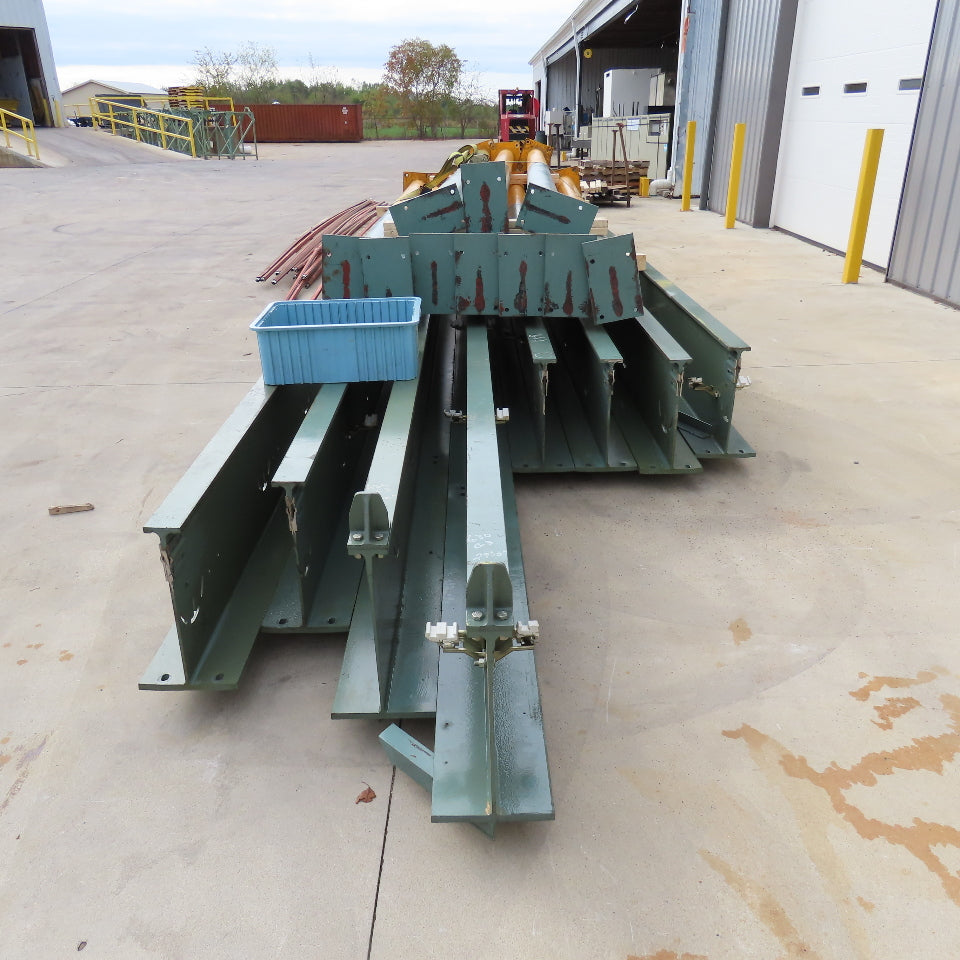

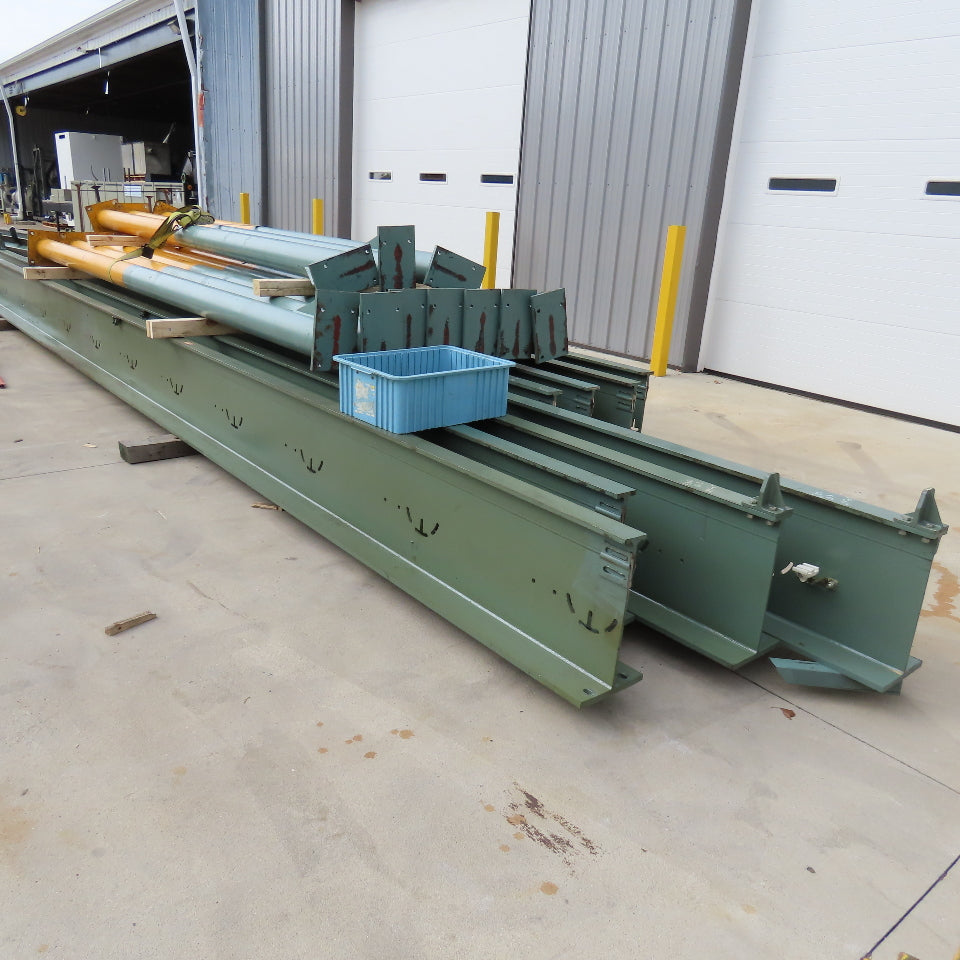

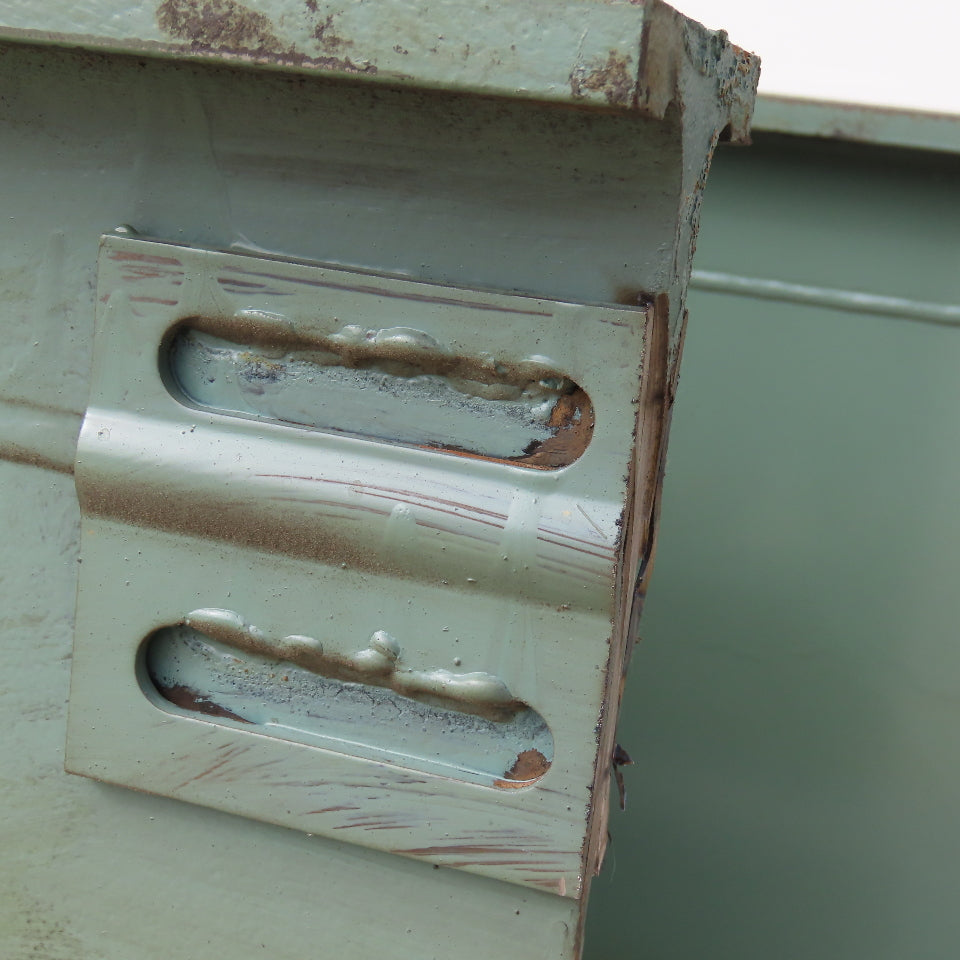

    • Girder beams were seamed together with weld plates, and were cut when dismantling, new plates will be needed for installation.
    • Removed from a working environment

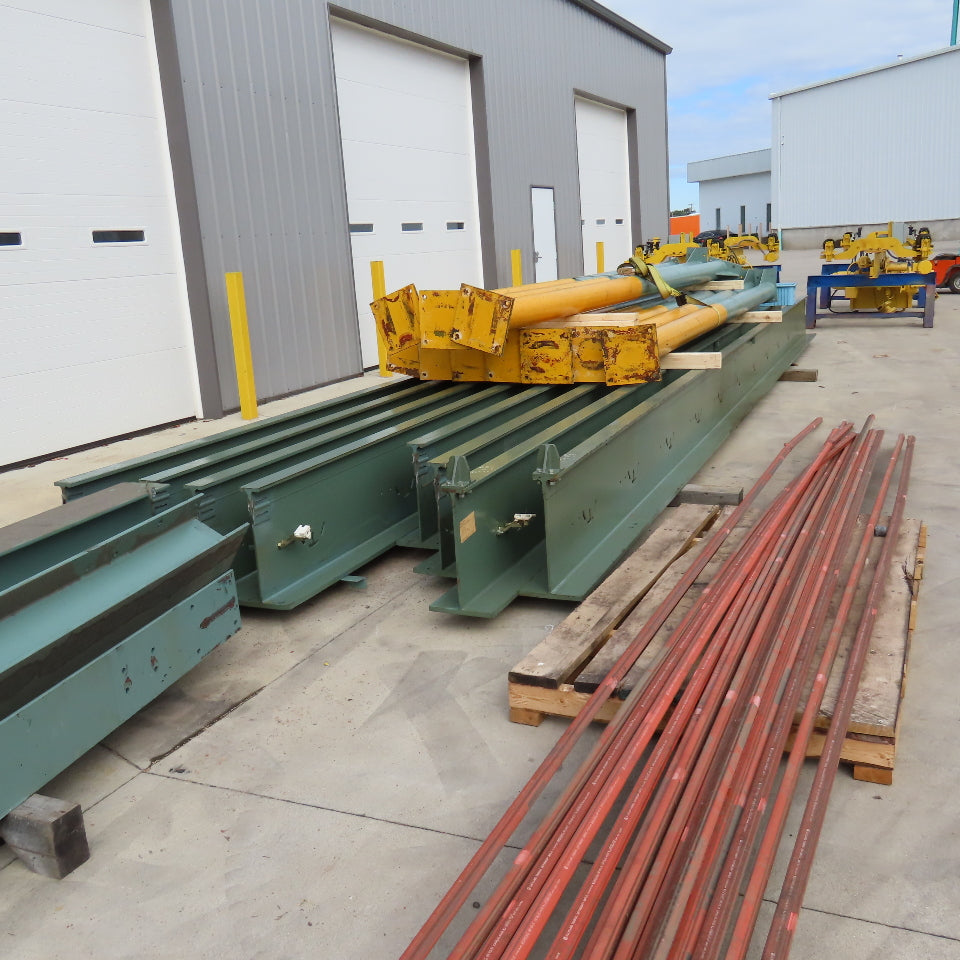

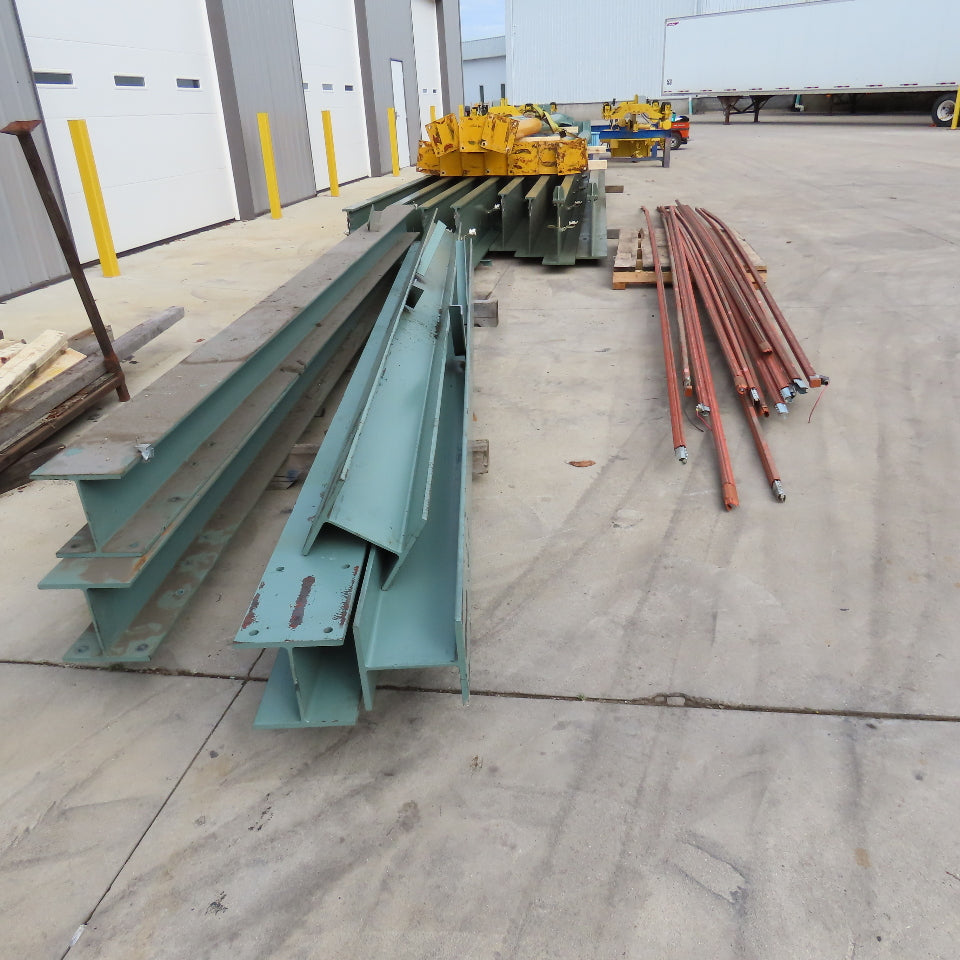

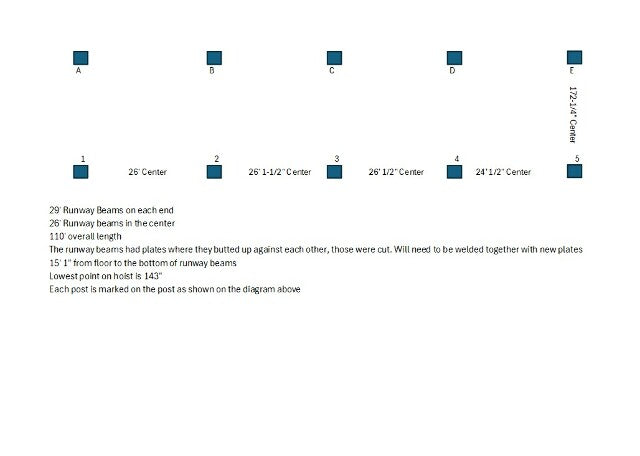

    • For space consideration, the support columns were set at 26' centers and 26-1/2" centers. The columns are 198" tall, and there are 10 of them.

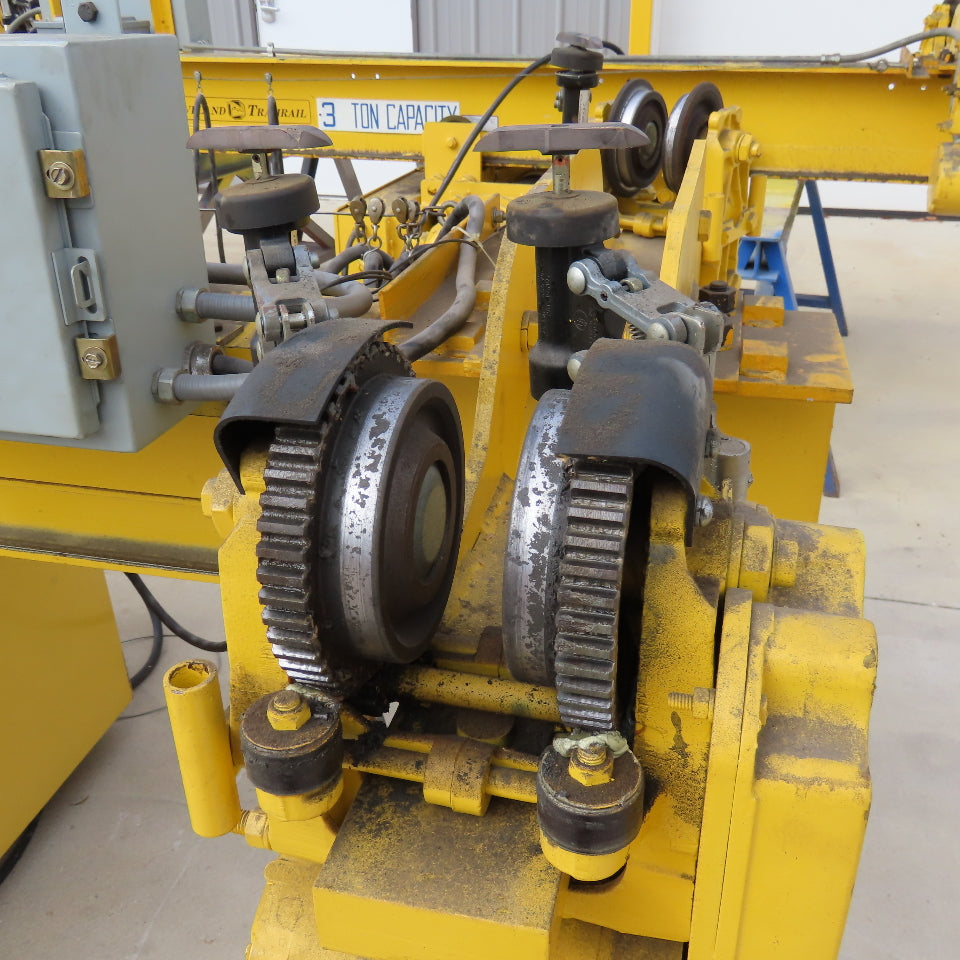

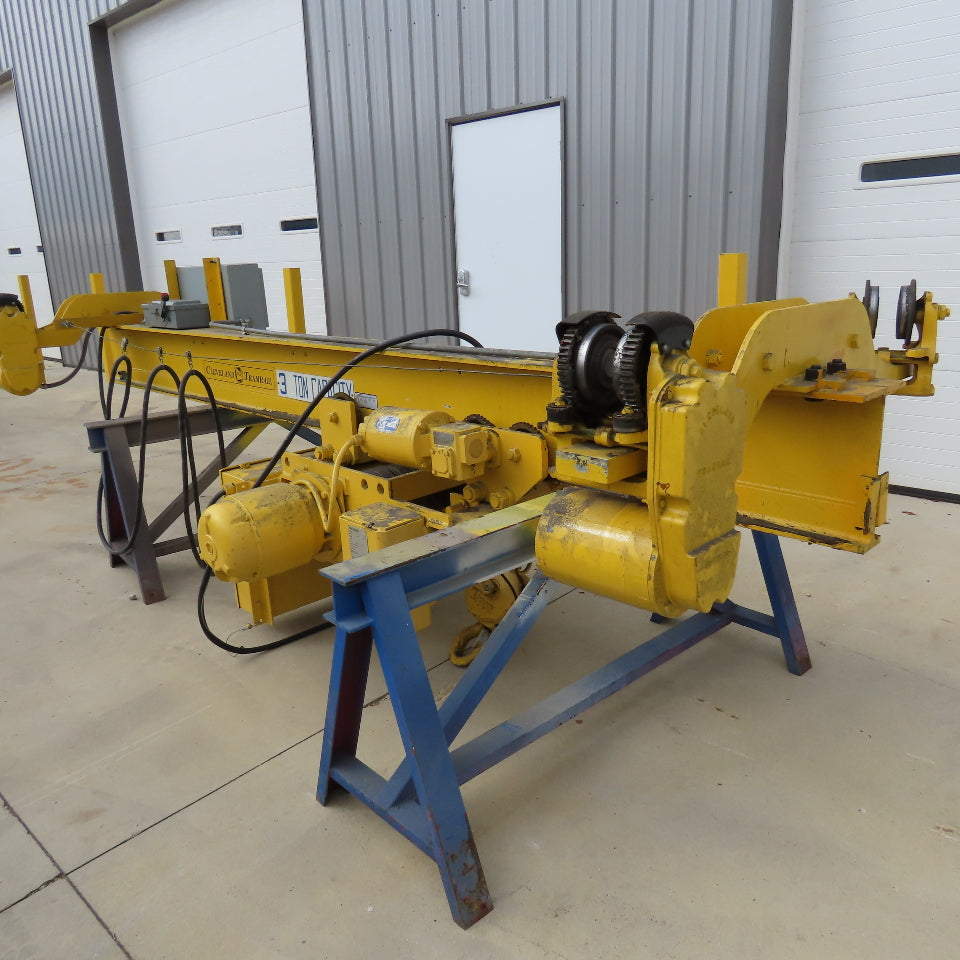

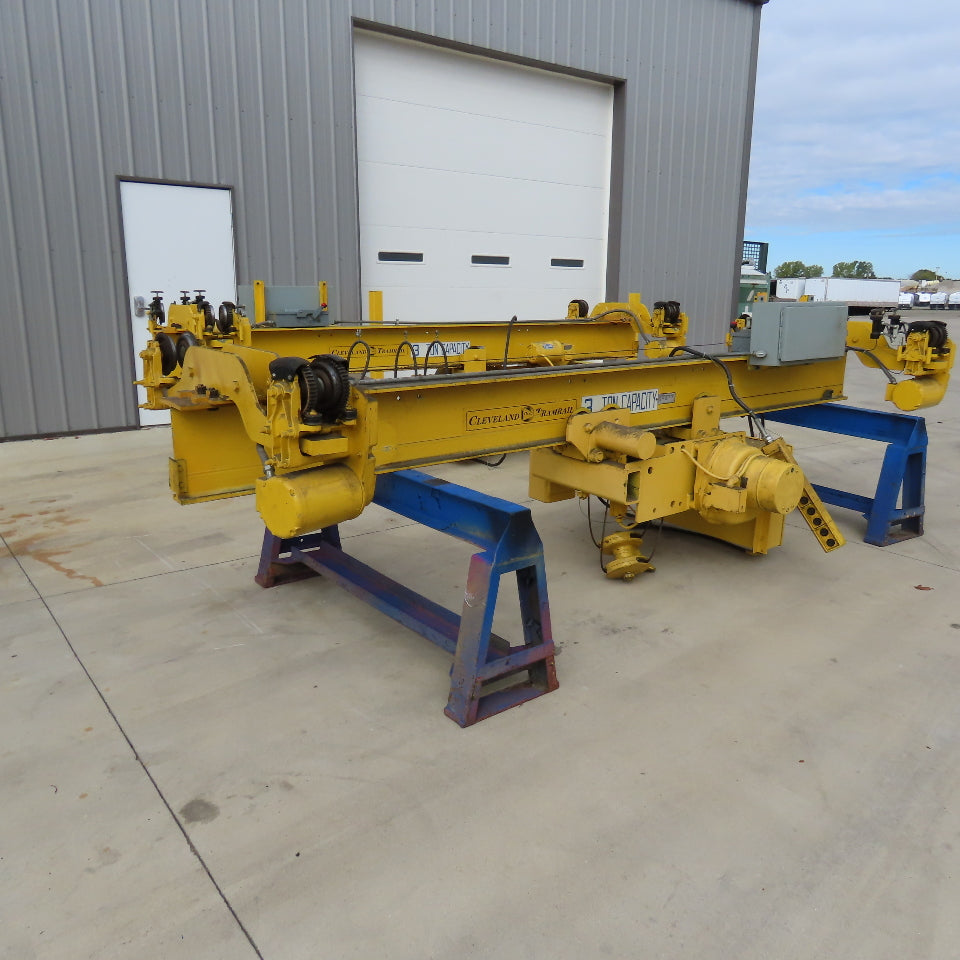

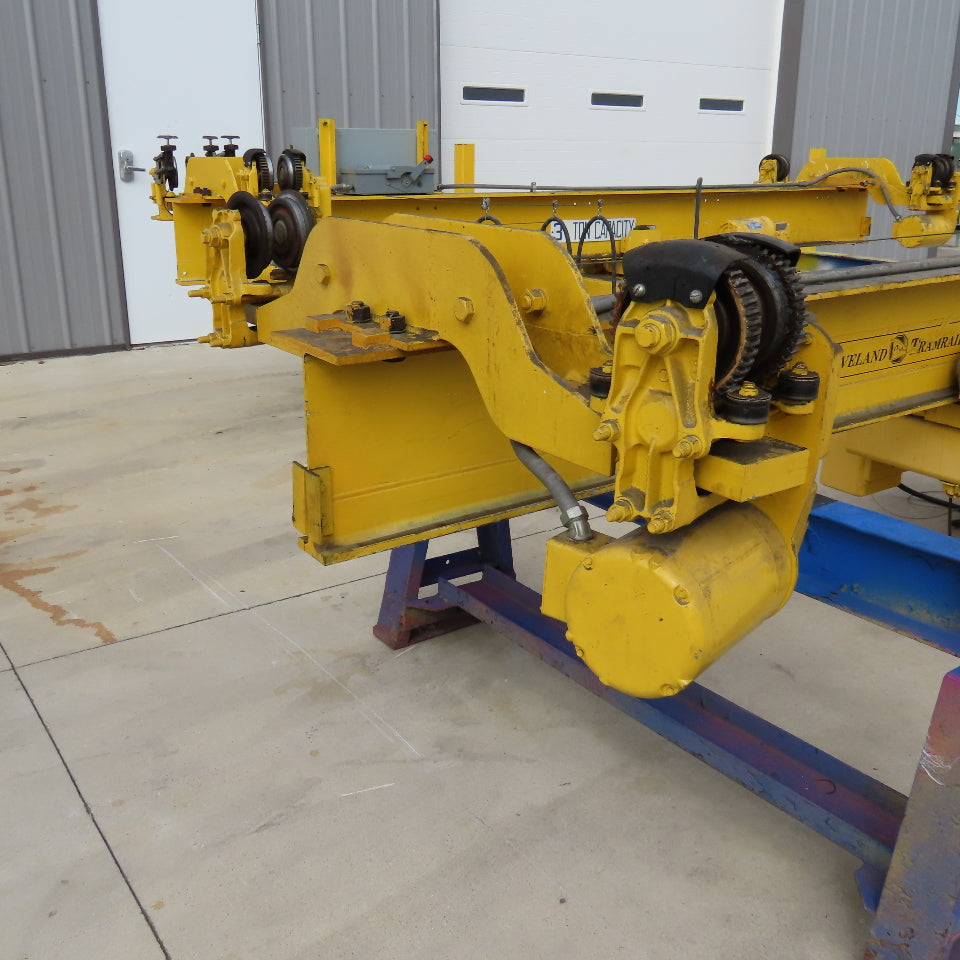

    • Trolleys are Cleveland Tramrail, hoists are Yale
SKU 243772
Weight 44941.23 lb
Brand Yale
MPN N/A
Condition Used
Country of Manufacture United States
Warehouse Storage Location Outside Lot Aisle 7
Items in Lot 1

Low stock: 1 left
