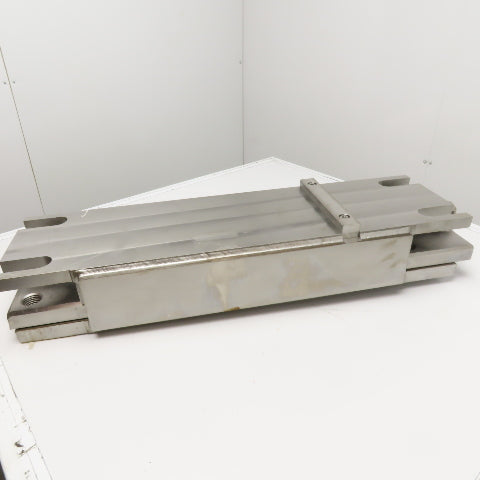

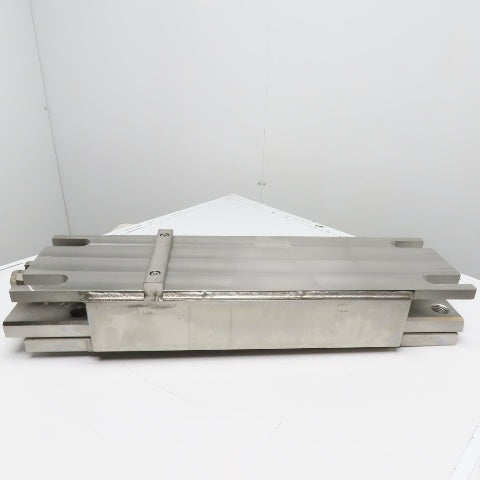

Stainless Steel Mounted Linear Tension Adjustment Fixture Screw Plate See Info

Stainless Steel Mounted Linear Tension Adjustment Fixture Screw Plate See Info

Questions? Contact support.
Purchase Information
$1,804.99 USD
$1,804.99 USD
Shipping calculated at checkout.
sku: 302487

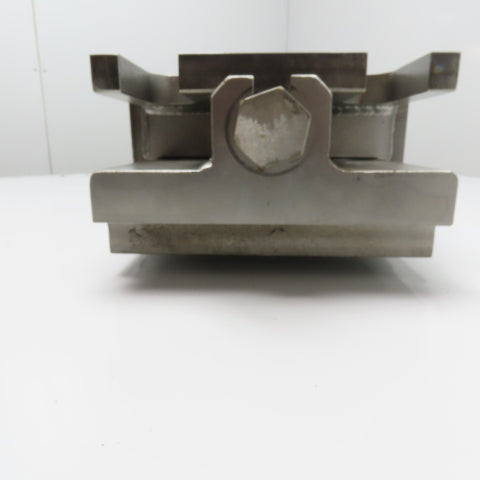

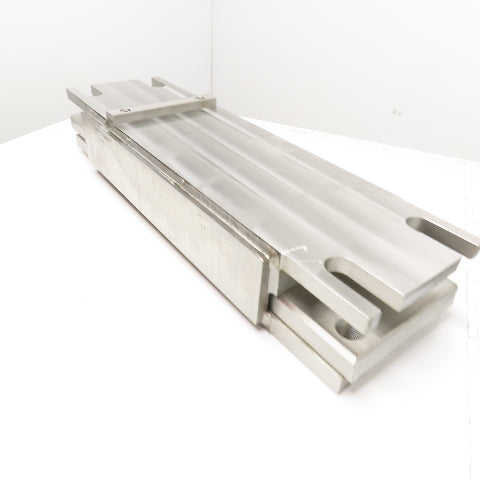

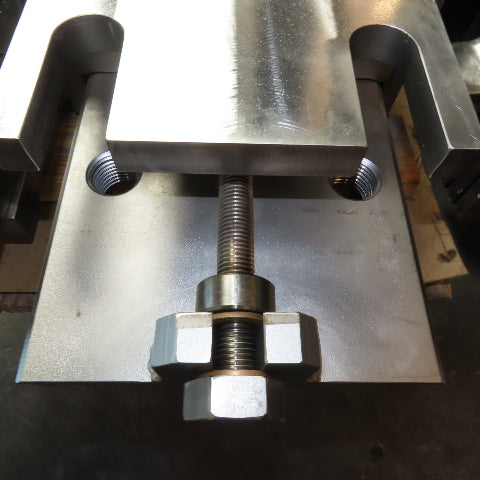

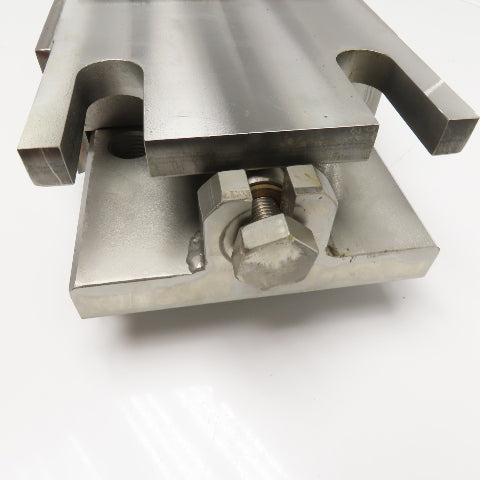

    • The main housing or body of the unit bolts directly onto a secondary moving surface (like a slide plate, tension adjuster, a large traveling weld gantry, or weld fixture) Turning the screw shifts the center plate that is bolted to a key dog underneath the plate, then THAT which the key dog is locked into will adjust, 2" screw stroke. (key dog meaures 1-1/2" x 4")

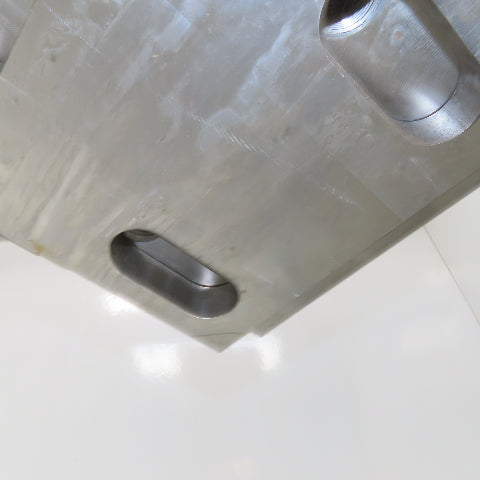

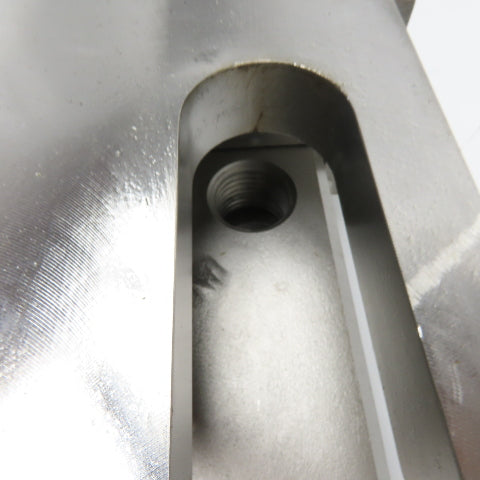

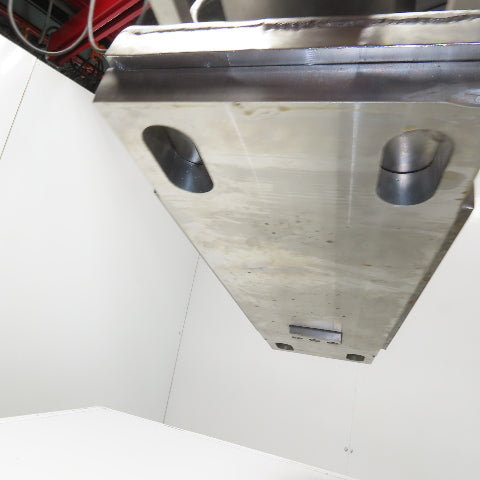

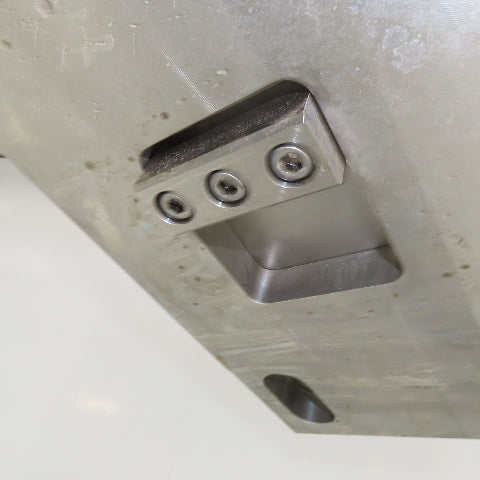

    • The underside has slots for mounting bolt passage, and slot for key dog, see photos.
    • Not a typical slide plate where the TOP shifts when adjusted, BUT Instead the Dog located on the bottom moves.

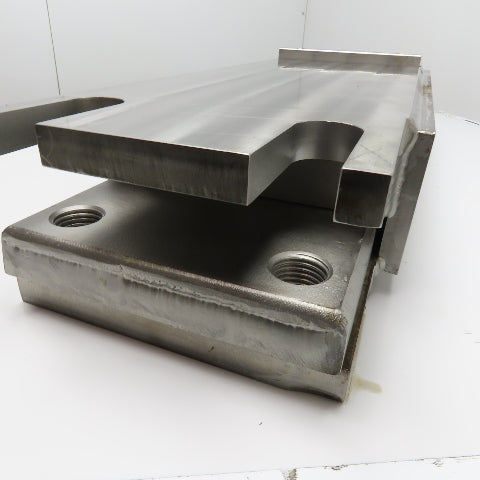

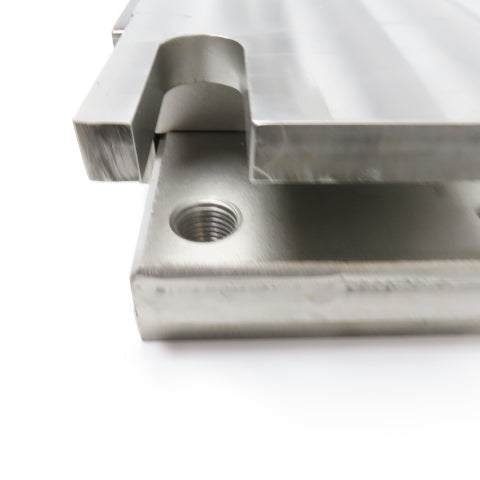

    • This could be modified, both keys, top and bottom dog are bolted on, leaving a smooth surface if removed

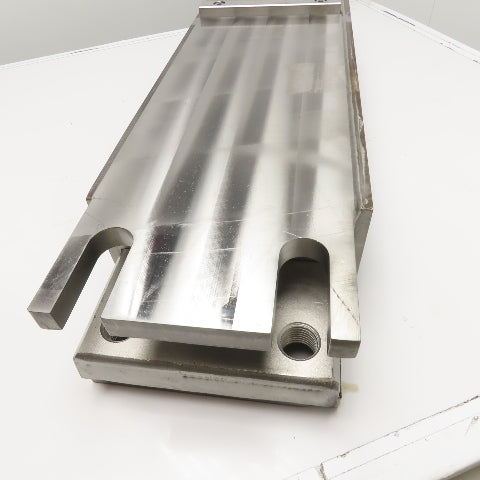

    • Measures 38" Long and 10-1/2" wide
    • 1" thick All stainless steel construction (ideal in a welding environment)
    • Top key is 1-1/2" wide x 10-1/4" long and is located in from the screw end to center of key 11-1/8"
    • Mounting holes are 7" OC and 32" across OC
    • We have 2 of these at time of listing
    • There are riser plates that fit on top, (not included) but we are unsure how it works with this piece, those are SKU 302502 (2 available at time of this listing)
SKU 302487
Weight 500.0 lb
Brand N/A

Low stock: 2 left
