SKU #: 271276

DCM

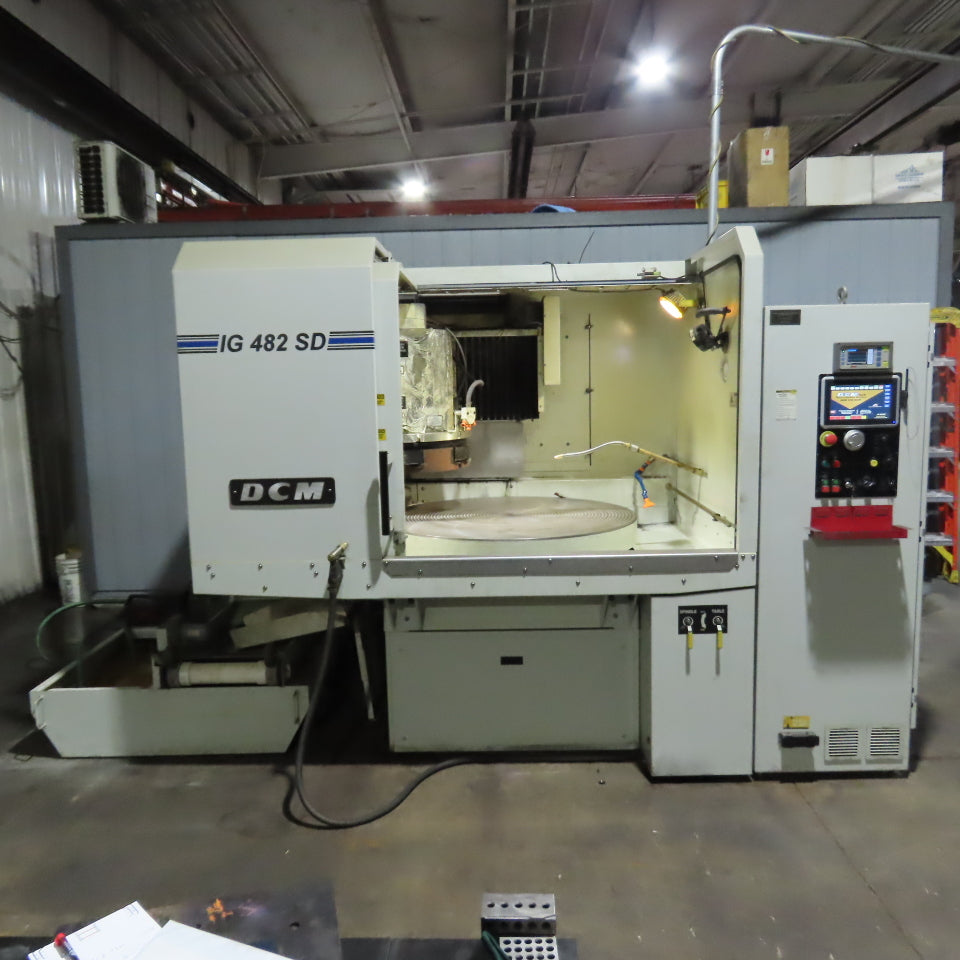

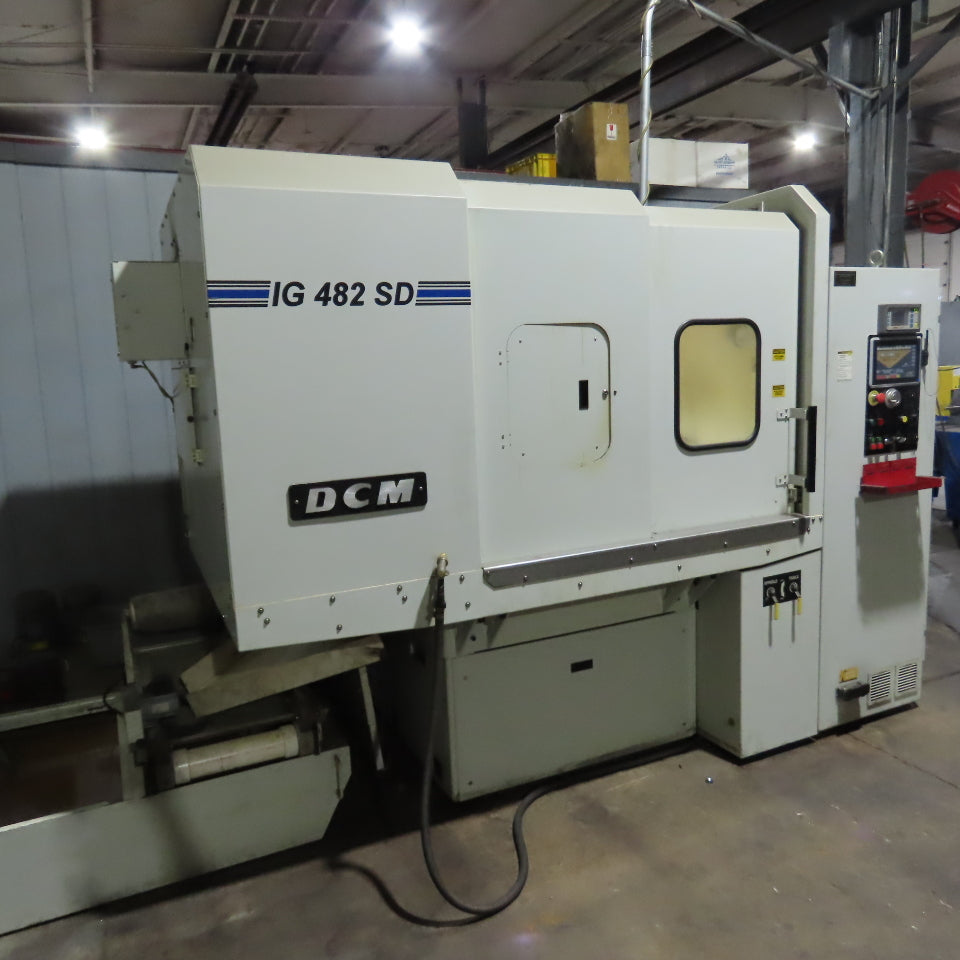

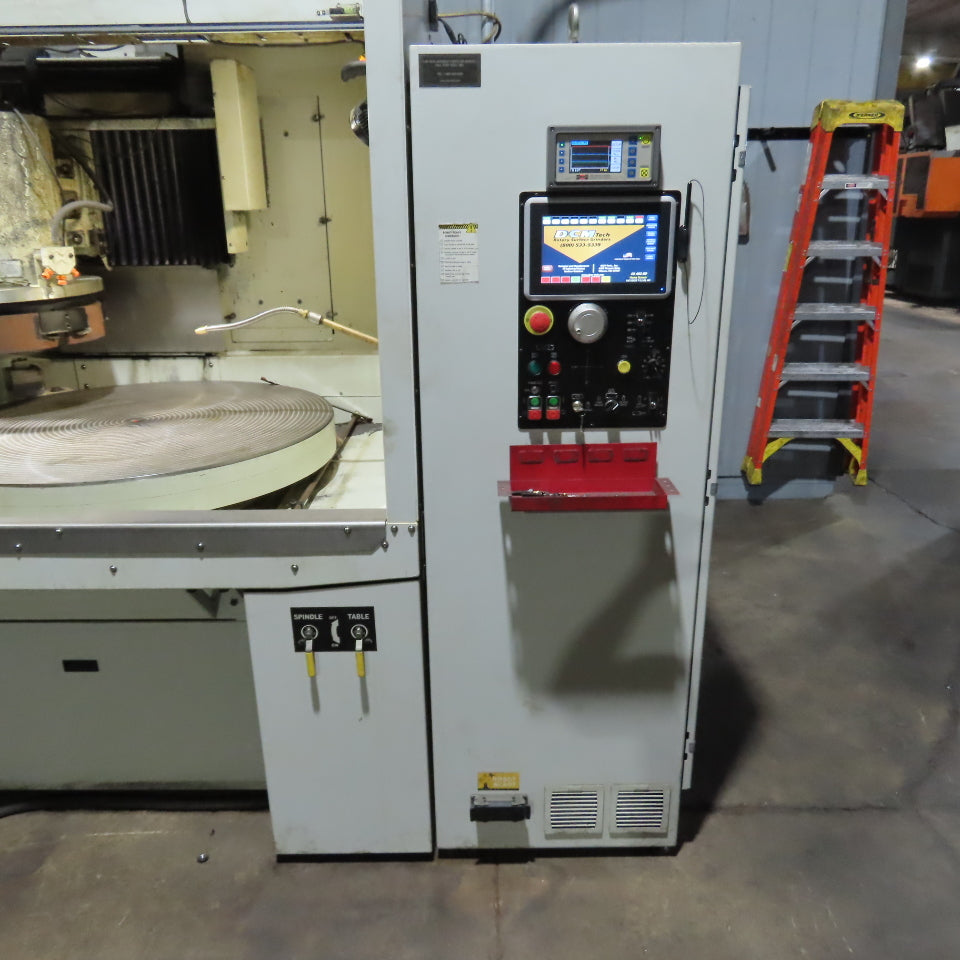

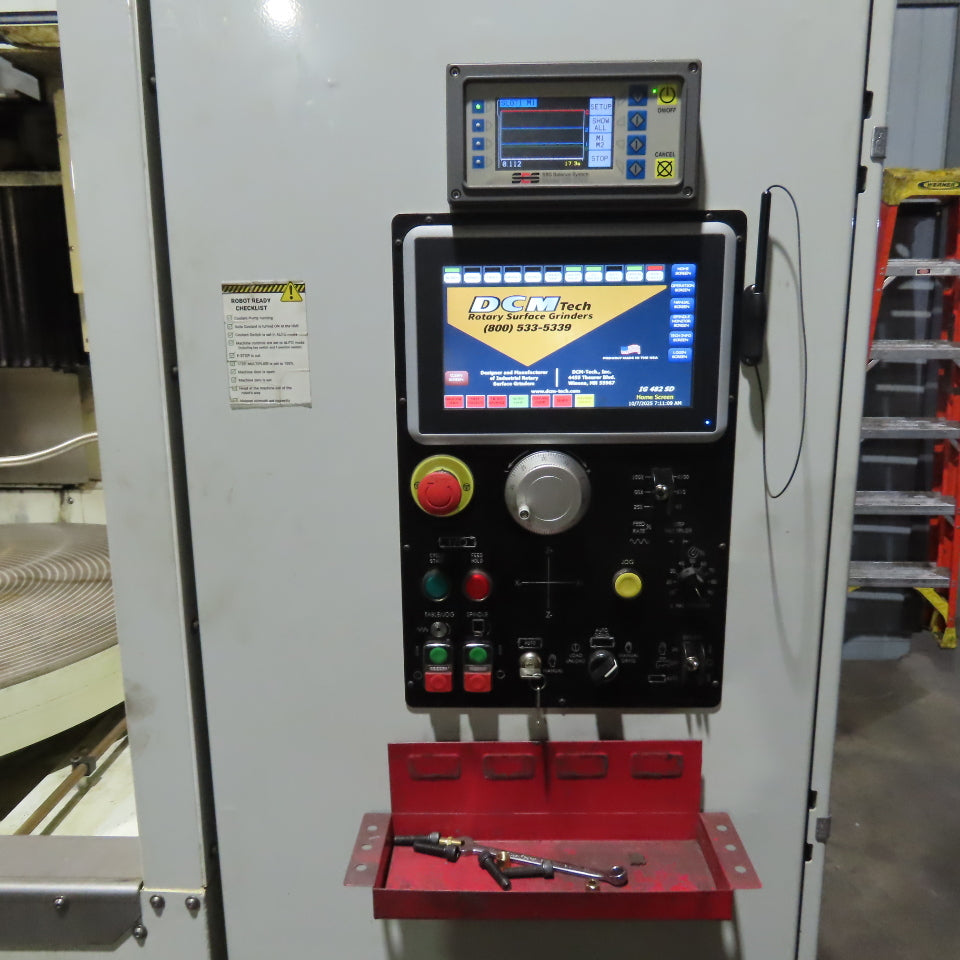

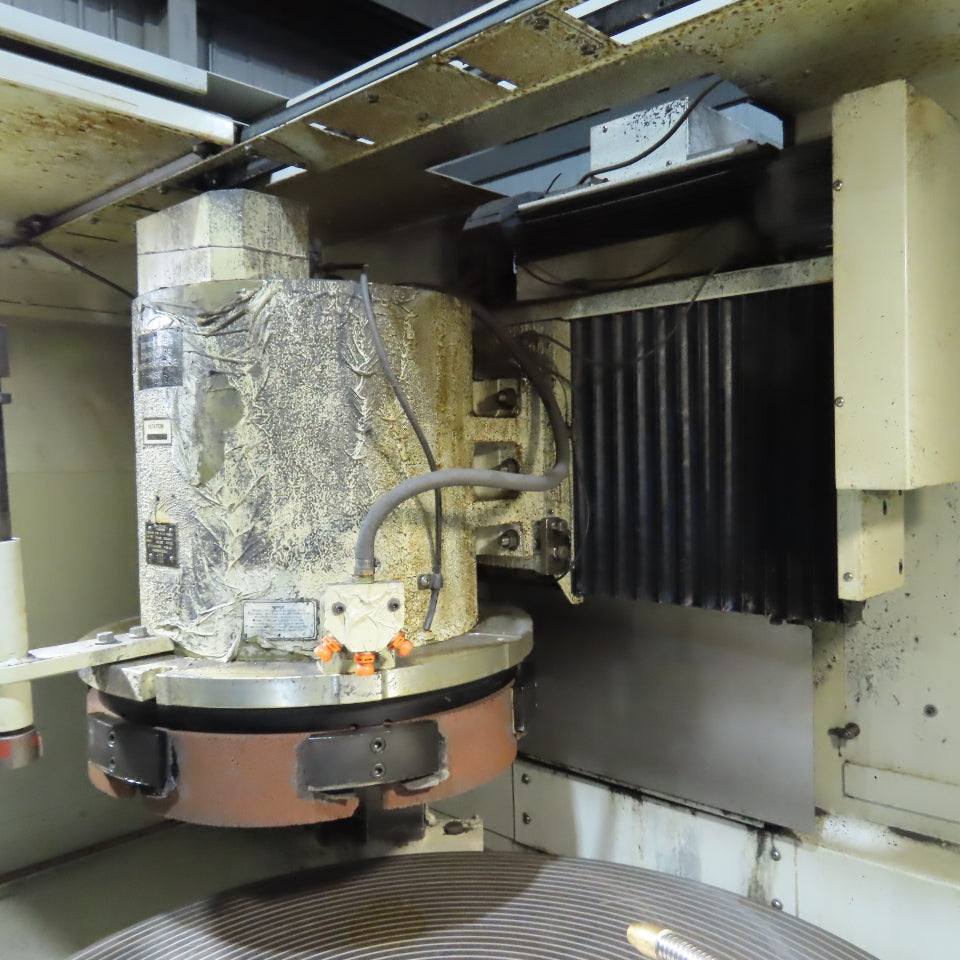

DCM IG 482 SD 48" x 12" Rotary Surface Grinder W/Auto Dresser & Robot Ready 460V

DCM IG 482 SD 48" x 12" Rotary Surface Grinder W/Auto Dresser & Robot Ready 460V

Questions? Contact support.
Purchase Information
$277,875.00 USD
$277,875.00 USD
Shipping calculated at checkout.
  • Machine is currently offsite still under power and can be seen in operation by Appointment Only.
  • Like new condition with only 180 spindle hours

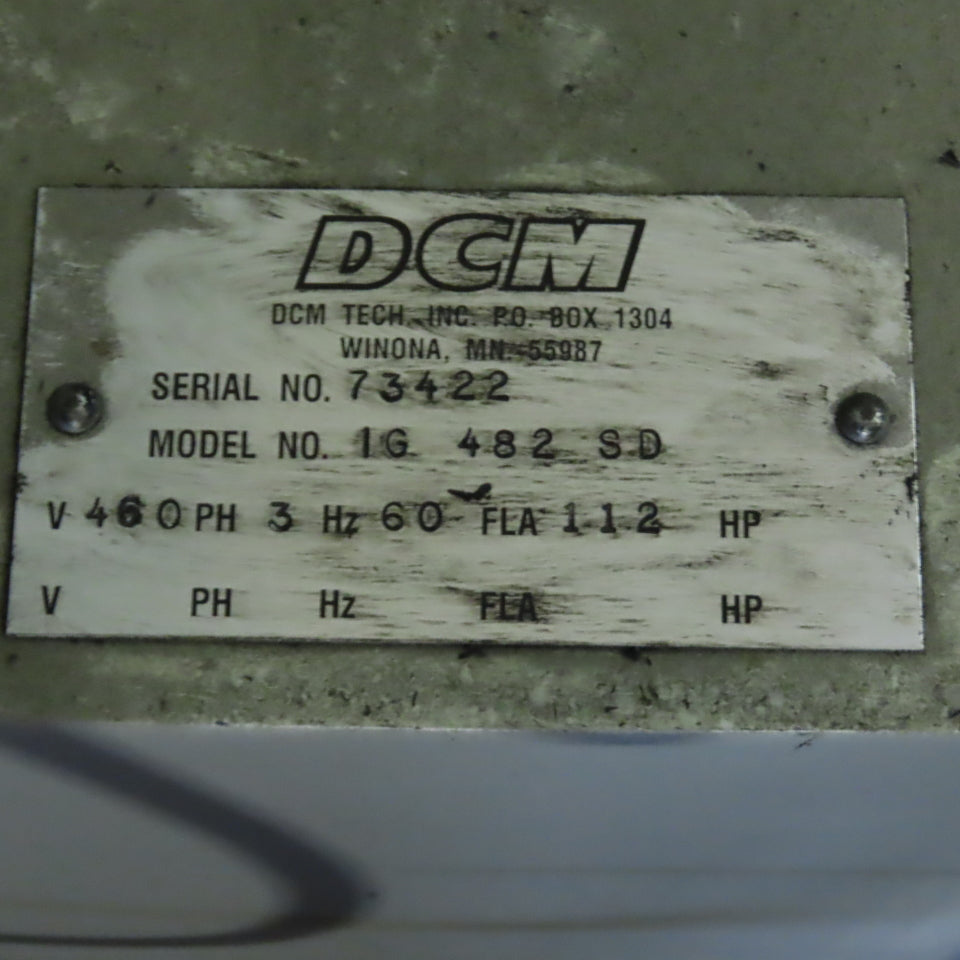

  • Model Number : ID 482 SD
  • Serial No. 73422
  • 460V Only 3-Phase 60 HZ 112 FLA

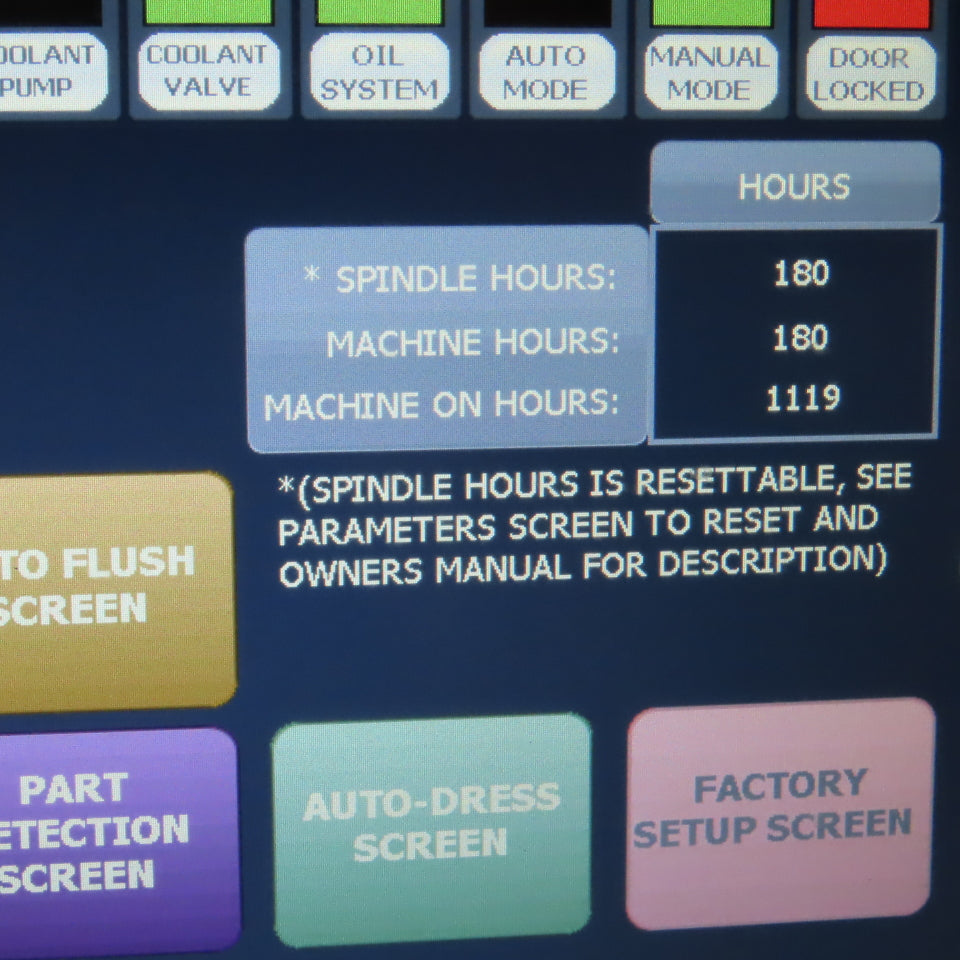

    • Very low spindle hours at 180 hr.
    • Machine hours 180
    • Machine on hours: 1119
    • Work piece swing 52"

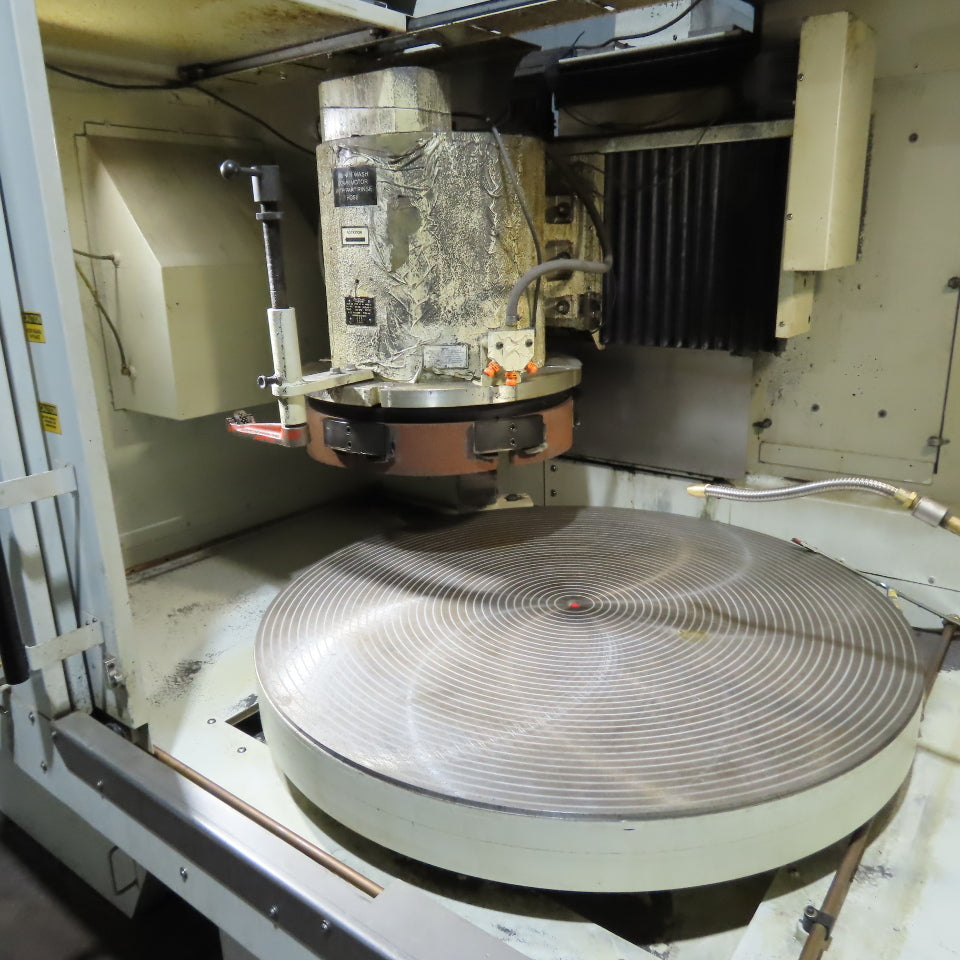

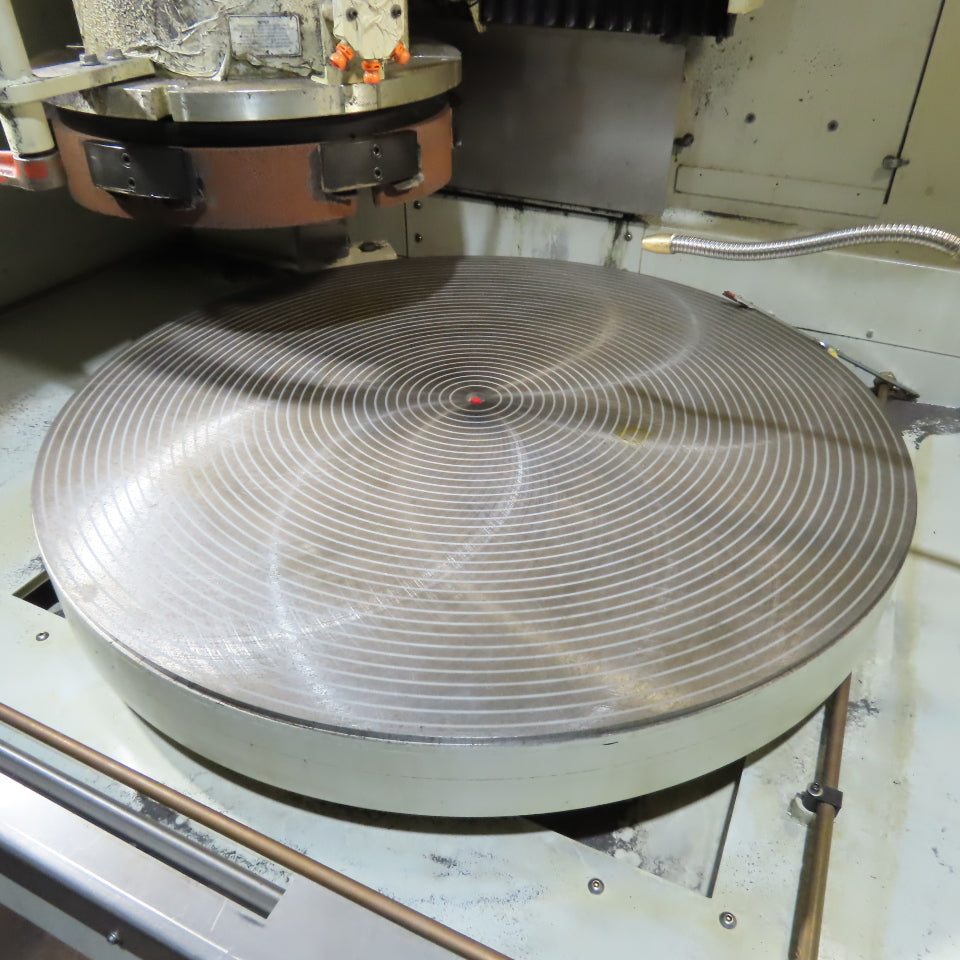

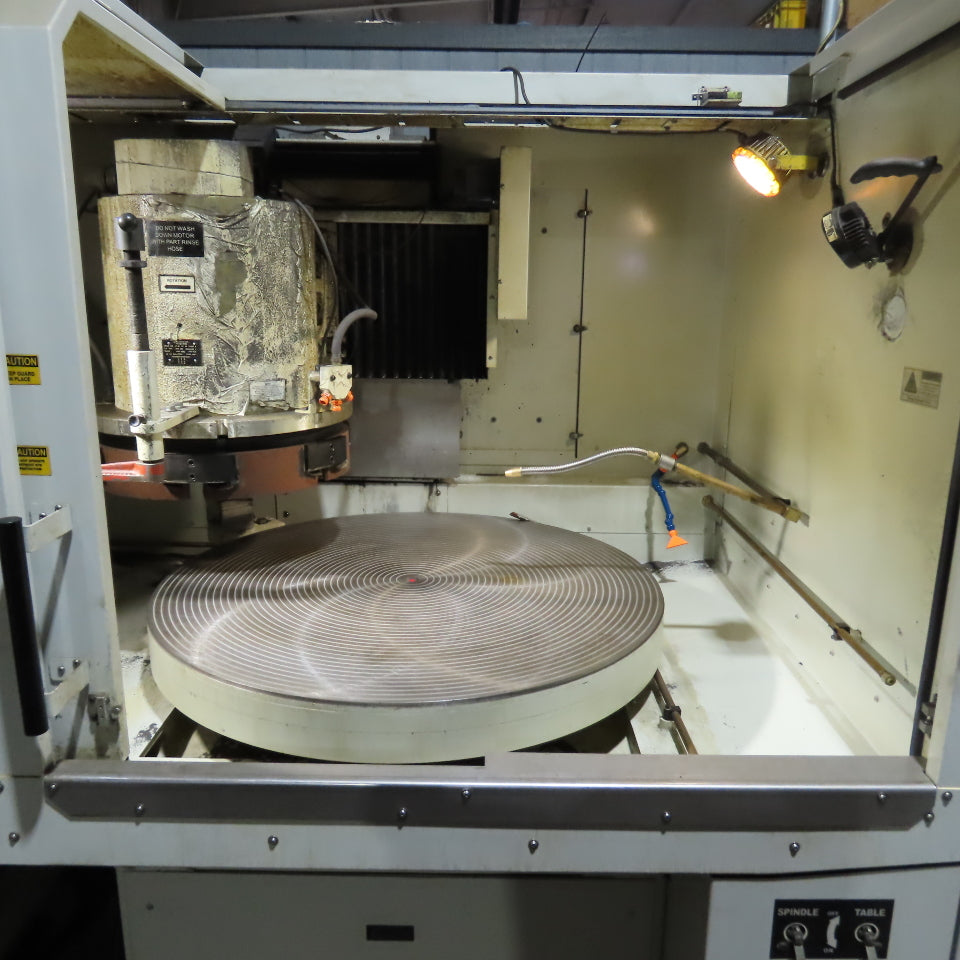

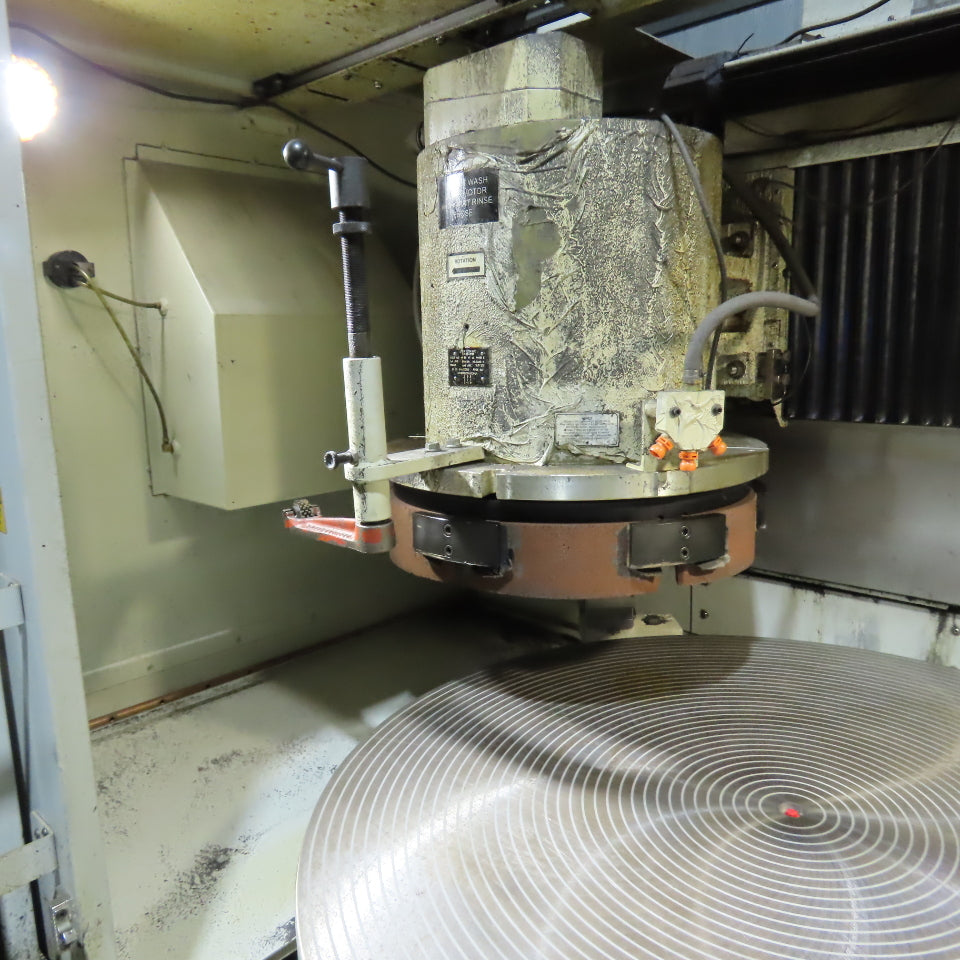

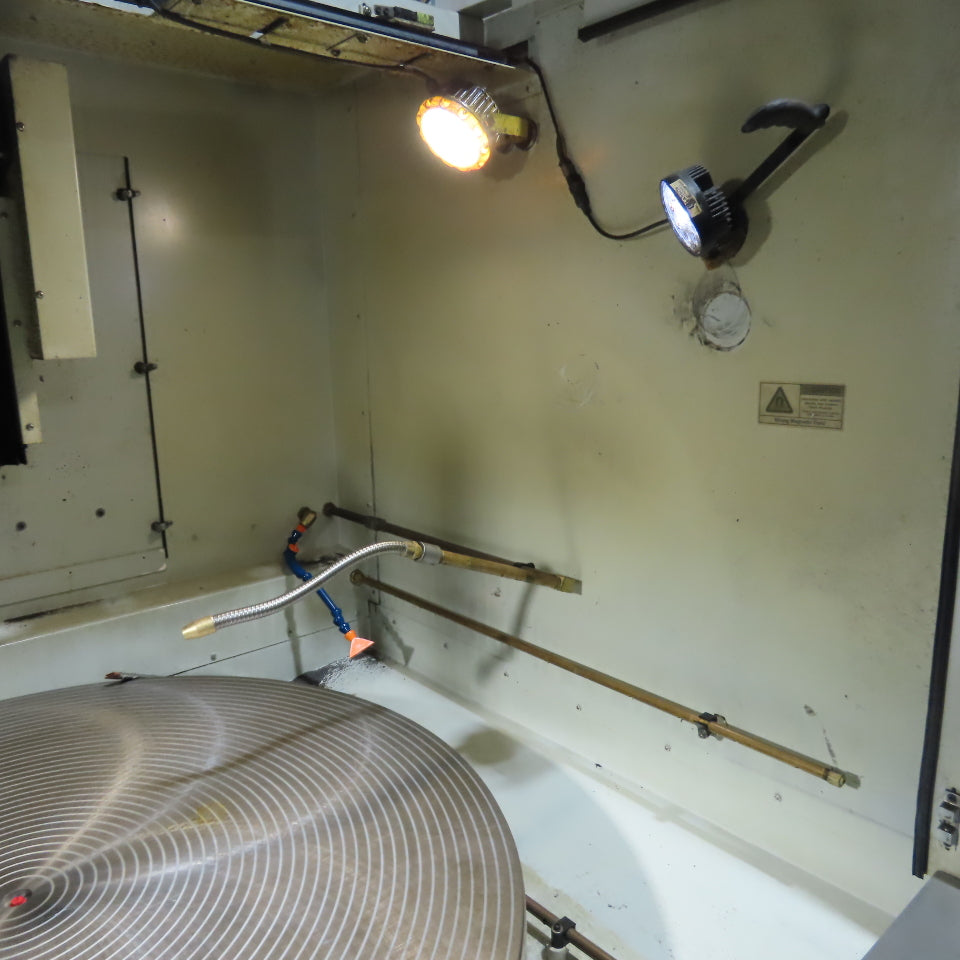

    • Table diameter 48".  Chuck/table is electromagnetic with auto demag cycle

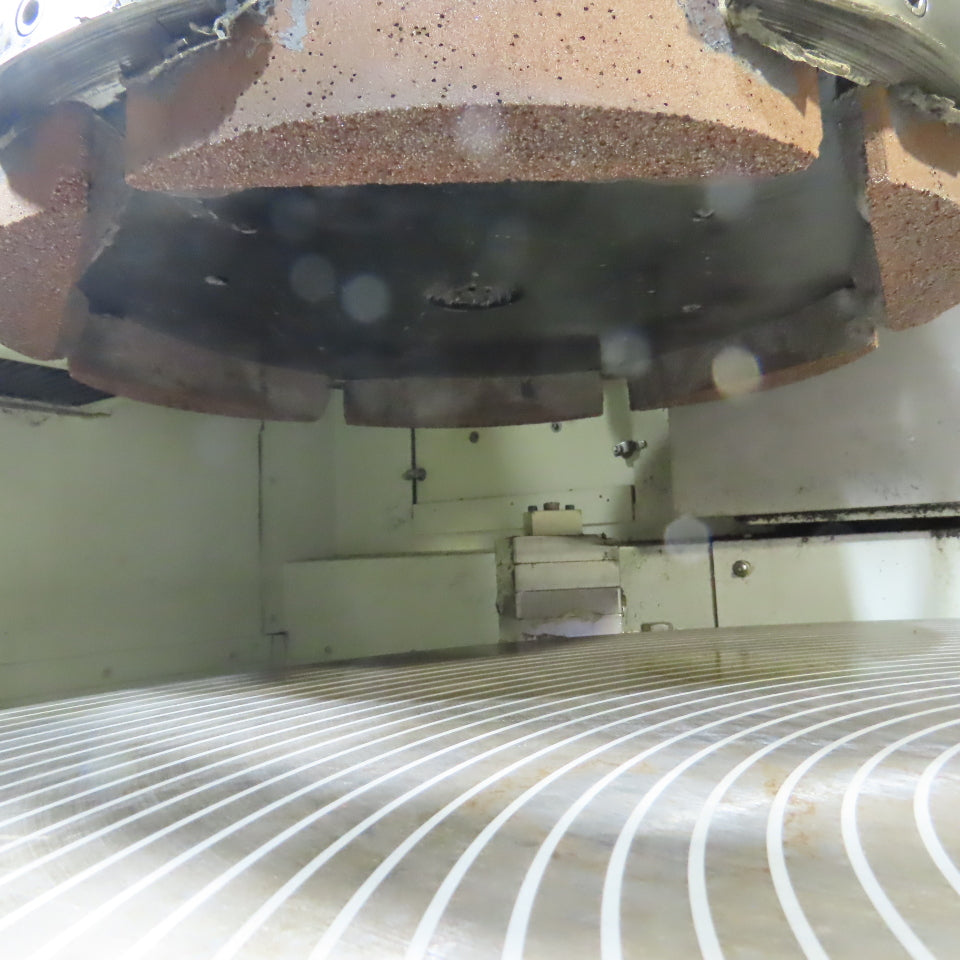

    • Grinding wheel diameter 26"
    • Worktable to Grinding Wheel Clearance with New 4” Wheel  : 11”
    • Maximum Horizontal Spindle Traverse (from center of chuck) 15.75”

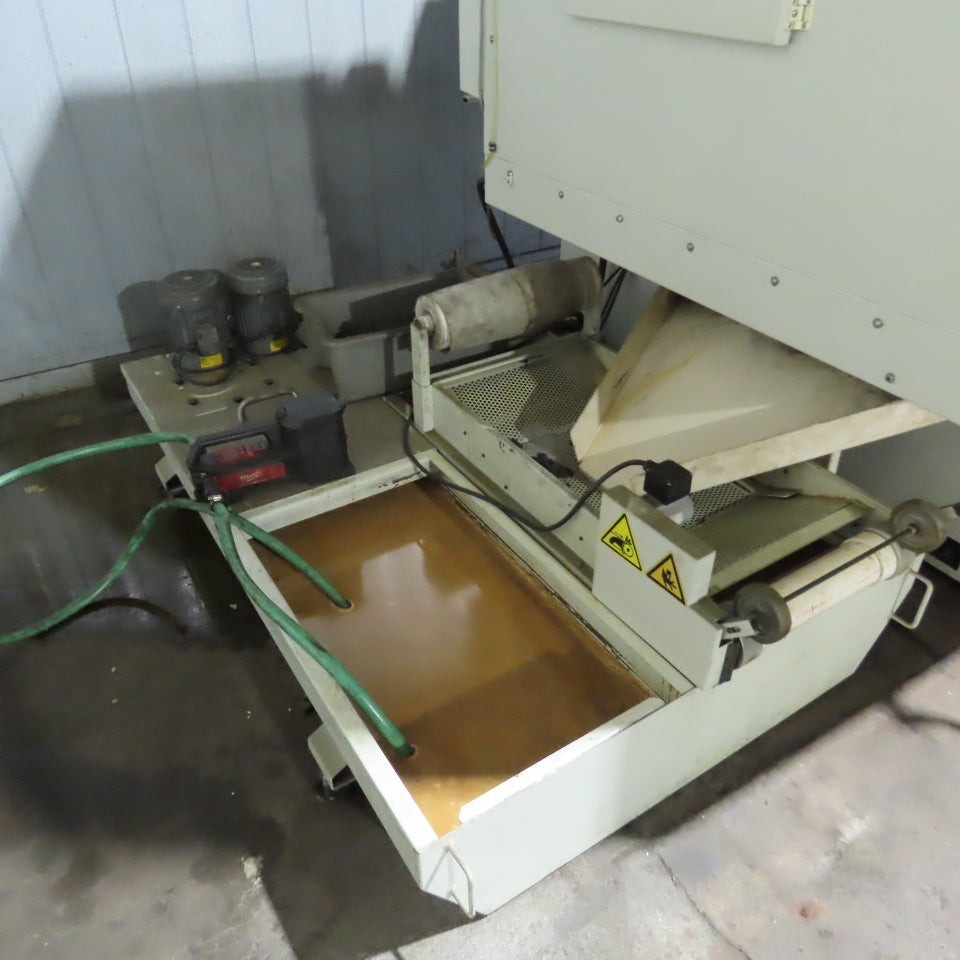

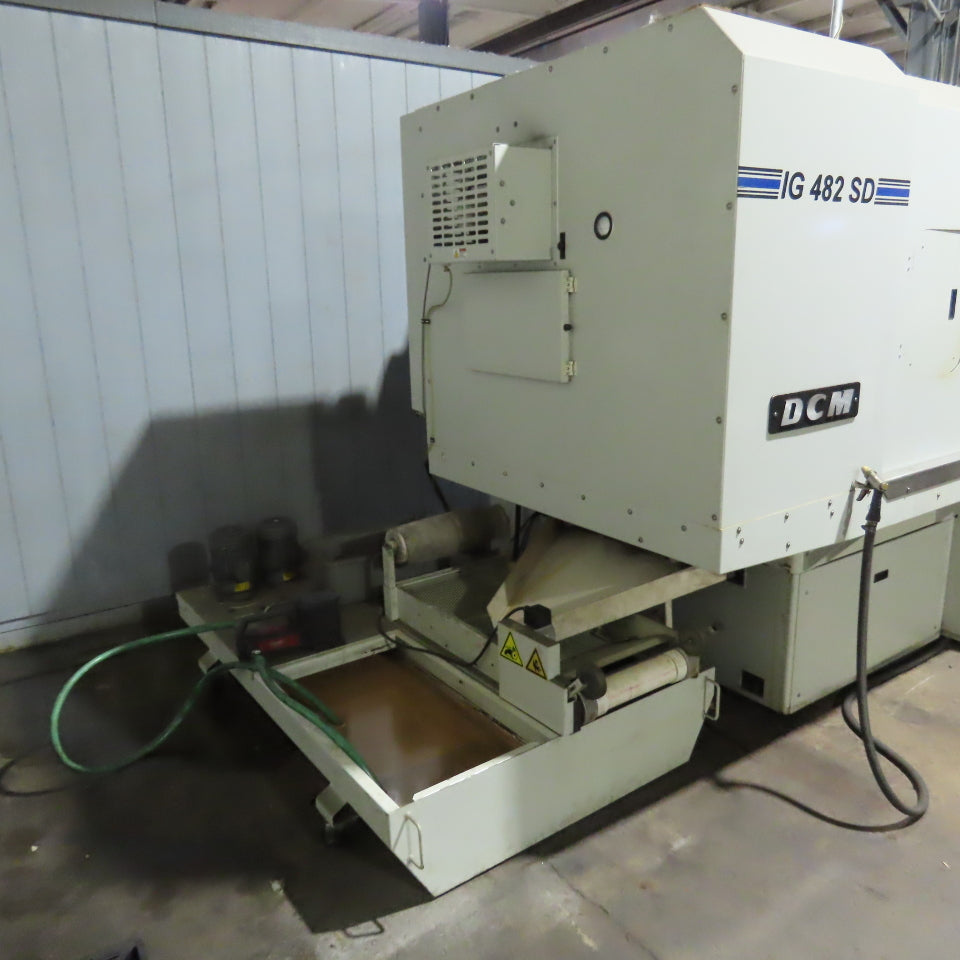

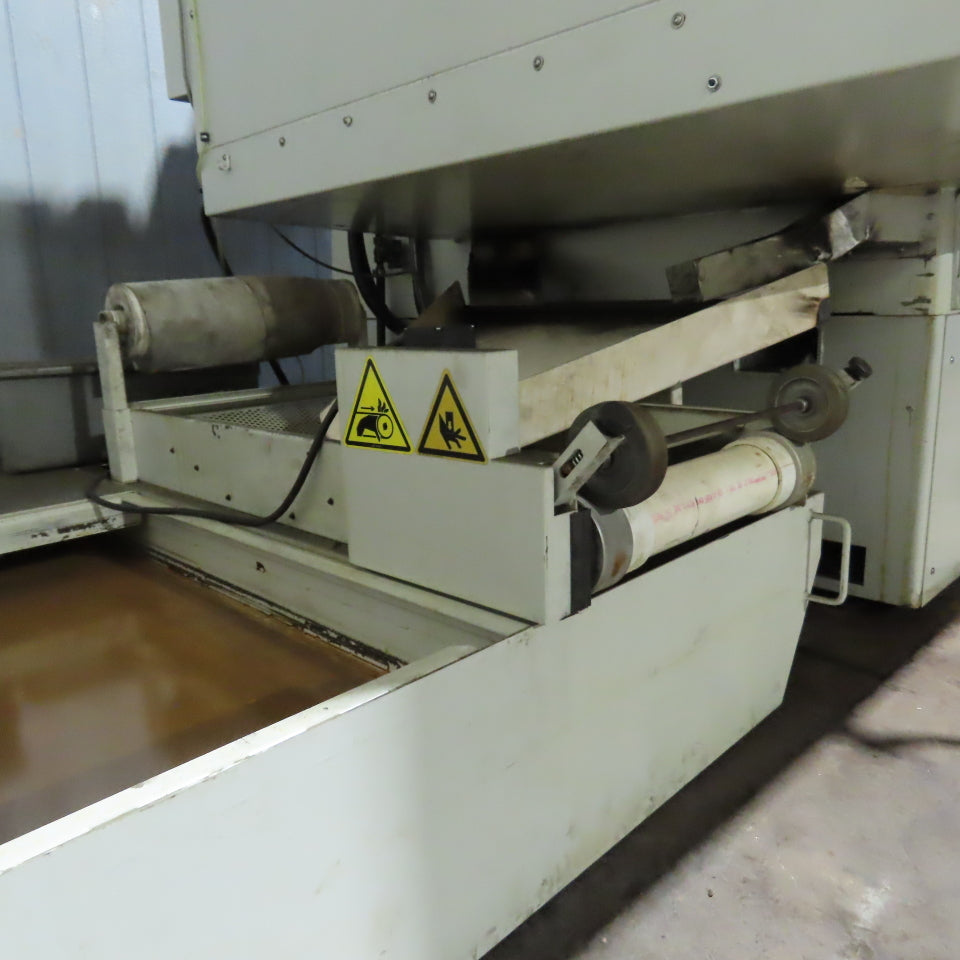

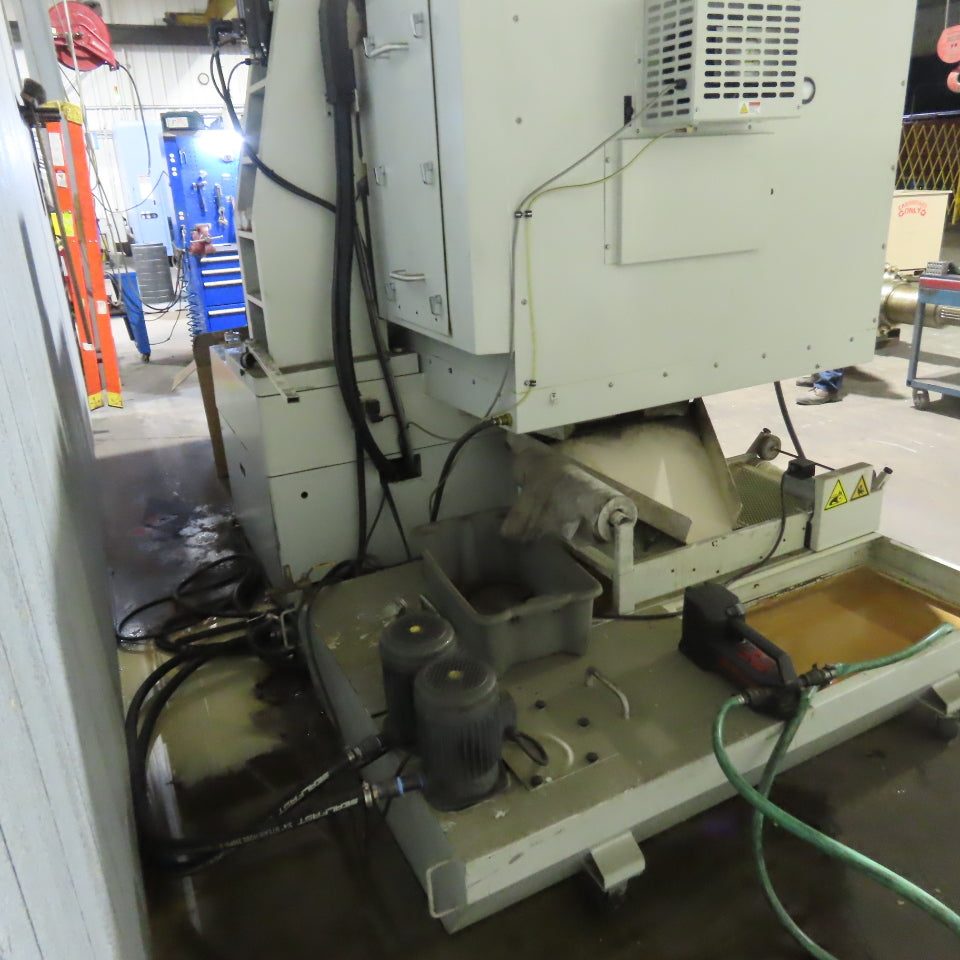

  • Coolant System Capacity 60 Gal
  • Floor Space Required (with electrical door clearance), plus operator and load/unload space 12’7” W x 9’2” D x 87” H
  • Net Weight 14,500 lbs.
  • Spindle (3 Phase) 200-1200 RPM 50 HP
  • Table (3 Phase) 10-70 RPM 3 HP
  • Coolant Pump (3 Phase) 45 GPM 1/2 HP
  • Vertical Head Traverse 0-100 IPM 1 1/2 HP
  • Horizontal Traverse 0-50 IPM 3/4 HP
  • The machine was purchased brand new and used for testing. It was never put into production. The new purchase price was over $460,000.
  • The machine is being sold with no return. The machine will be loaded on your truck at no charge or we can set up the shipping. Contact us for a quote!
SKU 271276
Weight 14481.06 lb
Brand DCM
Model IG 482 SD
MPN N/A
Condition Used
Country of Manufacture United States
Warehouse Storage Location Middlebury, IN
Items in Lot 1

Low stock: 1 left
