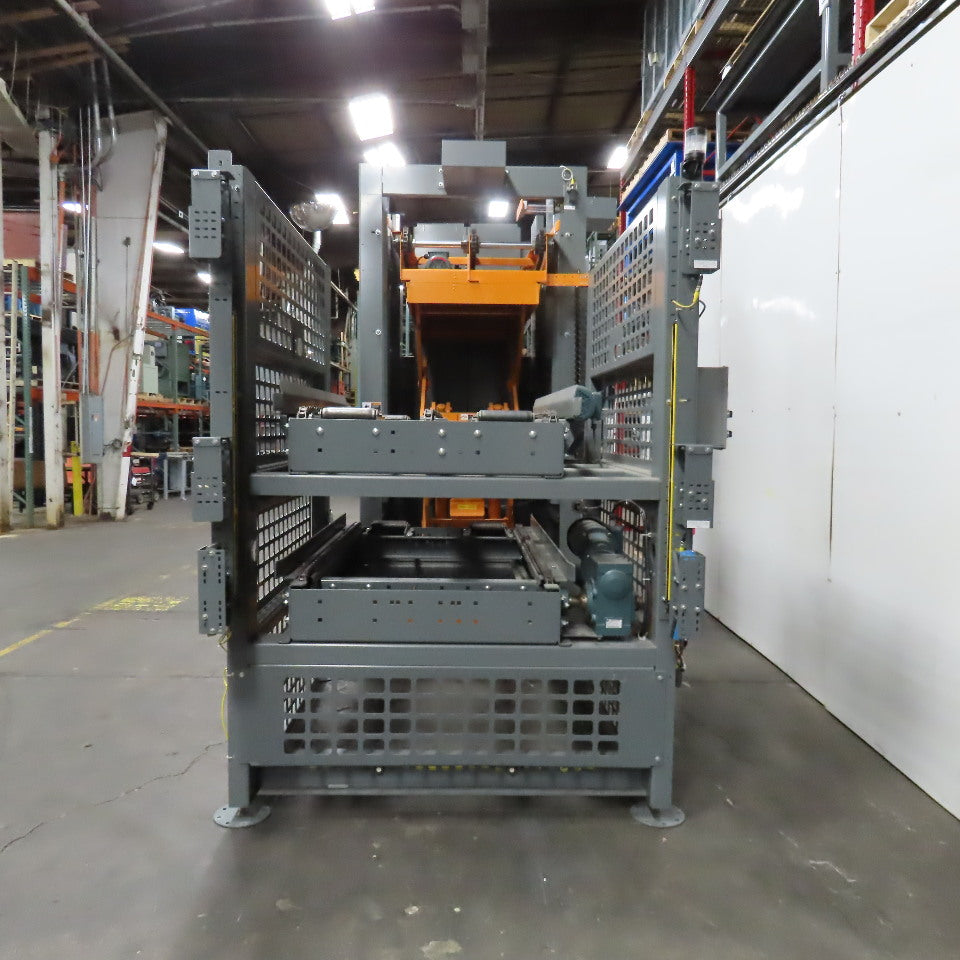

Automated High Infeed Palletizer W/ Pallet Feeder Discharge Conveyor 40" Pallet

Automated High Infeed Palletizer W/ Pallet Feeder Discharge Conveyor 40" Pallet

Questions? Contact support.
Purchase Information
$23,326.87 USD
$23,326.87 USD
Shipping calculated at checkout.

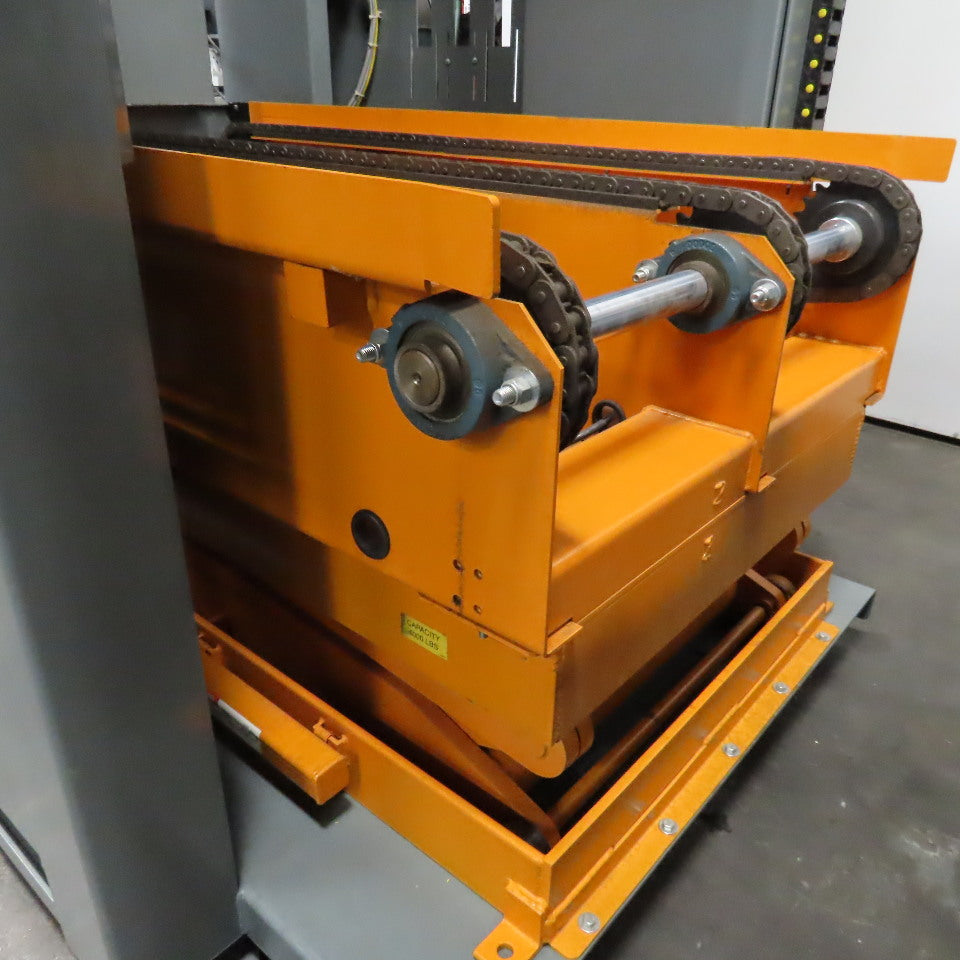

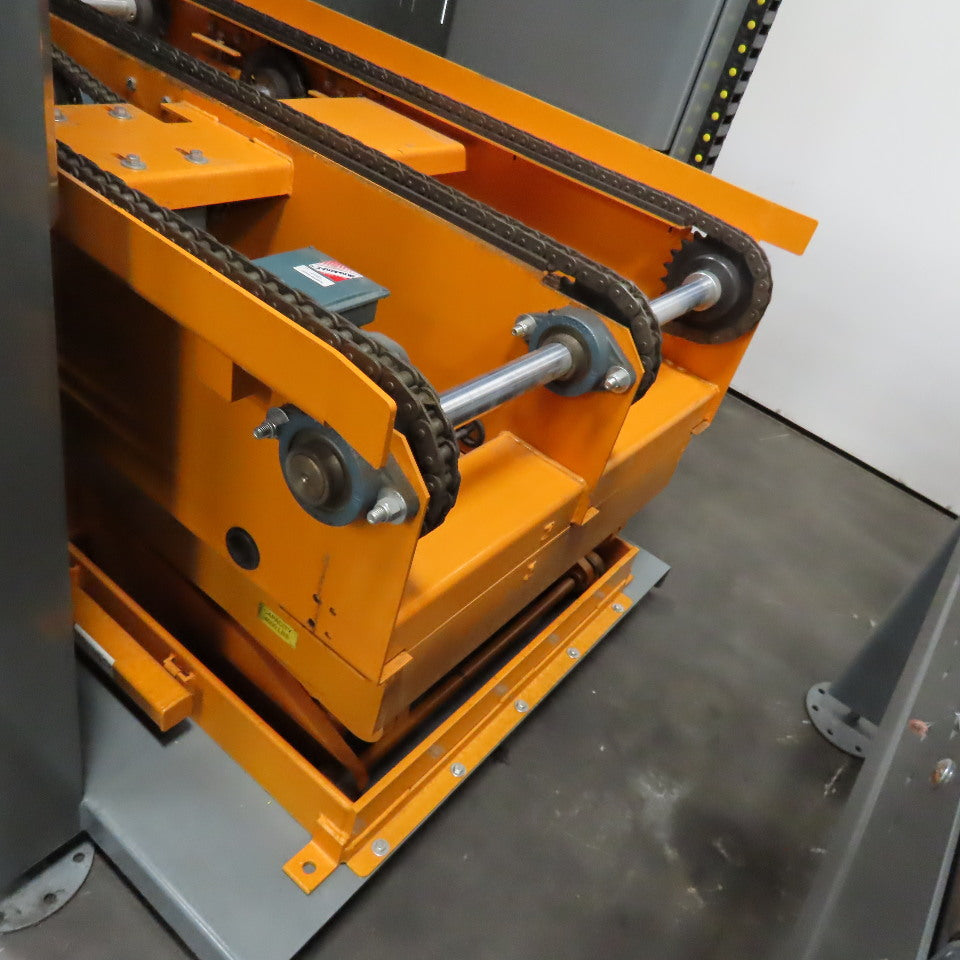

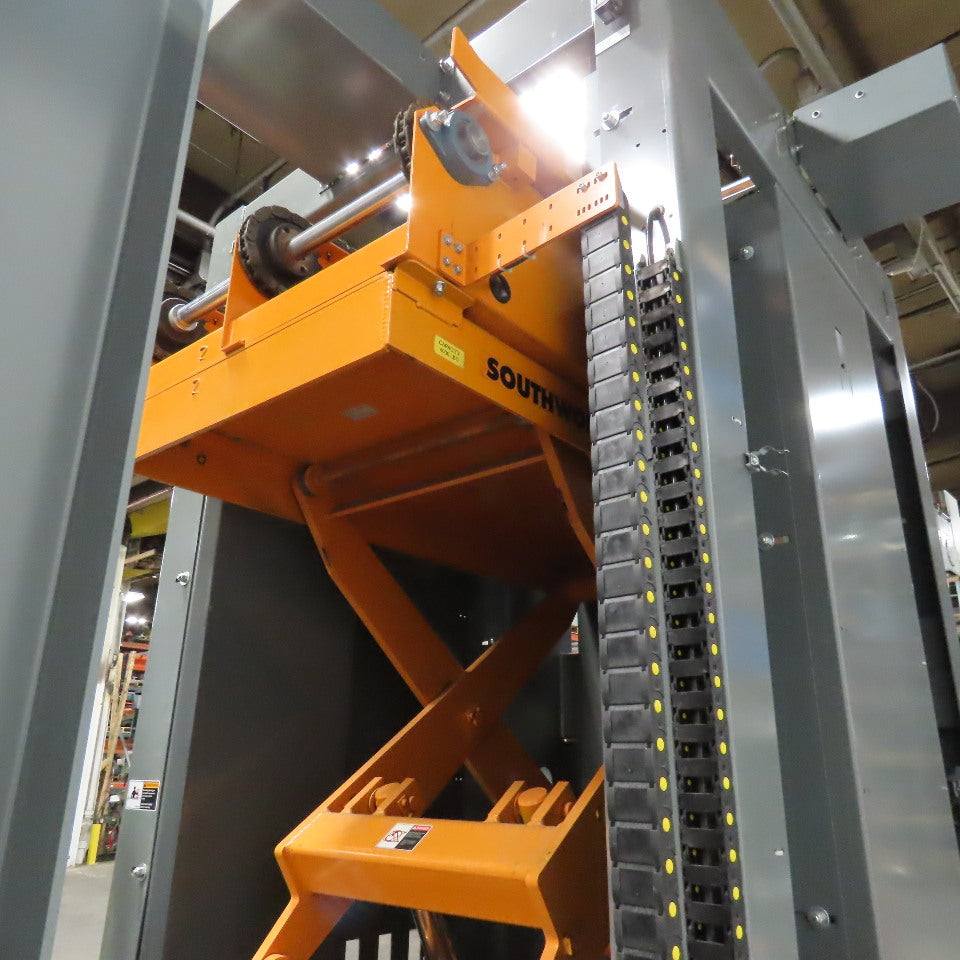

  • Southworth Lift LSH4-84  table 4000Lbs. With lift height of 9'
  • Tower Loading height is 126"
  • Top of tower has squaring cylinders operated manually or automatically.

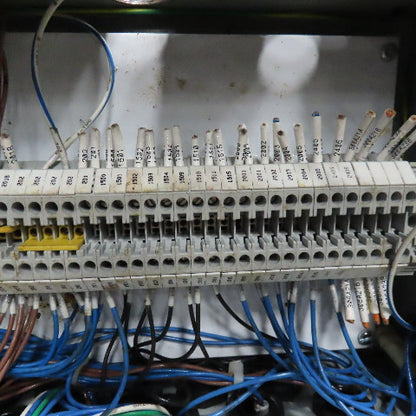

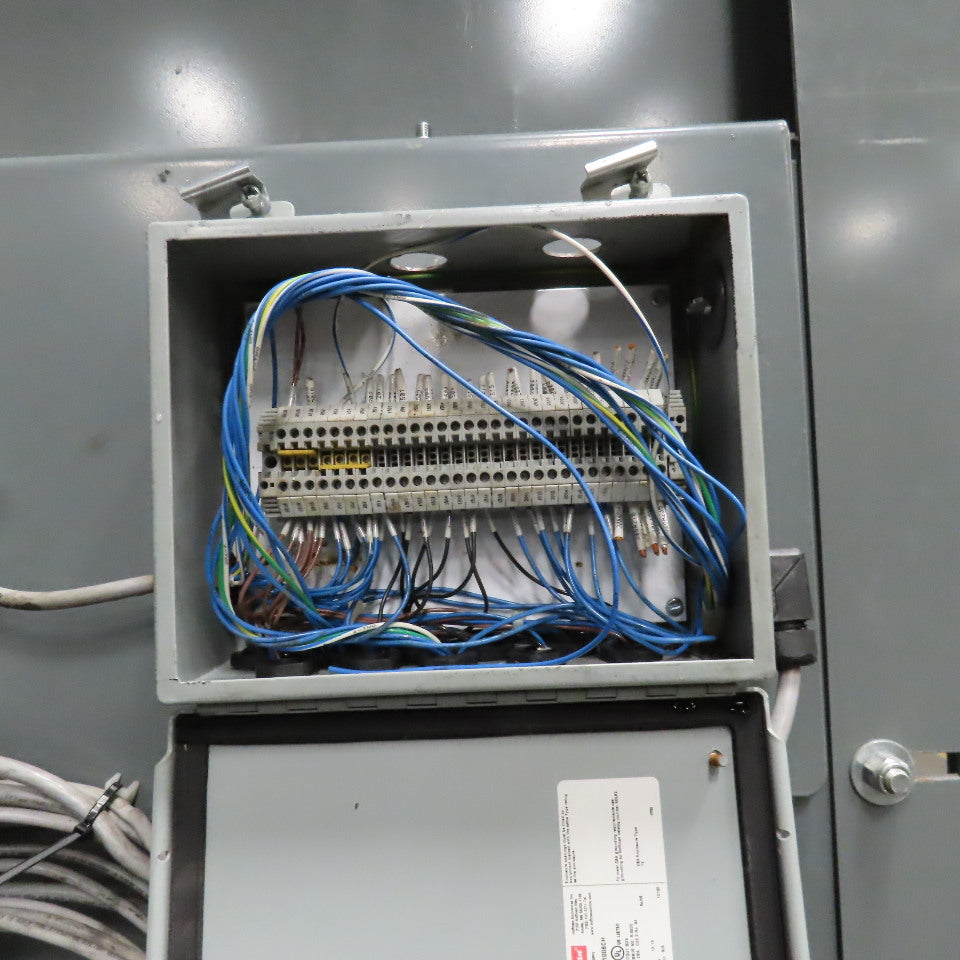

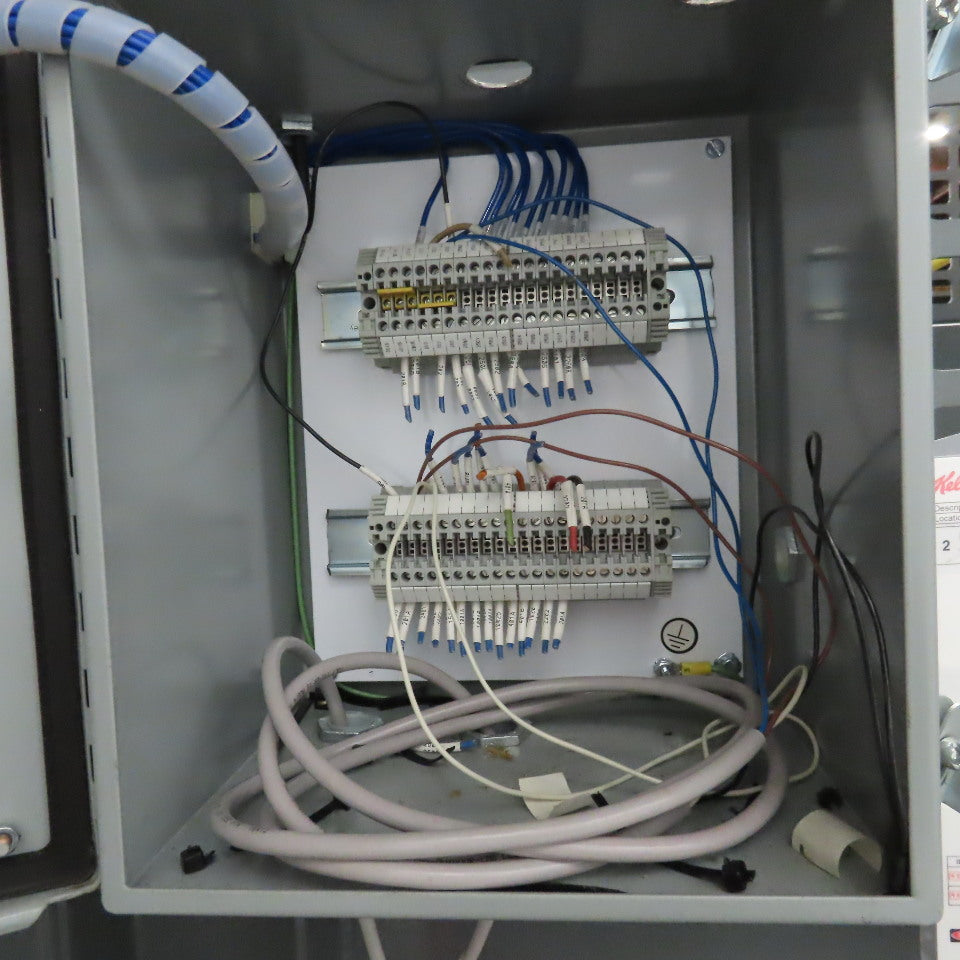

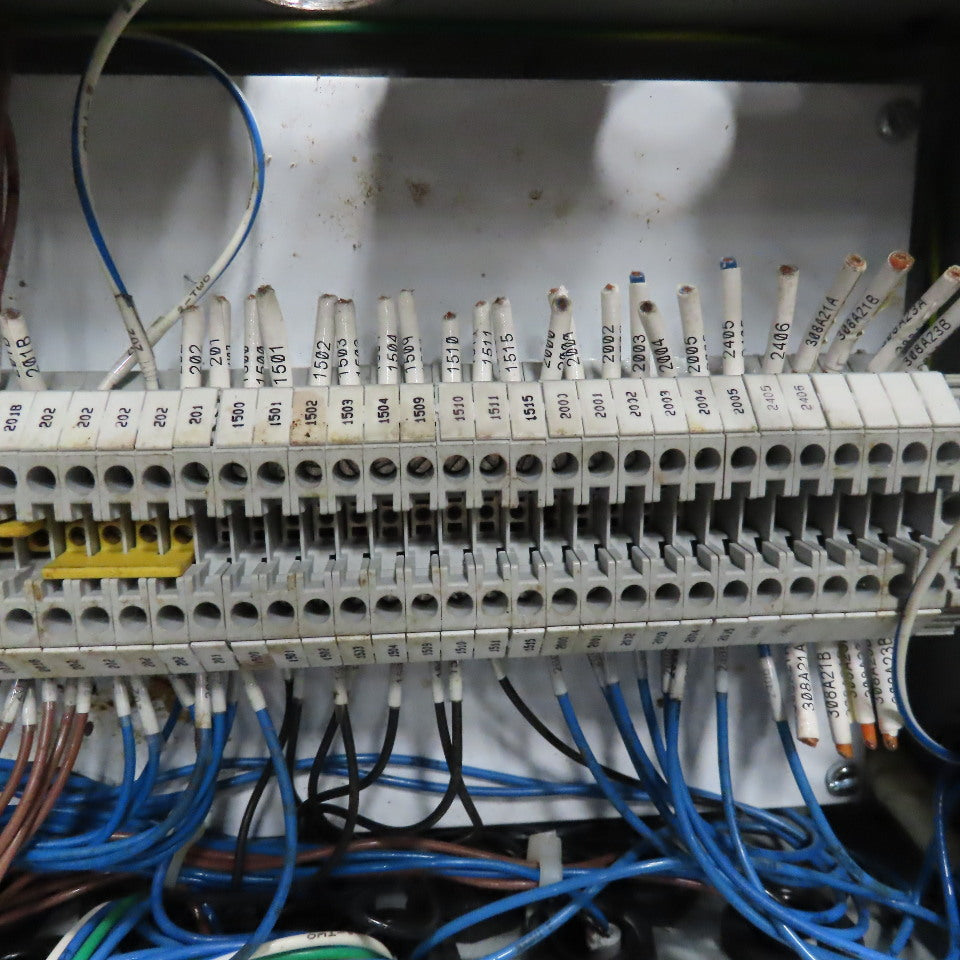

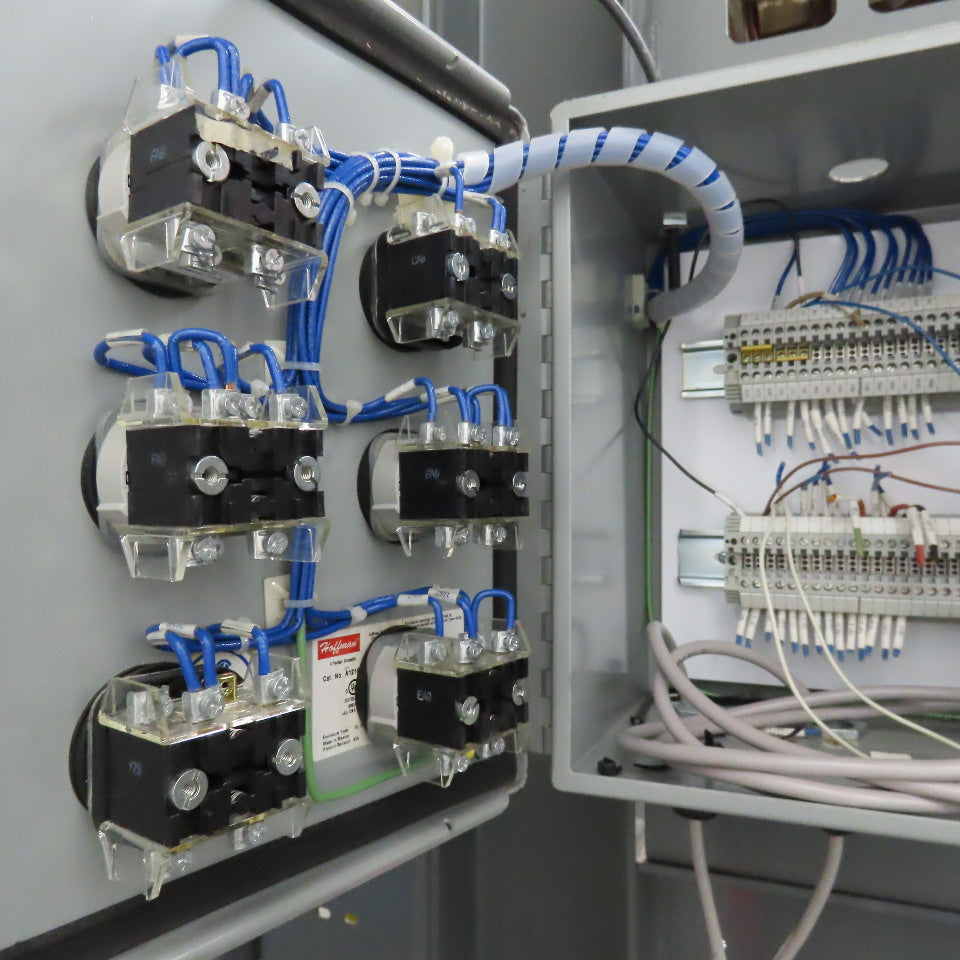

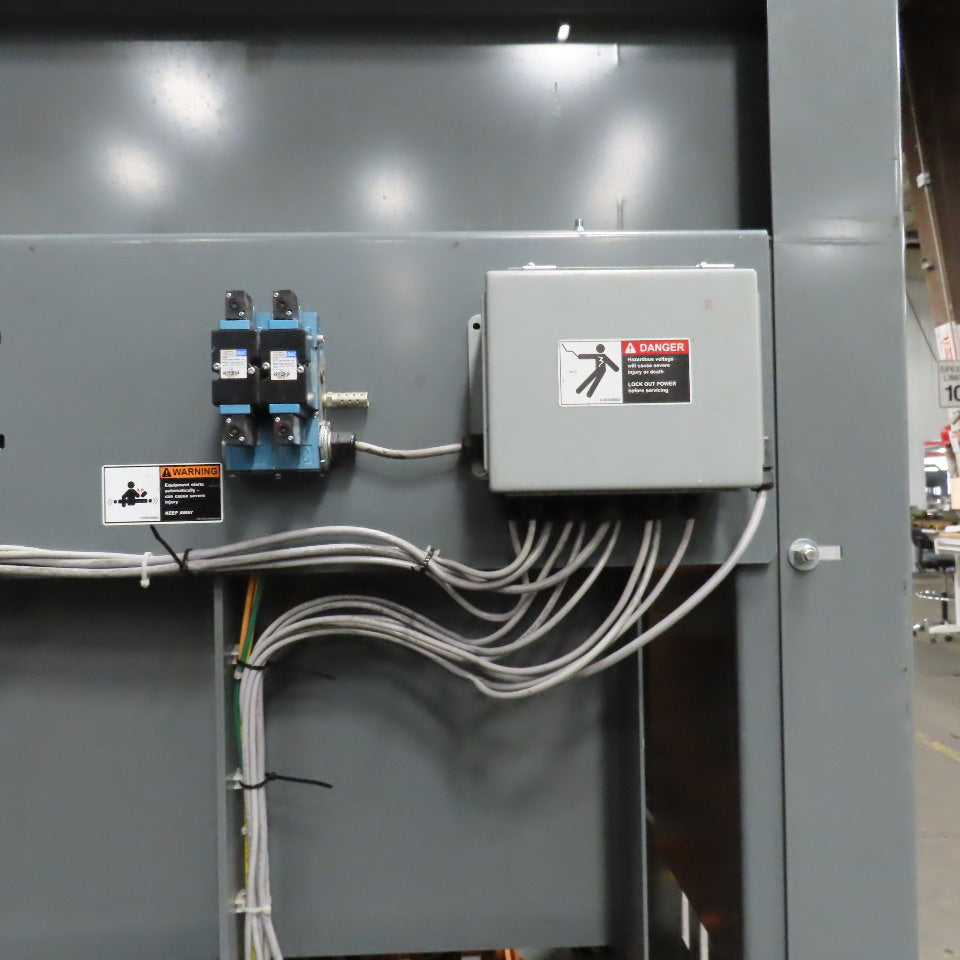

  • Controls for palletizer is on the pallet conveyor section, the wires are cut between the 2 and a wire diagram is unavailable
  • System will need PLC or integrated into system that can control both sections or could be converted into a stand alone, we are selling it as it sits.
  • Very little use to this system
  • Accepts pallets 40" wide with a small amount of side adjustments
  • 2 Level Pallet Loader and unloader, in with an empty and out on top with full pallet
  • Pallet filled from top, lift table lowers to conveyor to discharge to another system

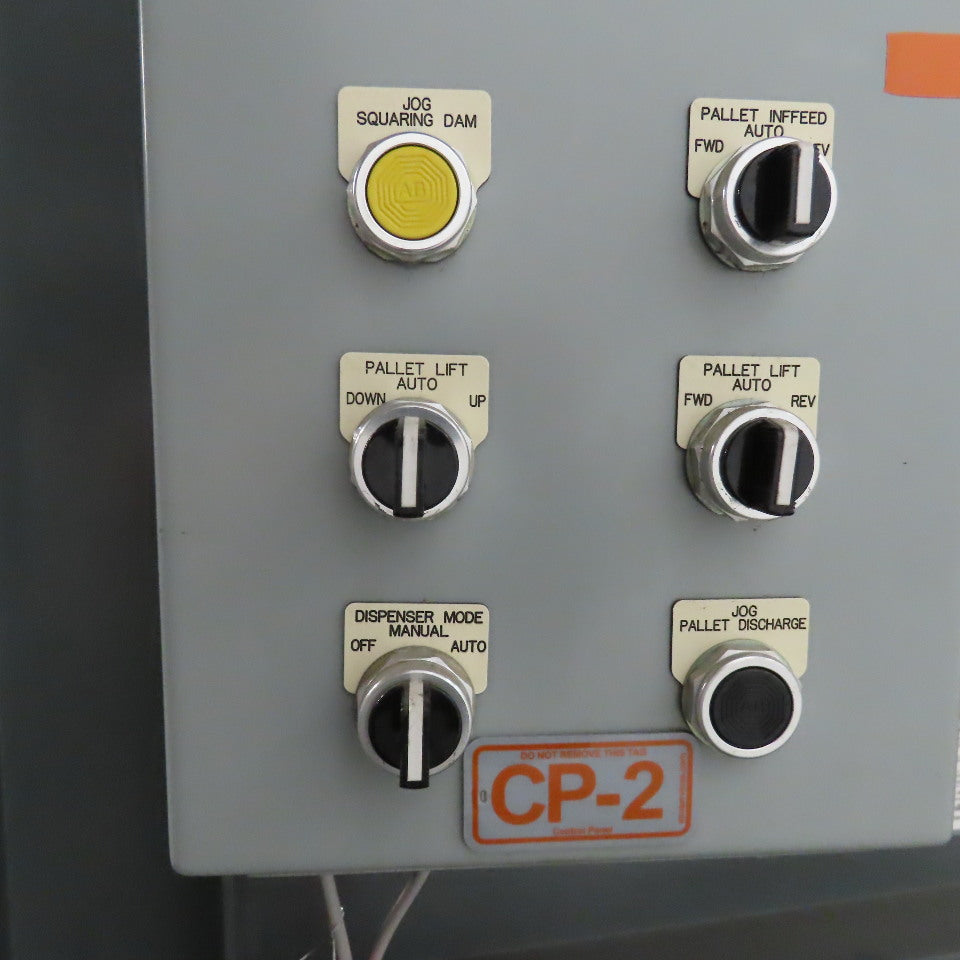

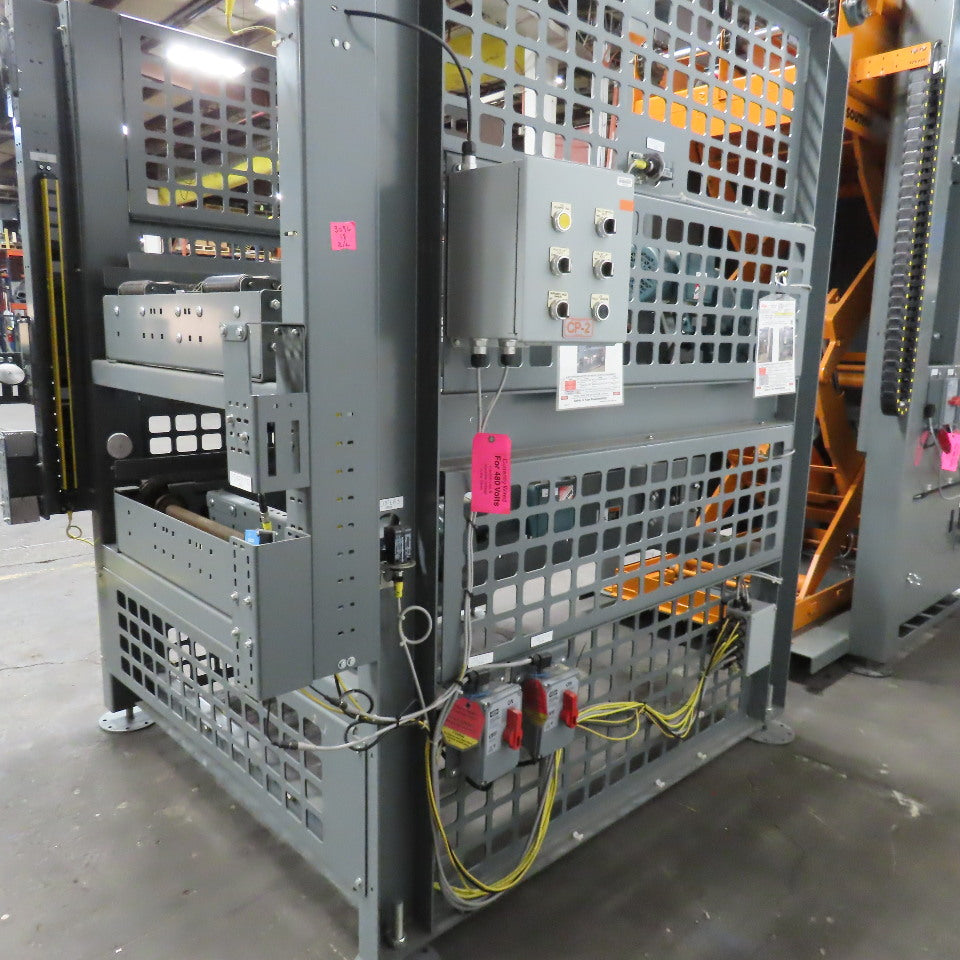

  •  Both units go together, the pallet feeder discharge section has the controls for the top tier

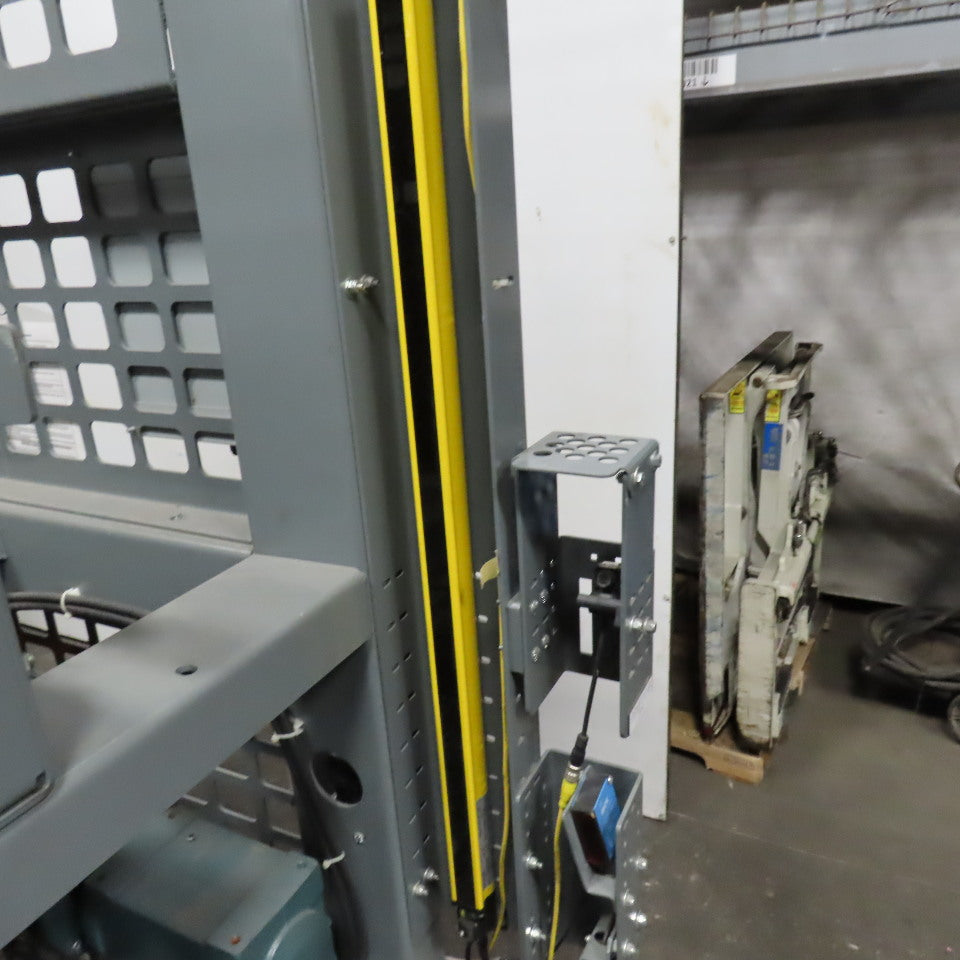

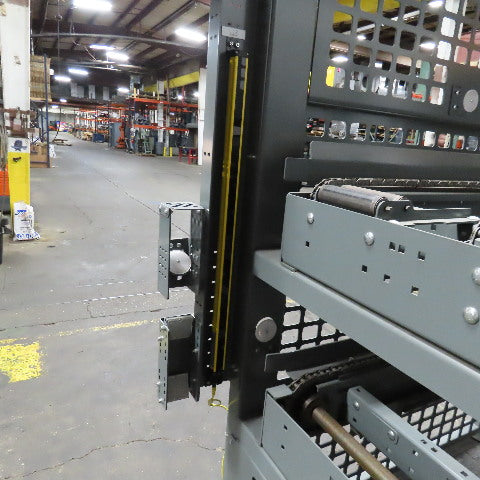

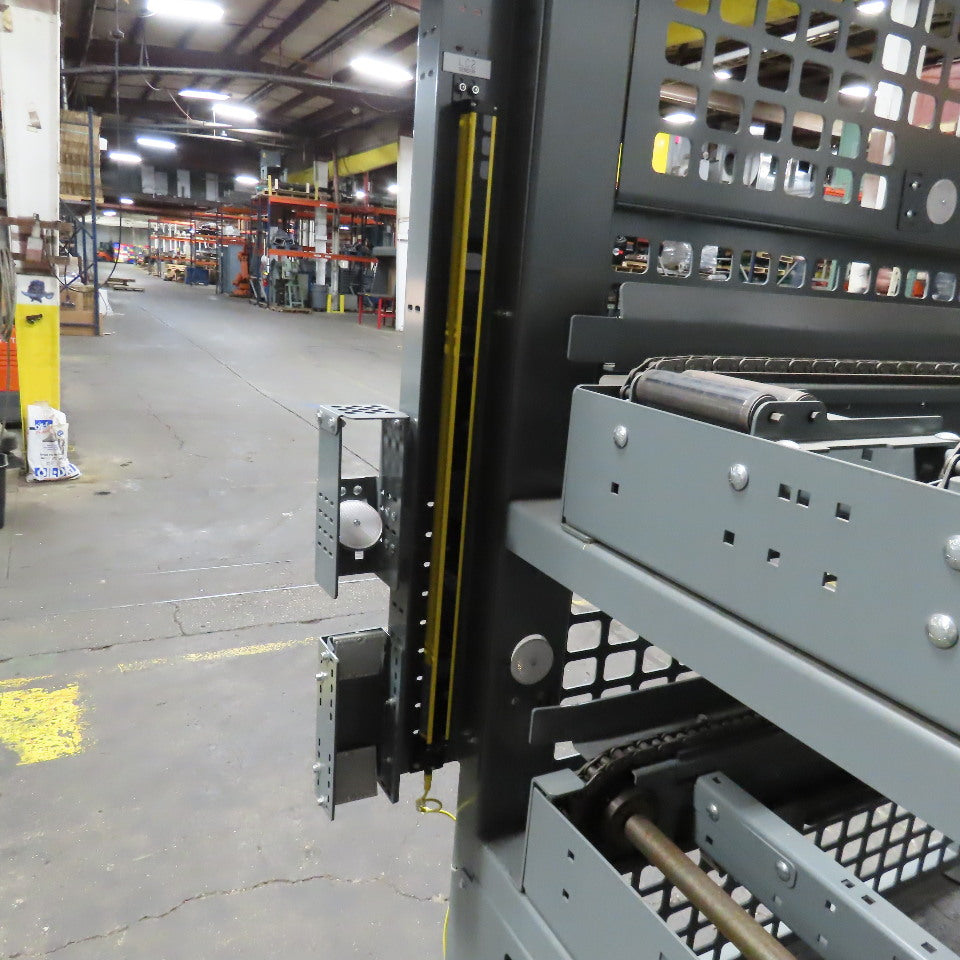

  • Many photo eyes and safety features

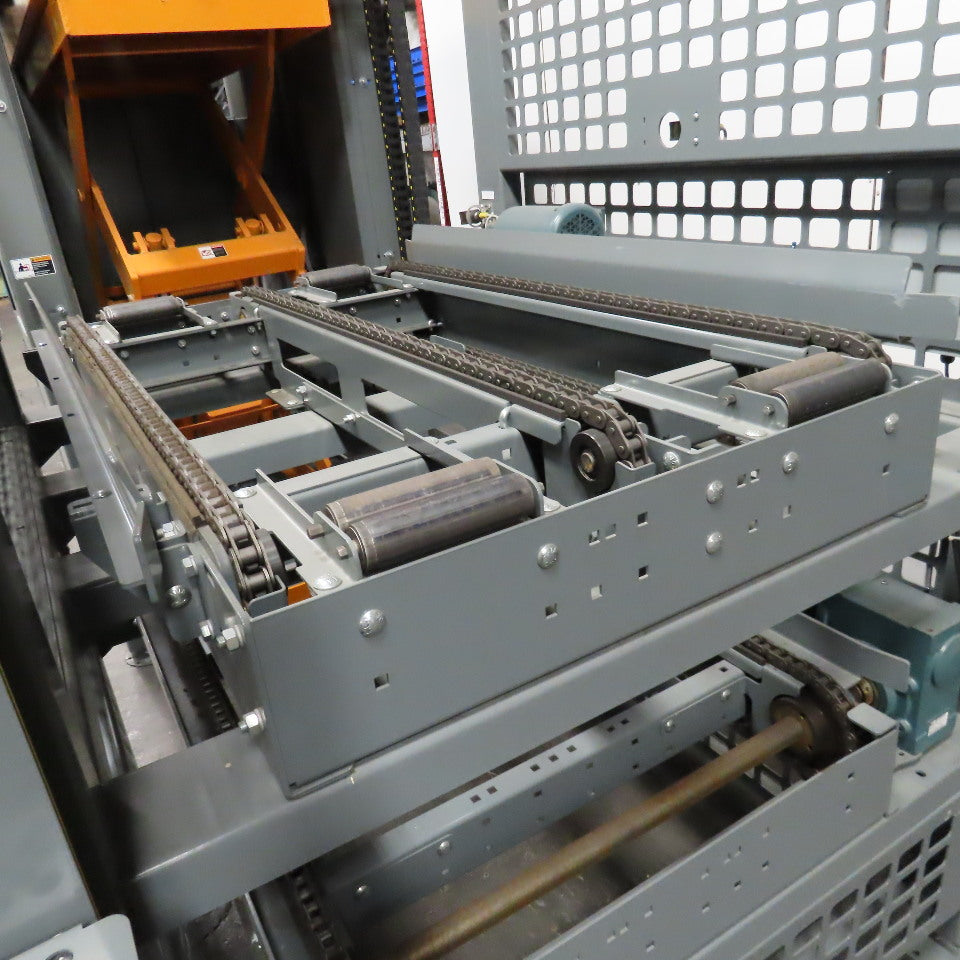

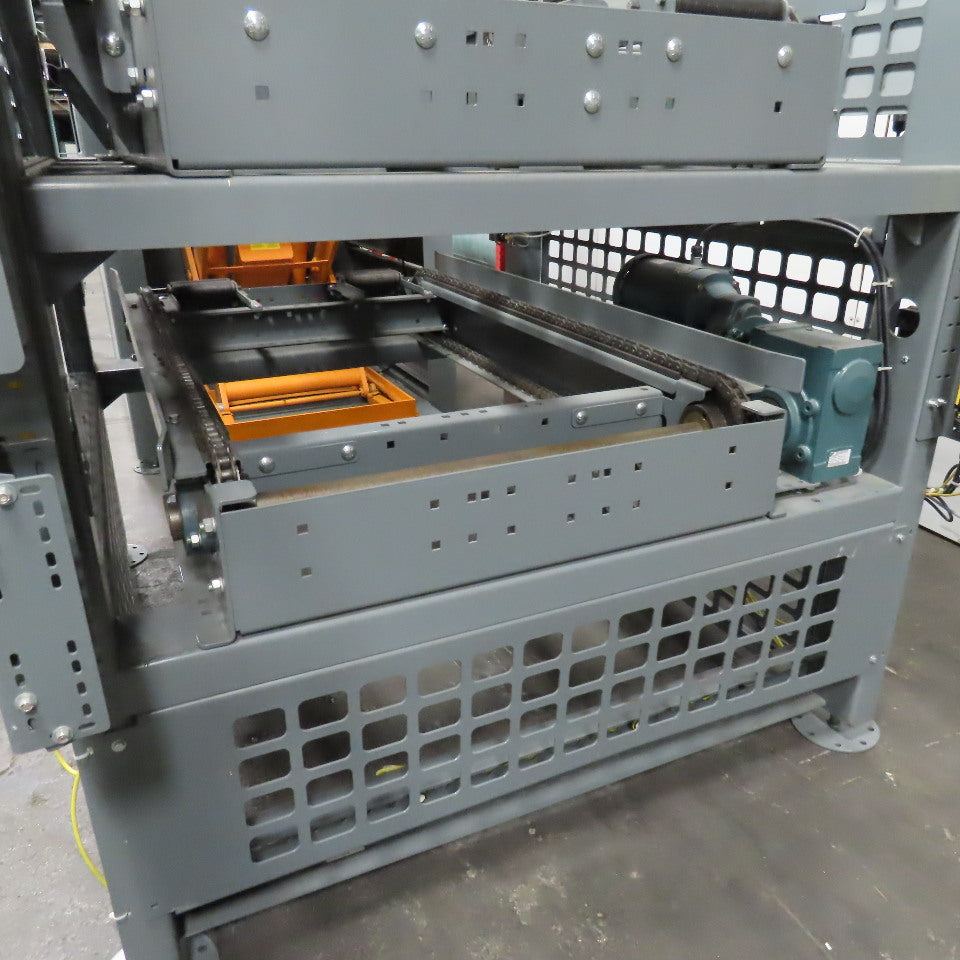

  • Without the motors connected to VFD the speeds are set at 15 FPM for the chain load/discharge on the conveyors
  • Unit is 208-230/460V 3Ph with the 3 motor being 1Hp each
  • The pallet loader discharge specs are as follows:
  • Both independent and controlled manually or automatically, operate at 15FPM

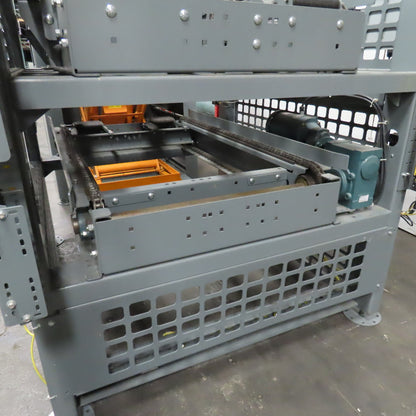

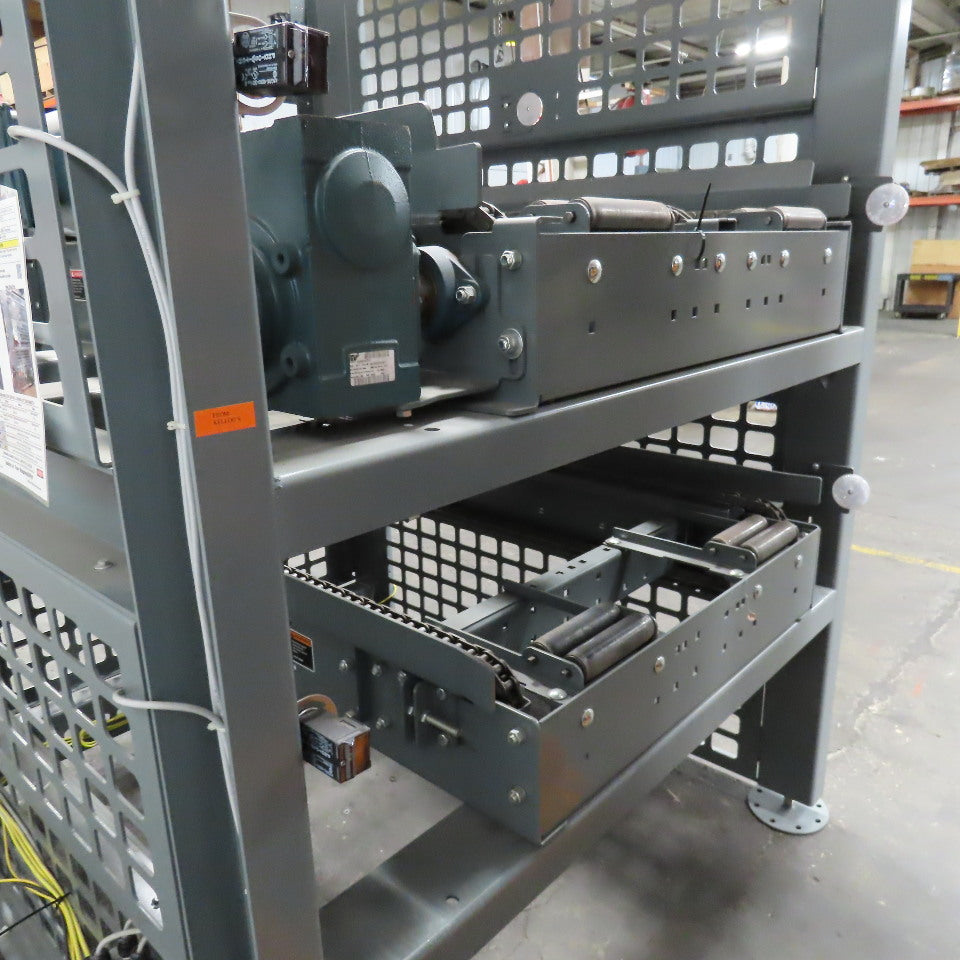

  • Pallet infeed conveyor, (bottom section) pallet bottom will be 36" from floor. There is 10" pallet head room
  • Above that conveyor is the full pallet conveyor, bottom of pallet measures from floor up is 60"

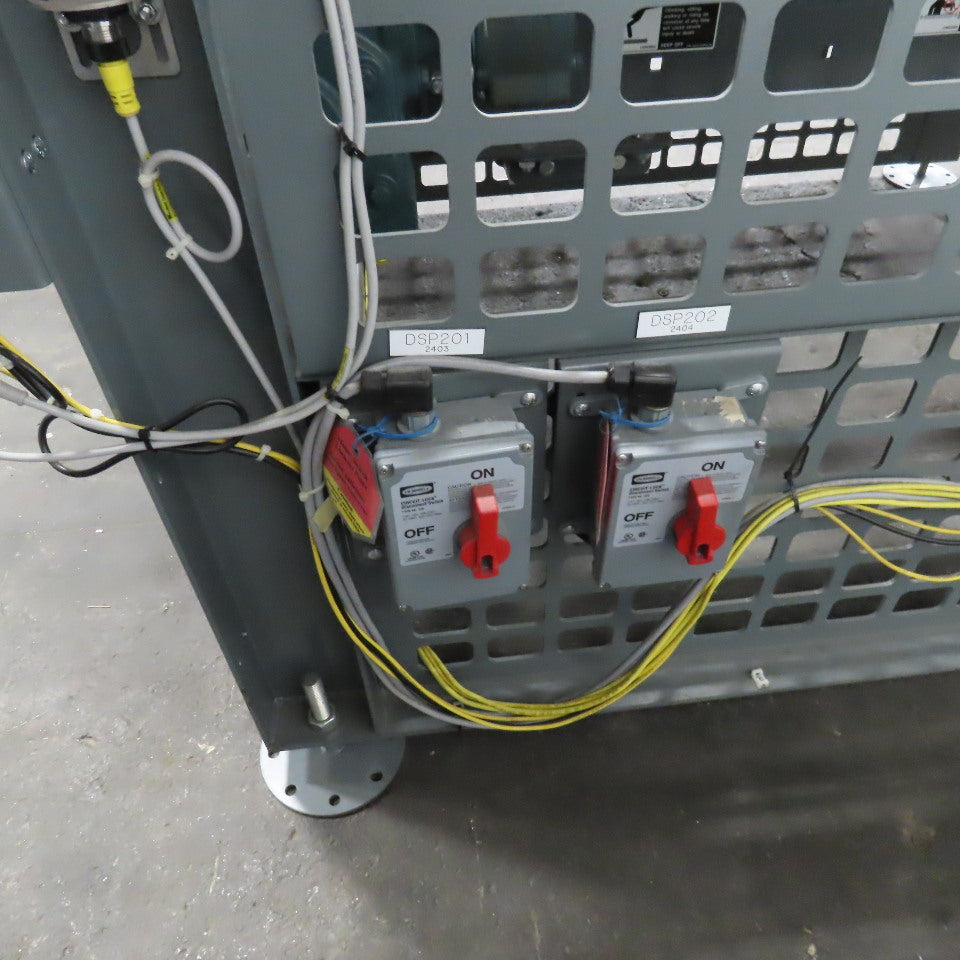

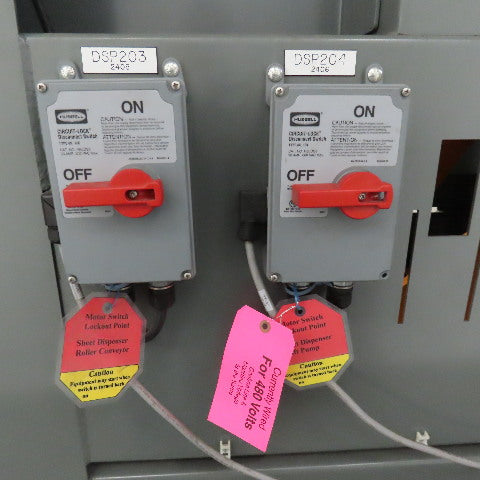

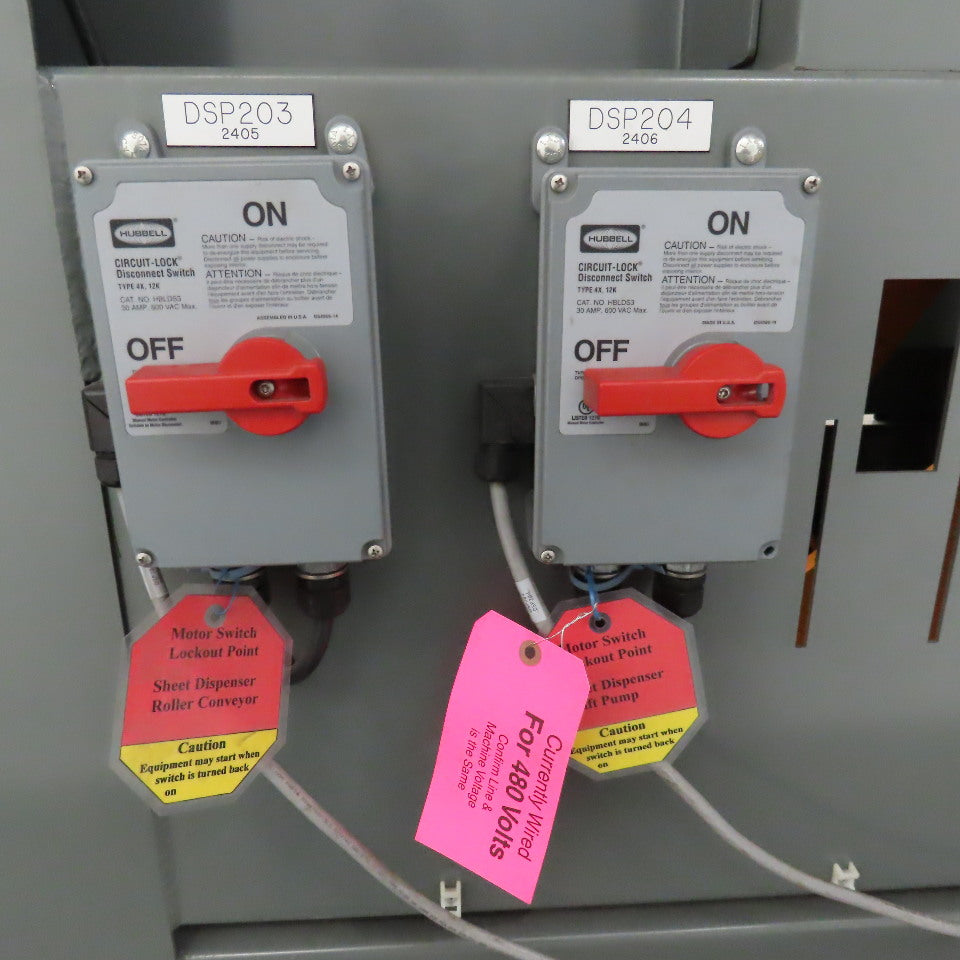

  • All systems tested and work as they should. Some left over disconnects may be unnecessary as they may be for another section of the line, example, 2 are labels as part of the sheet dispenser.

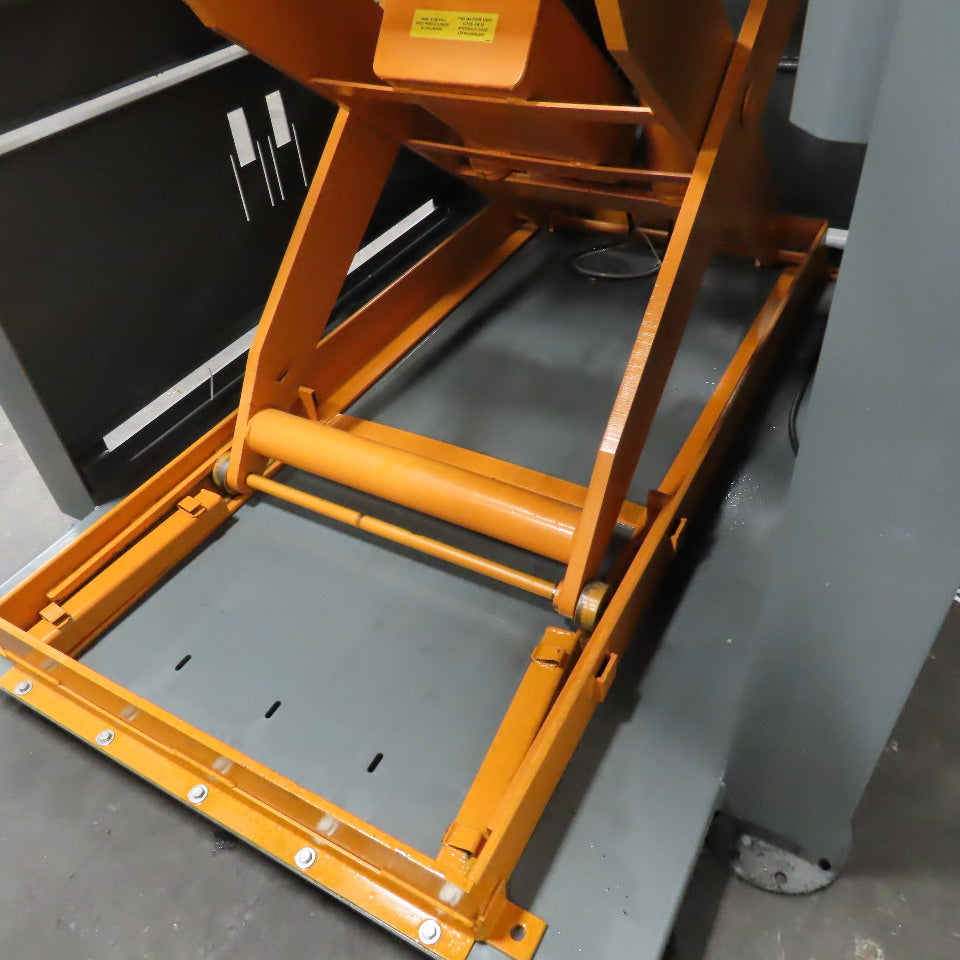

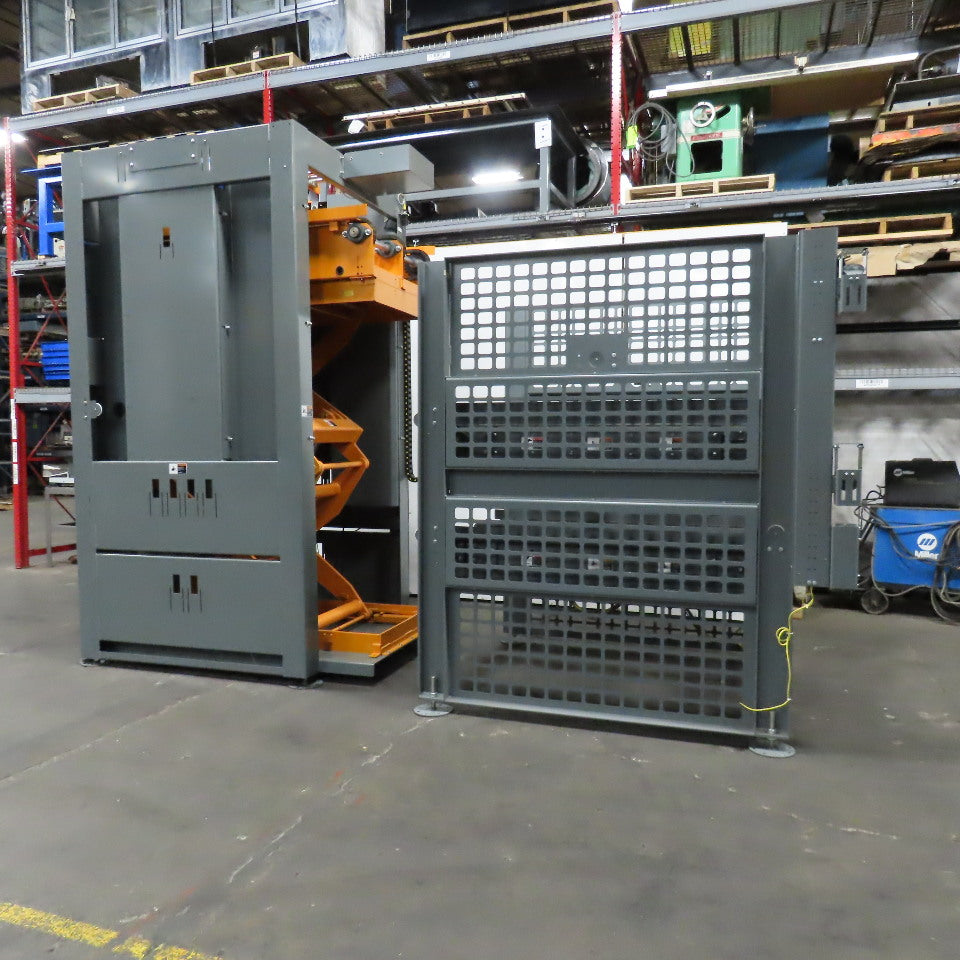

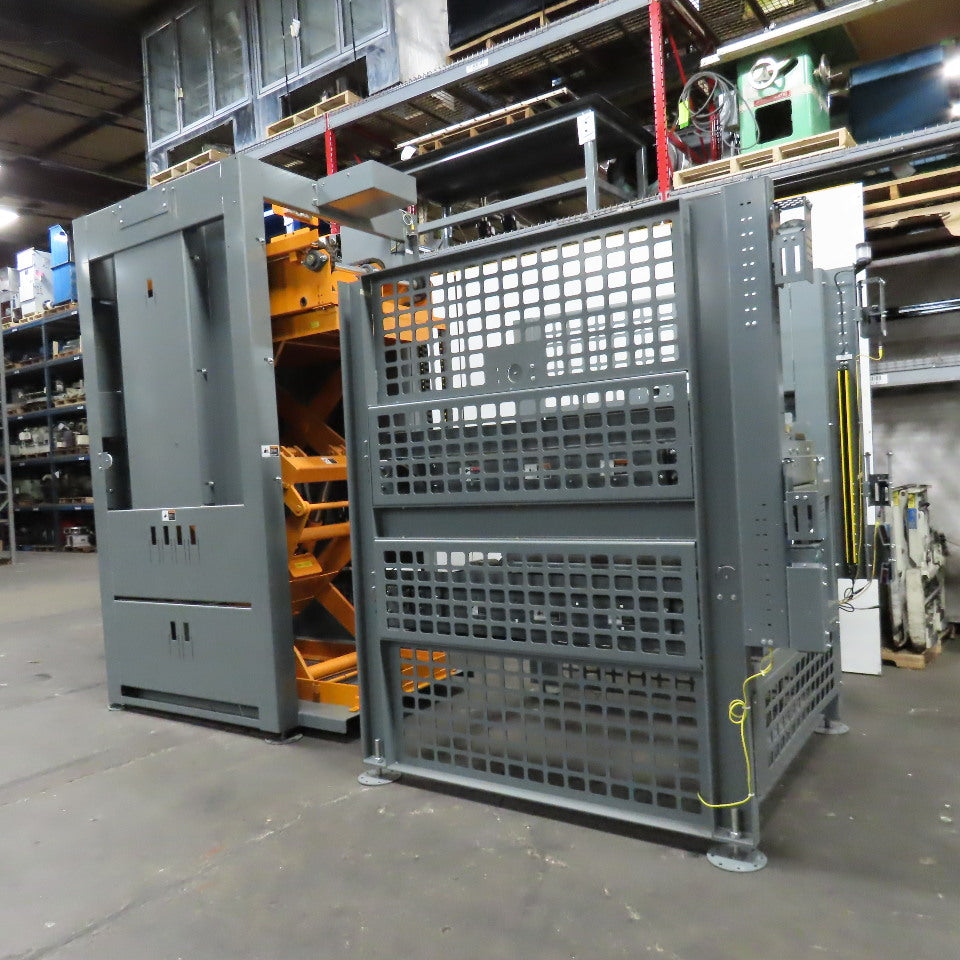

  • System photo'd with lift table in the fully raised position, last 2 photos are in the lowered position.
Machine shipping dimensions 126" x 75" x 72" and 92" x 78" x 72"
SKU 235272
Weight 8988.25 lb
Brand N/A
MPN N/A
Condition Used
Country of Manufacture N/A
Warehouse Storage Location Pole Building 4
Items in Lot 1

Low stock: 1 left
