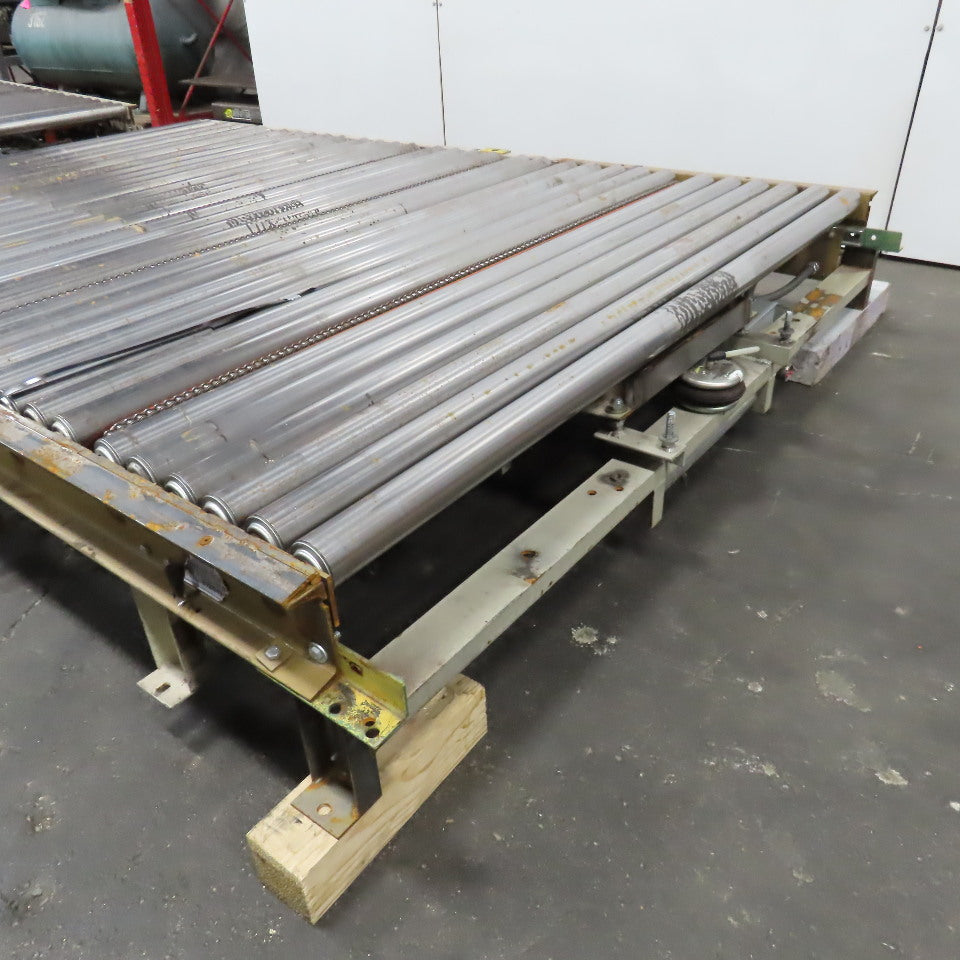

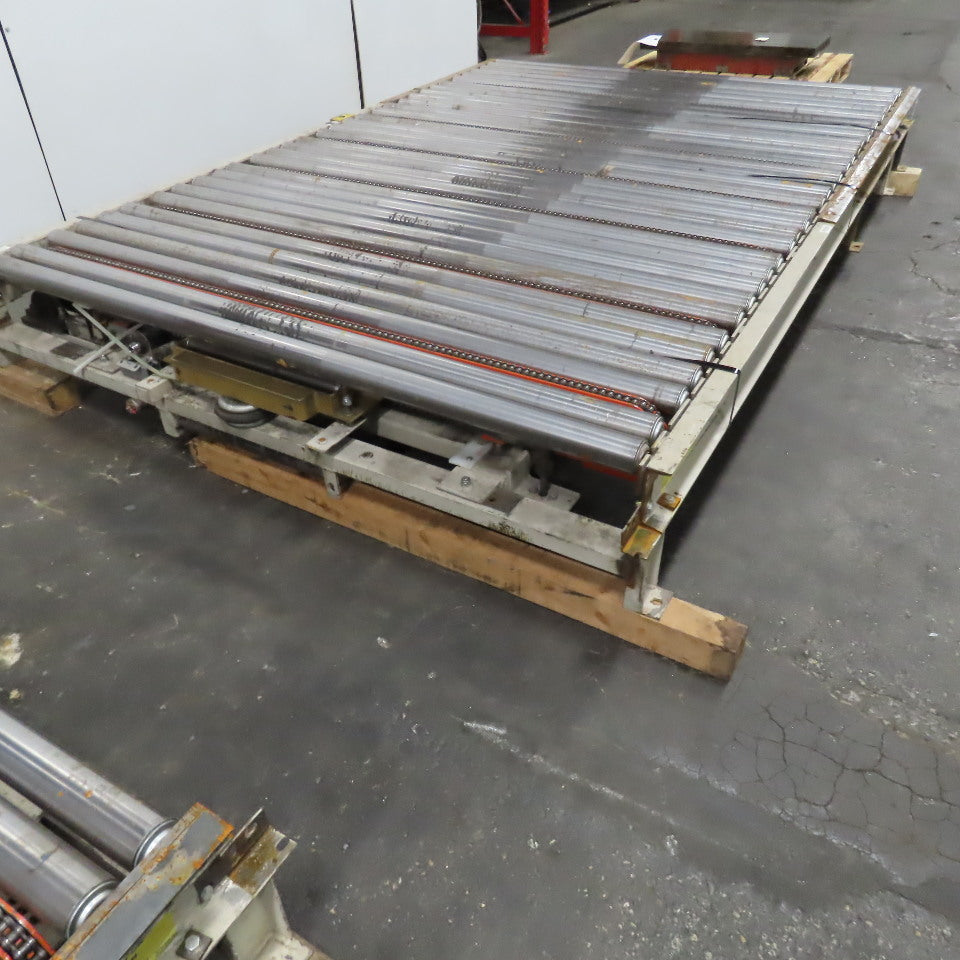

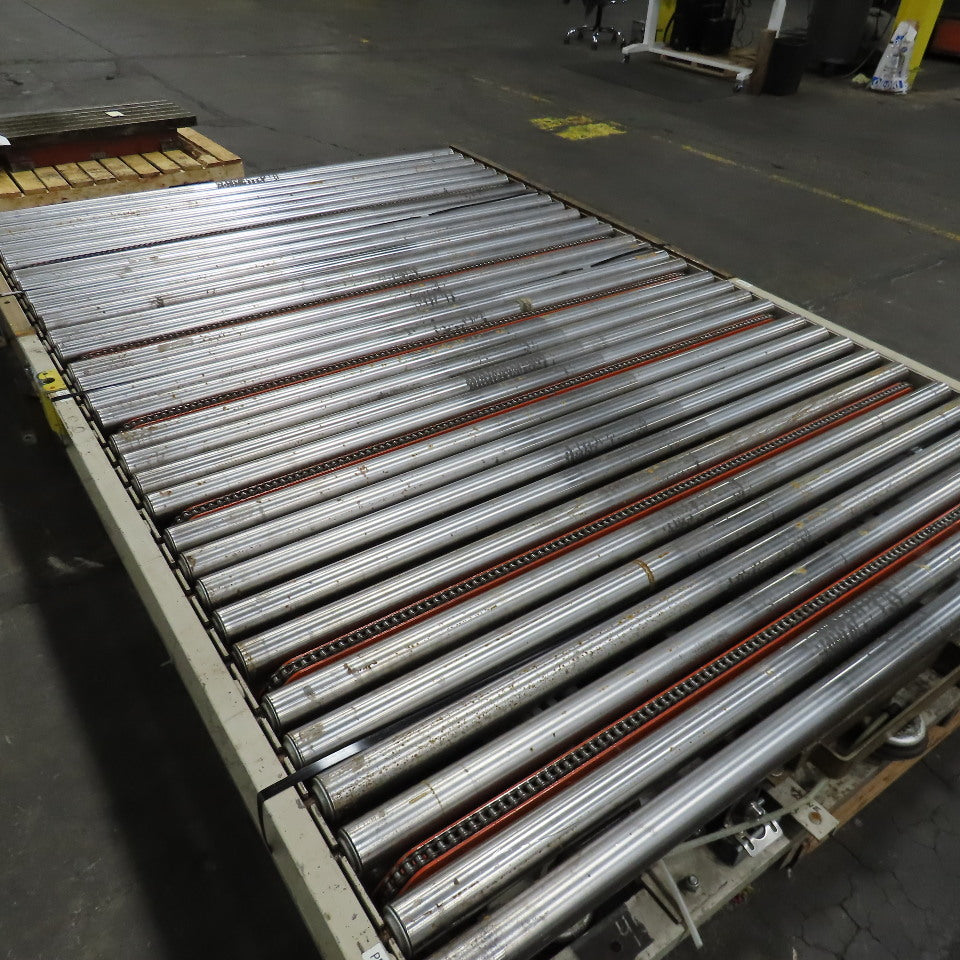

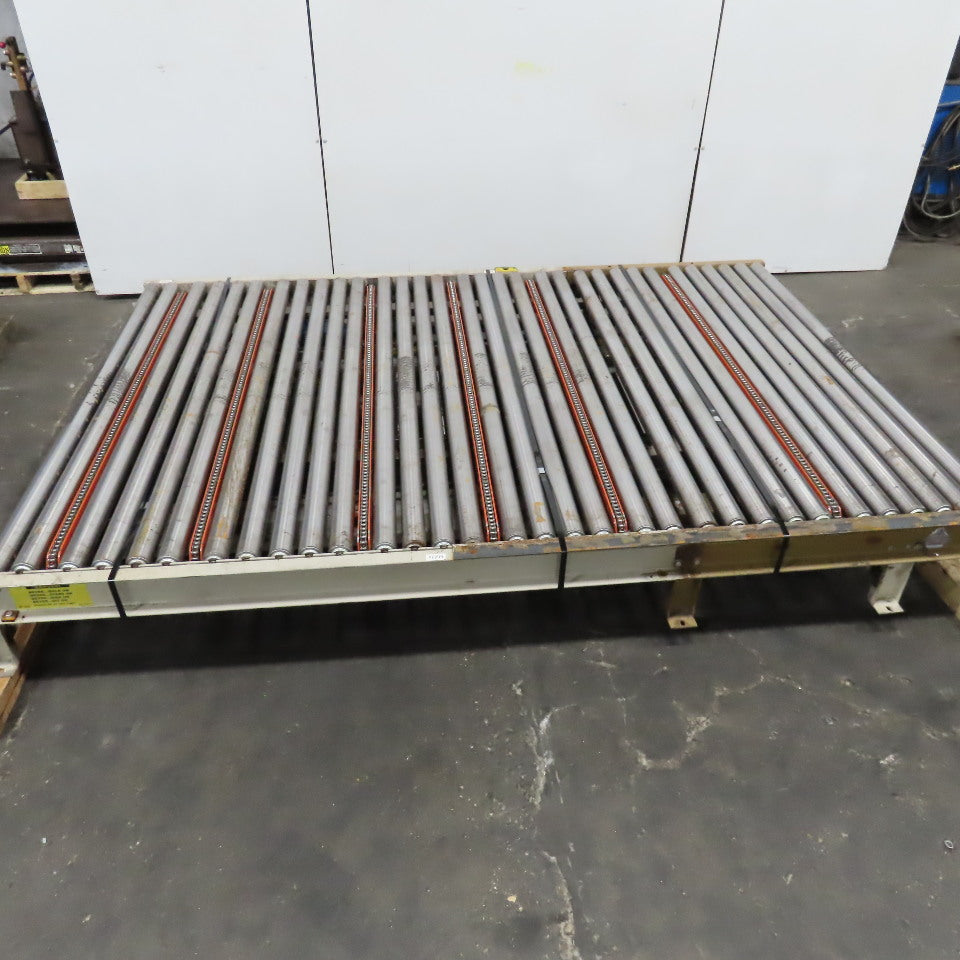

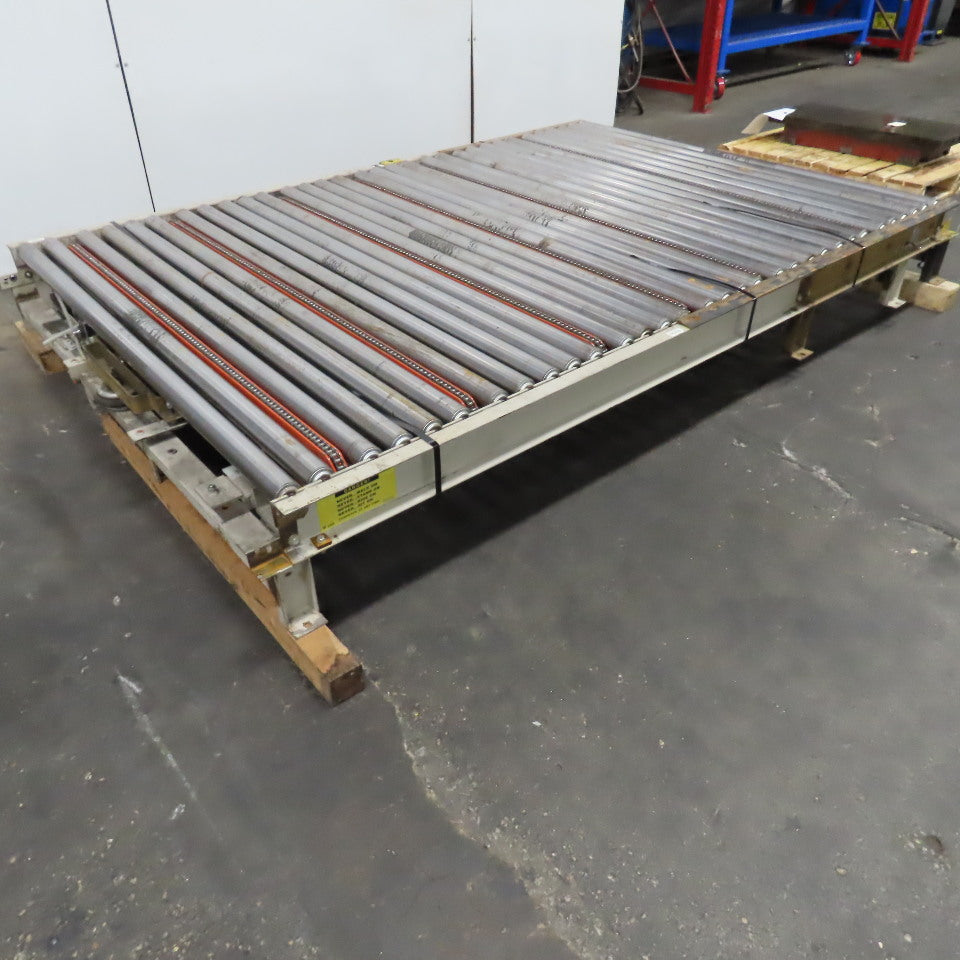

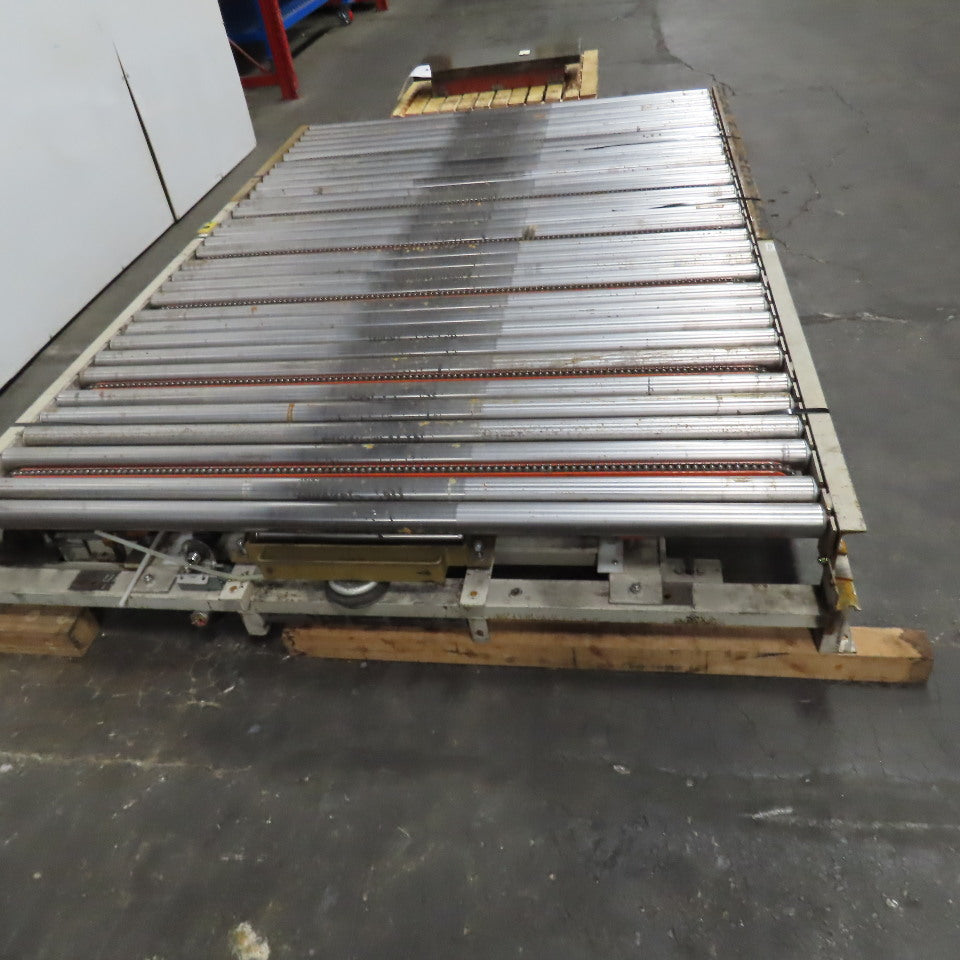

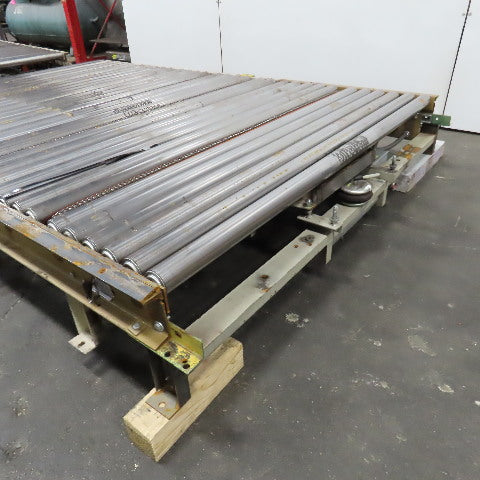

71" x 108" Gravity Roller Diverting Conveyor 230/460V Belt Drive Capable

71" x 108" Gravity Roller Diverting Conveyor 230/460V Belt Drive Capable

Questions? Contact support.
Purchase Information
$1,884.46 USD
$1,884.46 USD
Shipping calculated at checkout.
(Please reference this SKU number when making inquiries.)

 SKU: 235030
    • Type: Powered Roller Needs Belt
    • Width Outside Frames: 75-1/2"
    • Width Between Frames: 71"
    • Overall Length of Frame: 108"

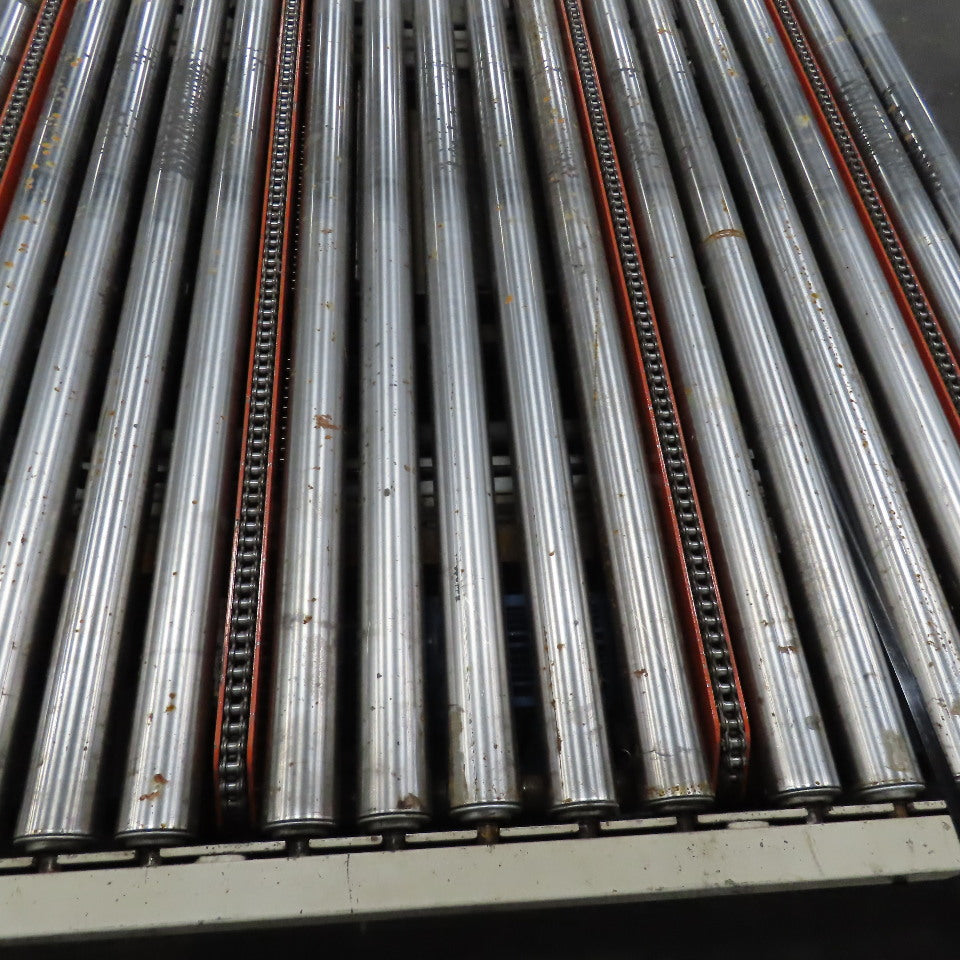

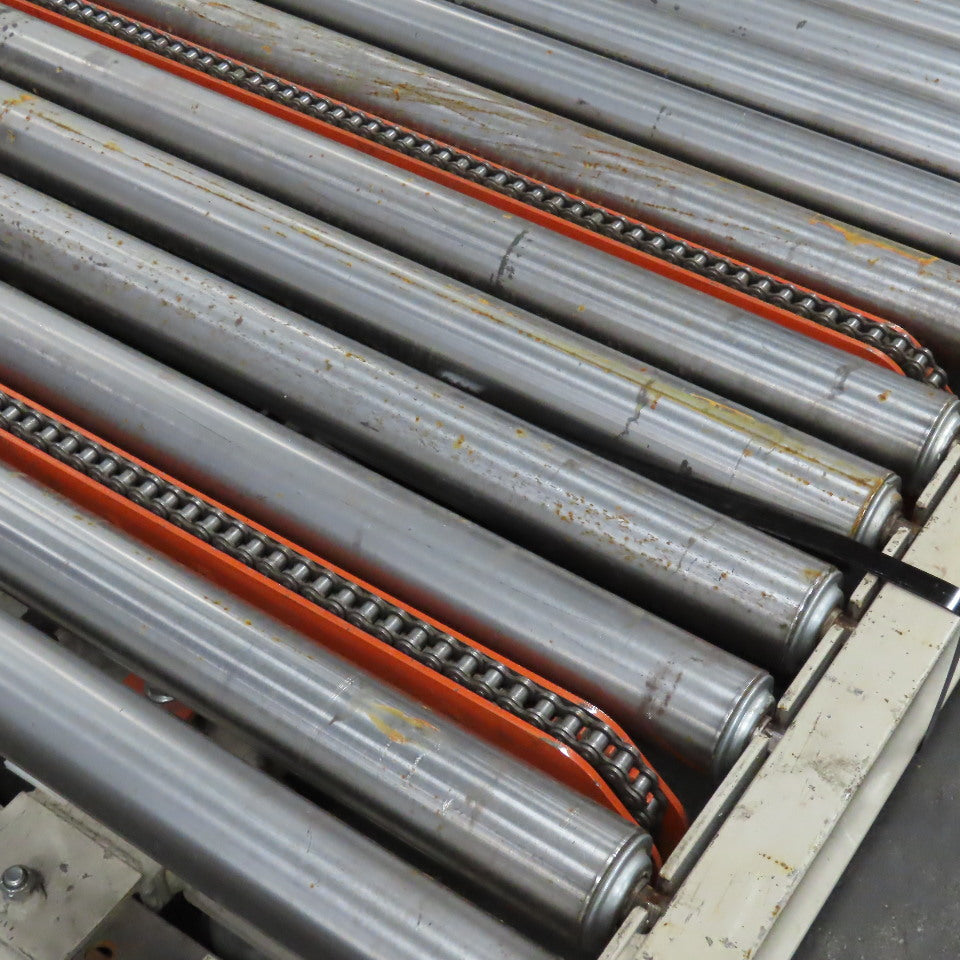

    • Roller Diameter: 2-1/2"
    • Roller Spacing On Center: 3"
    • Speed Feet Per Minute: 33 Divert section only
    • Voltage: 230/460
    • Phase: 3
    • Height of Legs From Floor to Top of Roller: 12"
    • Many of these conveyors were linked together on one traction belt drive, so as is, this conveyor, if being used as a powered roller conveyor will need 2 drum style rollers, a belt and drive for belt, if using as a slave driven conveyor and are using a different conveyors drive, then only a belt and drum rollers are required.

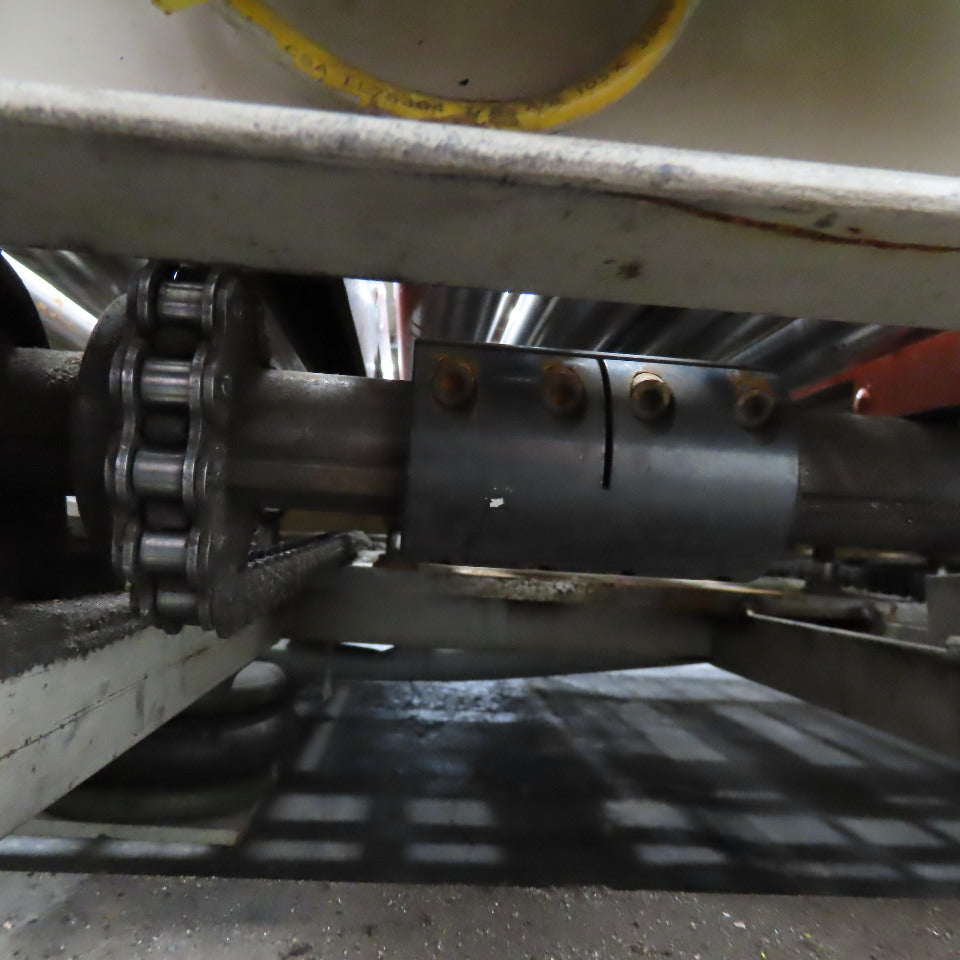

    • Divert drive is 230/460V 3Ph and operates at 33FPM

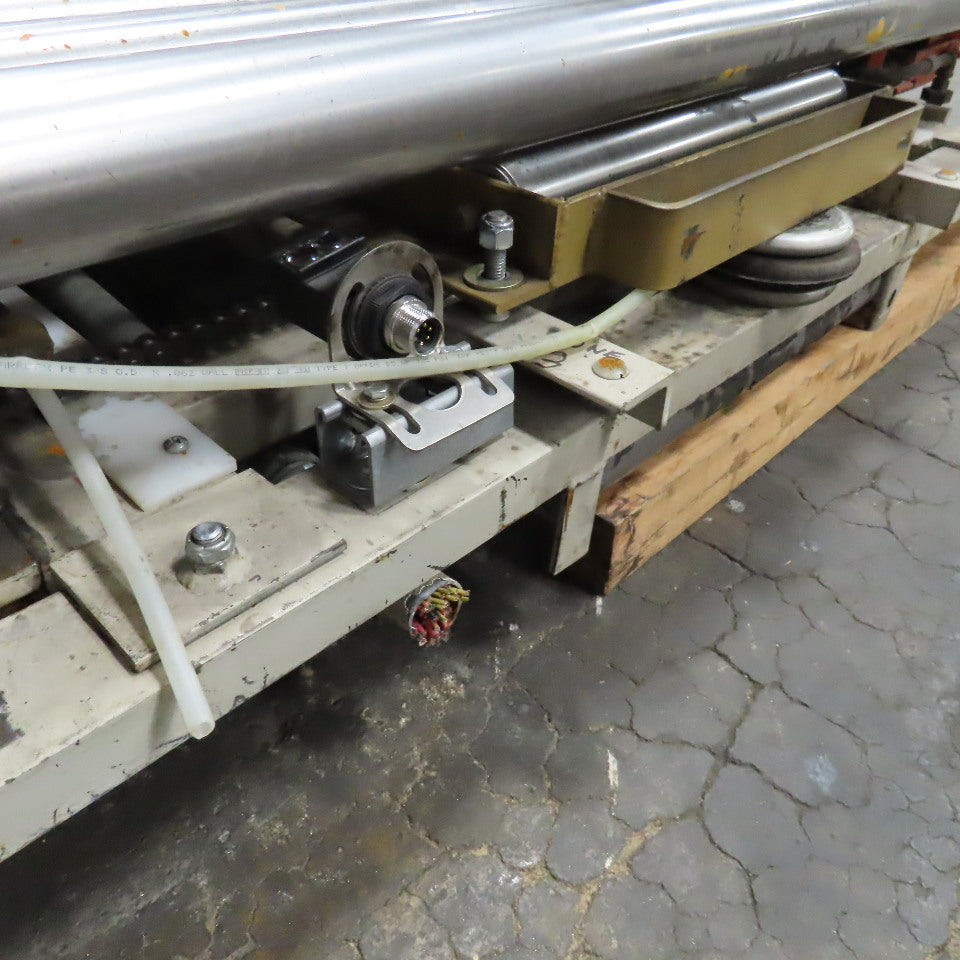

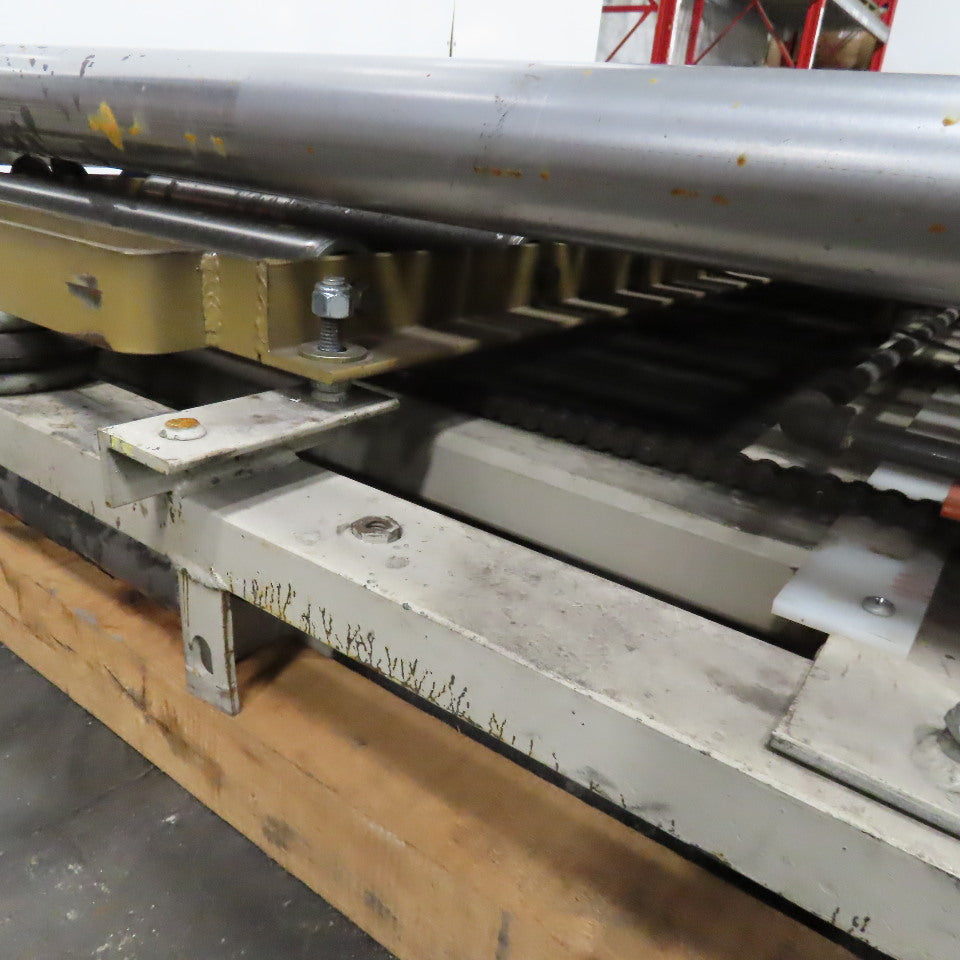

    • This is set up as a 2 zone conveyor, there are air bags underneath to raise and lower belt drive to contact the main conveyor rollers and drive them with friction. There are 2 of these under. So if this is set up with a PLC or pneumatic logic this could be programmed to "see" product on conveyor and stop a section to make is a short accumulation,
    • Evaluation and planning will be required to utilize full potential of conveyor and parts may be required.
    • Selling AS/IS.
SKU 235030
Weight 1298.3 lb
Brand N/A
MPN N/A
Condition Used
Country of Manufacture N/A
Warehouse Storage Location Pole Building 2L
Items in Lot 1

Low stock: 1 left
