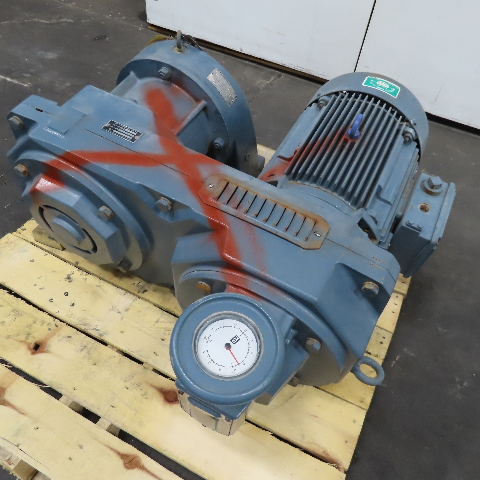

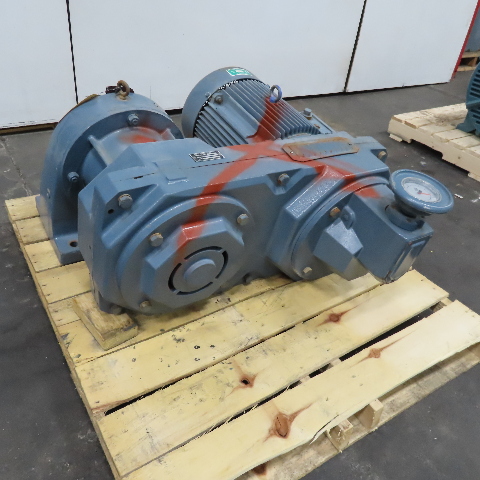

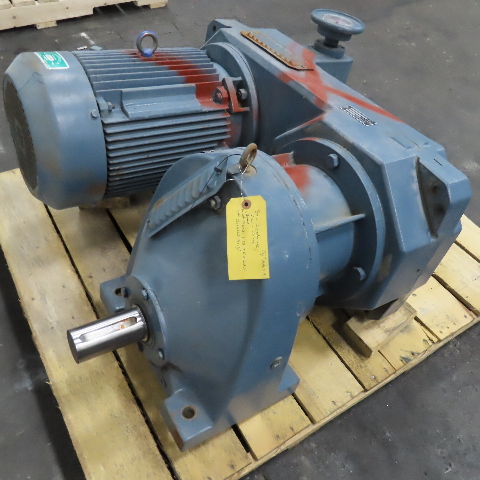

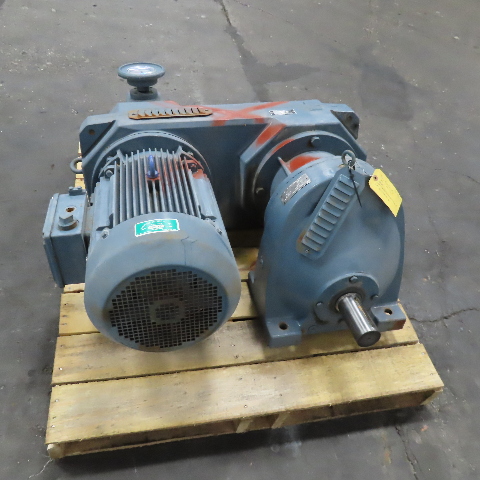

Sew RX101VU5HSDV1601 5.22:1 Ratio Variable Speed Drive 20Hp 230/460V 160-533RPM
$1,899.99 SKU: 281527This is an LTL freight item. Please call us before you pay so we can calculate freight and add the cost to the listing for one payment. If freight is not paid for at checkout, we will contact you with freight options after the order is received.
- Condition: Used
- Brand: Sew
- Model:
- MPN: RX101VU5HSDV1601
- Country of Manufacture: United States
- Gear Ratio: 5.22
- Output Speed: 118/715
- Shaft Diameter: 2-3/8"
- Output Torque (lbs-in): 1440
- Shaft Output (Left, Right or Inline): Parallel
- Motor Brand: Sew
- Motor HP: 20
- Motor Voltage: 230/460V
- Motor Frequency: 60
- Motor Amps: 51.25/25.63
- Insulation Class: F
- Motor plate states the output RPM is 163-704 Or could be 163RPM @ 230V and 704RPM @ 460V (?)

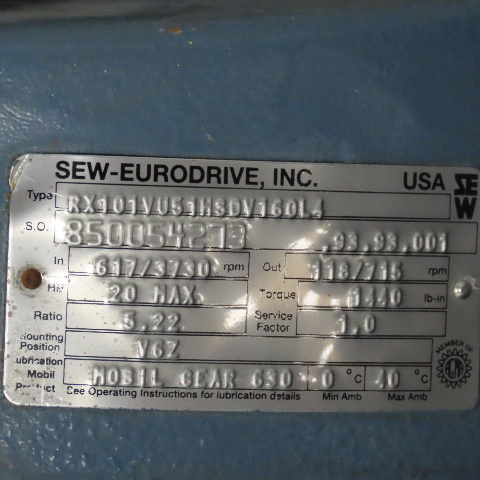

- Gearbox says output is 118/715RPM (input 617/3730)
- Actual speed using a tach in house was 160-533 RPM
- Not sure if this is the original motor, not sure if it is a double reduction, but the gear ratio compared to input does not add up.
- Not sure if the belt is worn out or out of adjustments, some raddling in the belt case when in high speed
- Unit needs reevaluated
- Tested and works otherwise.
