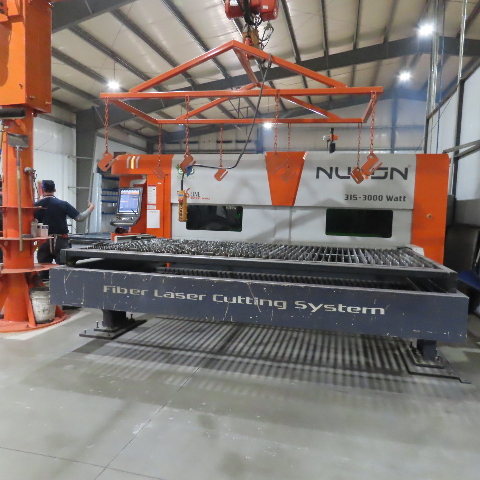

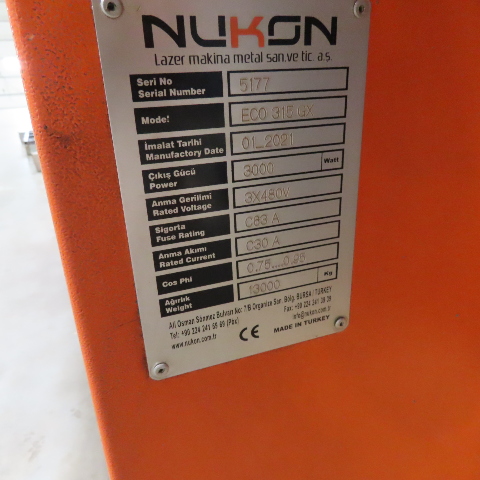

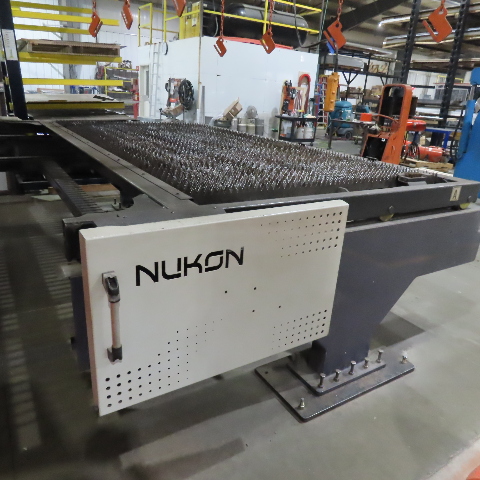

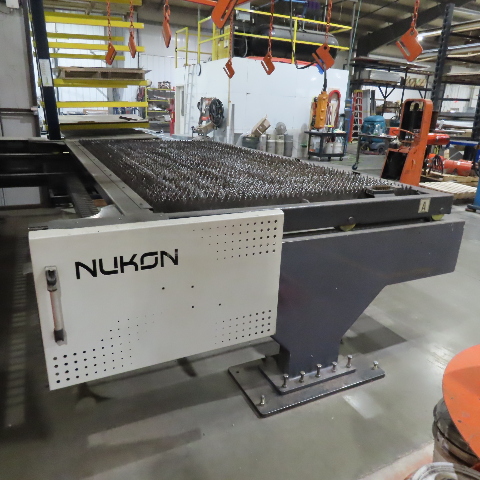

Nukon ECO 315 GX 5' x 10' CNC Fiber Optic Laser Cutting System 315-3000W 480V
$232,750.00 SKU: 292820This is an LTL freight item. Please call us before you pay so we can calculate freight and add the cost to the listing for one payment. If freight is not paid for at checkout, we will contact you with freight options after the order is received.
- Condition: Used
- Brand: Nukon
- Model:
- MPN: ECO 315 GX
- Country of Manufacture: N/A

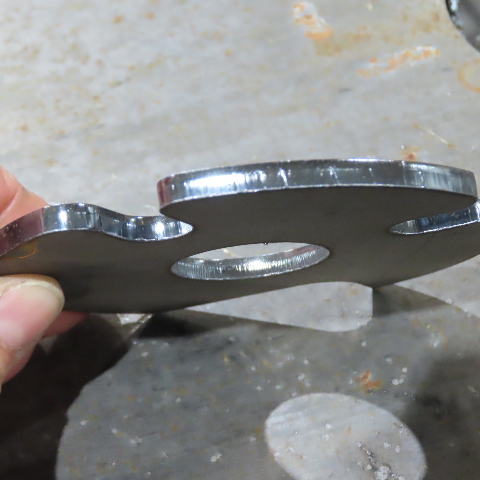

- In service at time of listing, see photos for cut example, edge is smooth
- Manufactured in 2020
- New drives installed within the last year
- Background (engineering screen for such menu items as run time etc. Is protected by an administration password that will need to be obtained by Nukon technicians). This is set up to protect the software from tampering.

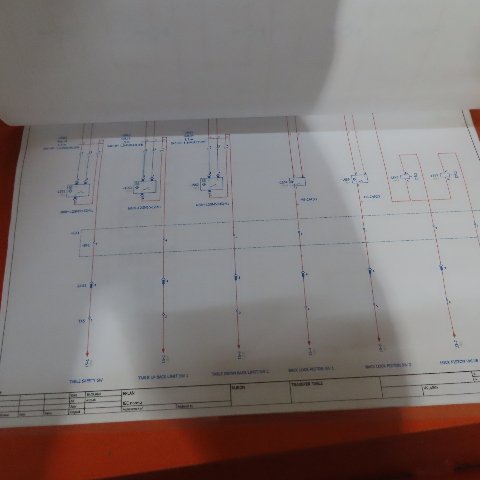

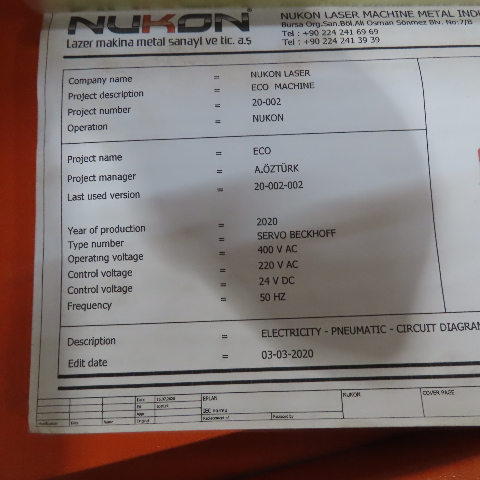

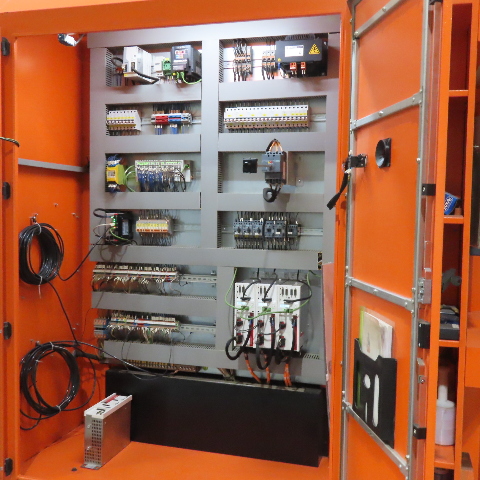

- Complete electrical schematics included, See Attached URL for sheet cutting parameters

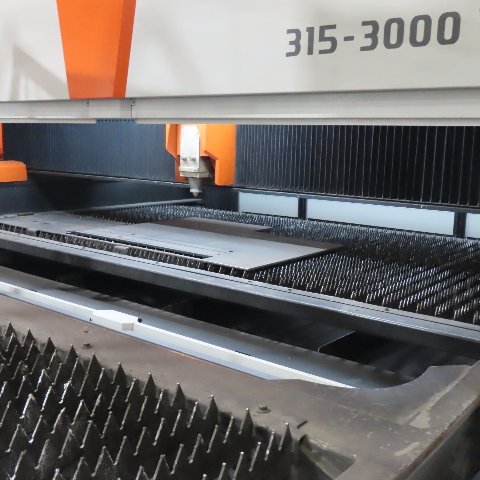

- 5' x 10' sheet accommodation
- X axis is 10' travel
- Y axis is 5' travel
- Z axis is 2.9" for upper shuttle table, and 9.8" for lower table
- 3306Lbs load capacity

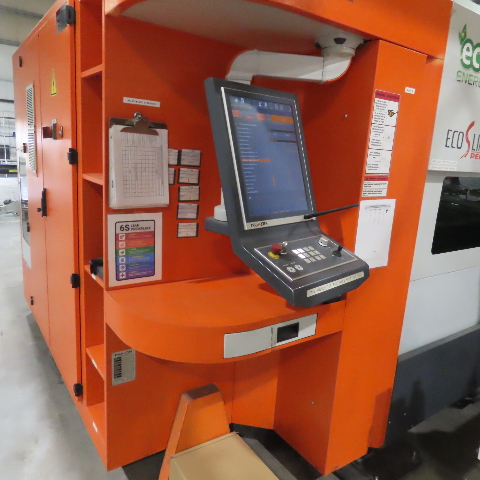

- 19" touch screen

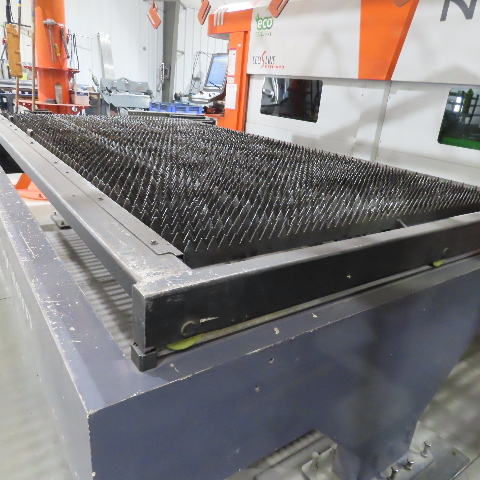

- Shuttle table change over time is 16 seconds

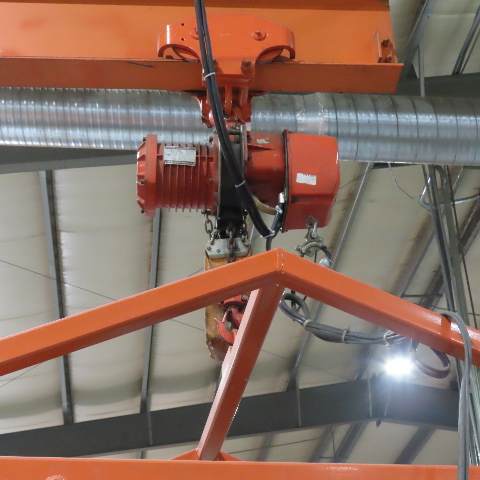

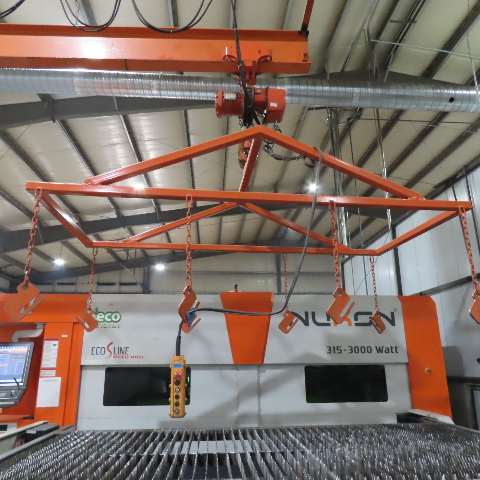

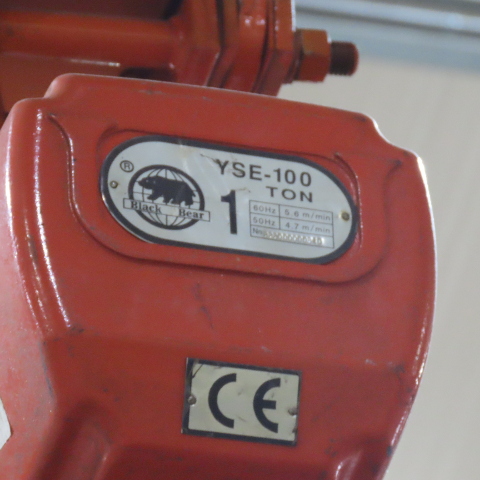

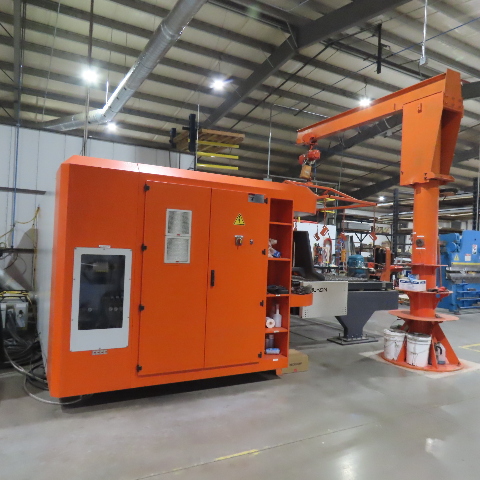

- Overhead jib is a 1 ton, Head room under arm is 12'
- Other components to the system are:

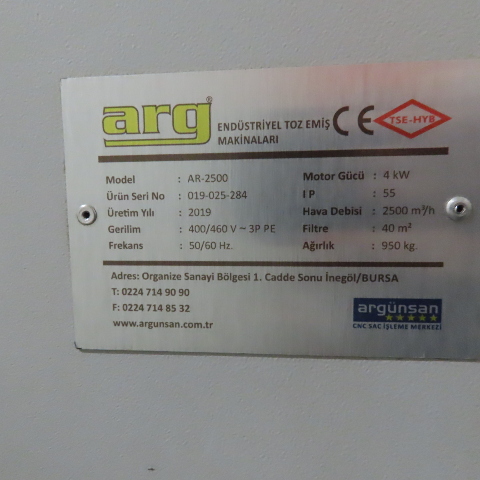

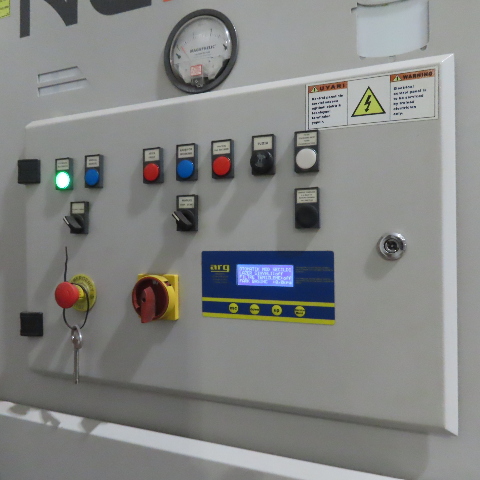

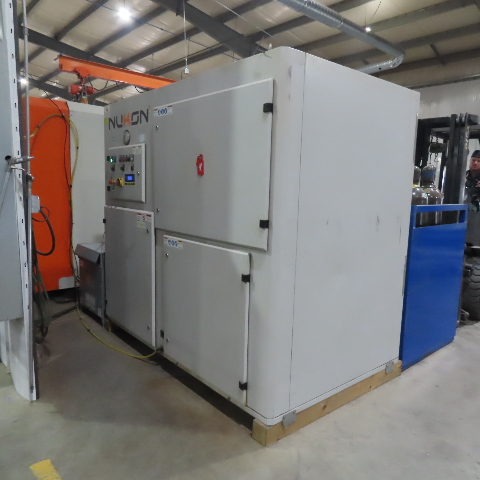

- Arunsan Dust collection system Model AR-2500 Manufactured in 2019 2500m3/h

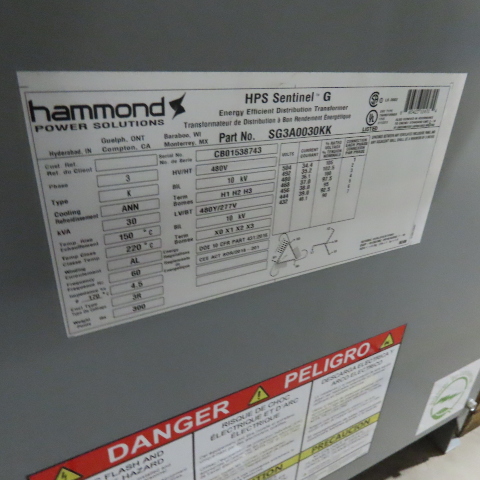

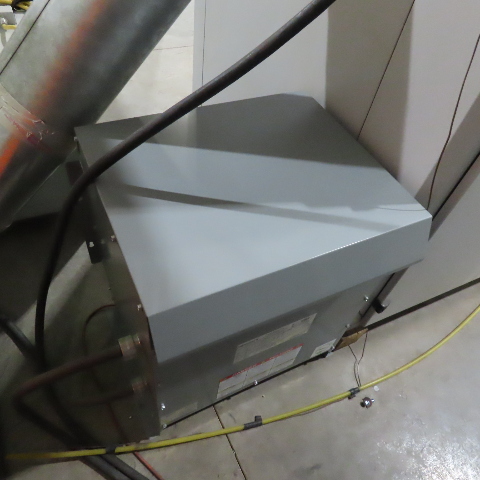

- Hammond transformer: SG3A0030KK 480V 10kV 480Y/277V Secondary

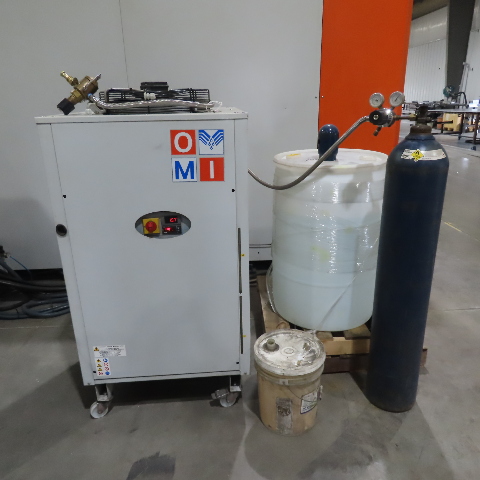

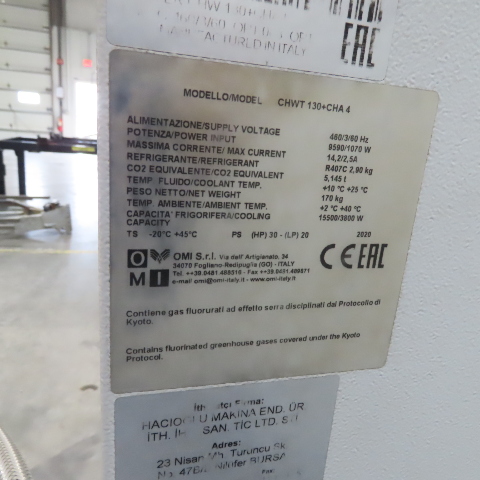

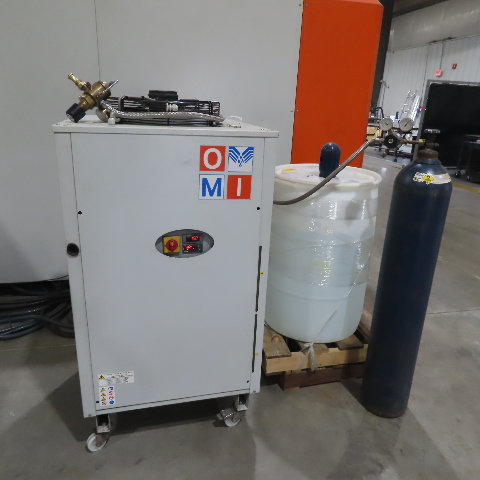

- OMI S.r.L Refrigerated chiller CHWT 130+CHA4

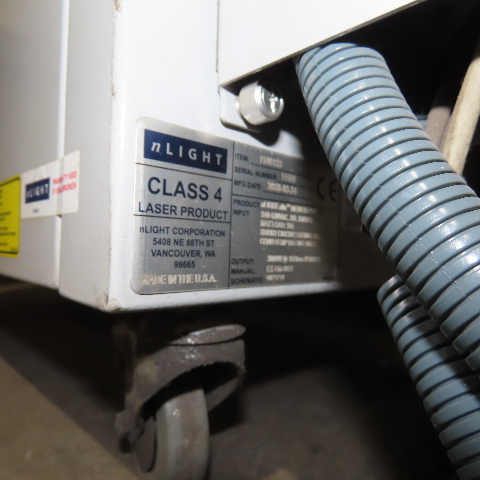

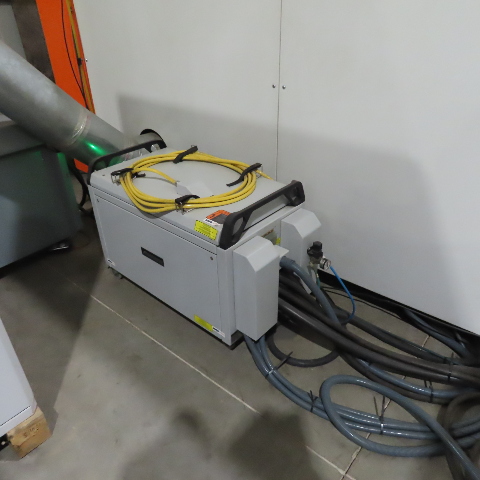

- nLight Corporation 30A Max Load Class 4 single mode laser 3000W Item No. 1100133 Manufactured 2020
- Complete system is in excellent working condition, it was well taken care of and is clean
- Footprint of whole systems is 12' x 9' for shuttle table, 17' w x 9'6" deep for cutter, supporting equipment installed in back is in an area approx. 15' x 10' Jib height is approx. 14'
- It is suggested with any delicate machinery to enlist the manufacturers trained technicians to assist in commissioning such equipment.
- The machine is located in LaGrange, Indiana. An appointment will need to be made to view the equipment. Contact us today to set up the appointment or for a shipping quote!
