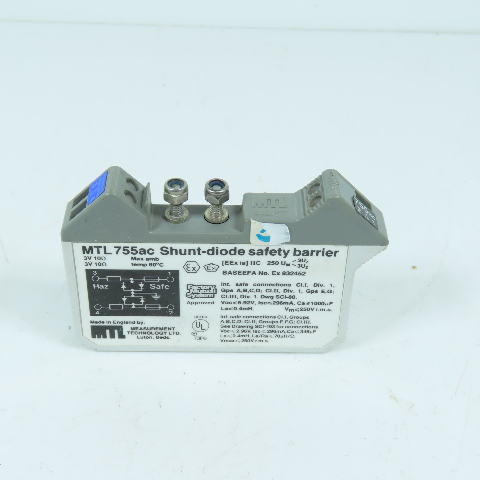

MTL MTL755ac Shunt-diode Safety Barrier 3V 10Ω
$50.34 SKU: 272848
- Condition: Used
- Brand: MTL
- Model: MTL755ac
- MPN: N/A
- Country of Manufacture: England

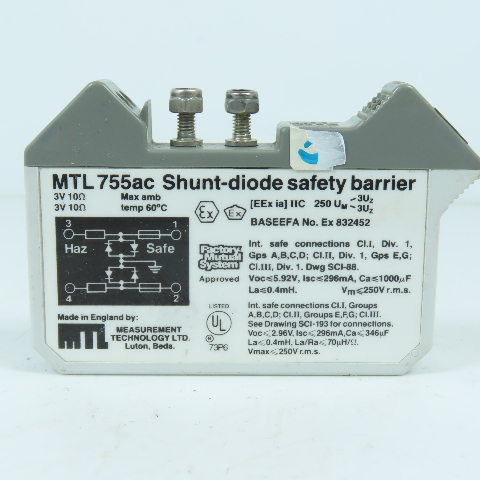

- MTL 755ac shunt-diode safety barrier
- Manufacturer: Measurement Technology Ltd., Luton, England
- Specifications: 3V 10Ω, max ambient temperature 60°C
- Intrinsically safe connections per Factory Mutual System approval
- Certifications: [EEx ia] IIC 250 Un -3Uz, BASEEFA No. Ex 832452
- UL Listed (73P6)
- Approved for Class I, Div. 1 Groups A,B,C,D; Class II, Div. 1, Groups E,F,G; Class III, Div. 1
- Electrical ratings: Voc≤5.92V, Isc≤296mA, Ca≤1000μF, La≤0.4mH, Vm≤250V r.m.s.
- Four-terminal configuration with screw terminals
- Unit shows normal signs of usage with minor surface wear
- Label is intact and legible
- Terminal screws and mounting hardware included
