MANUFACTURING TECHNOGY INC 45 TON Friction Welder 30HP Hydraulic 75HP Spindle
$17,100.00 SKU: 116251
- Condition: Used
- Brand: MANUFACTURING TECHNOGY INC
- Model: 45 TON
- MPN: N/A
- Country of Manufacture: USA
- Model# 45T
- Serial# 45TBXME2965
- Hydraulics: 30 HP, 1800 RPM,480V/3Ph/60Hz
- Spindle Drive 75HP,1140/2100RPM.240VDC
- Hydraulic Pressure Max (Weld) 3600 PSI
- Hydraulic Cylinder Ram Area (Weld) 25.133 sq. in
- Hydraulic Max Volume (Weld) 16GPM
- Hydraulic Tank Capacity 100 Gal.
- Normal Operating Temp. 95-125 Degrees F
- Heat Exchanger Water Supply 15GPM@85 Degrees F
- Electrical: 460V, 217 Full Load Amps, 225 Amp Circuit Breaker, 165 Amp Main Motor Full Load
- Max. Fixture Slide Travel 16 Inch
- Max Drawbar Stroke .428"
- Max RPM 2000
- Maximum WK2, 20.52 Lb-FT2
- Previously Used For Manufacturing Drive Shafts. Fully Operational @ Plant Shutdown

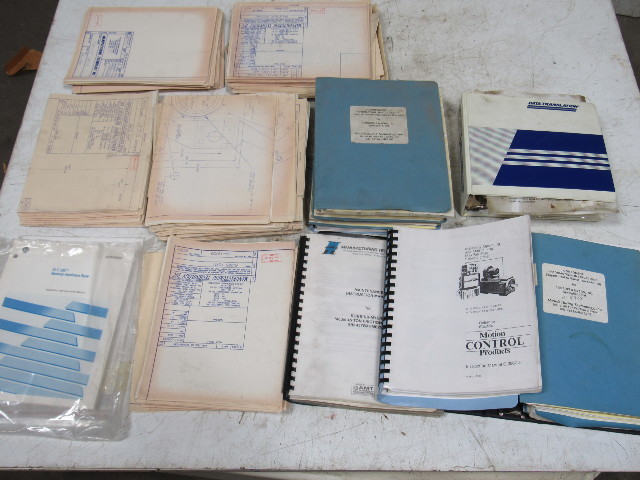

- Includes Original Manuals, Schematics, Parts Lists, Maintenance Manual, ETC!!!!!!!

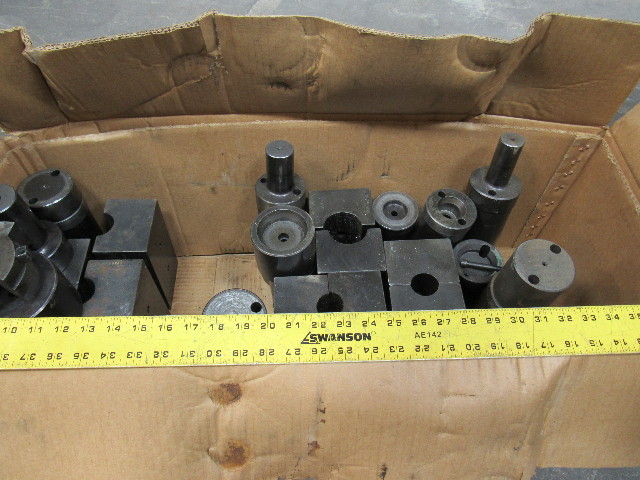

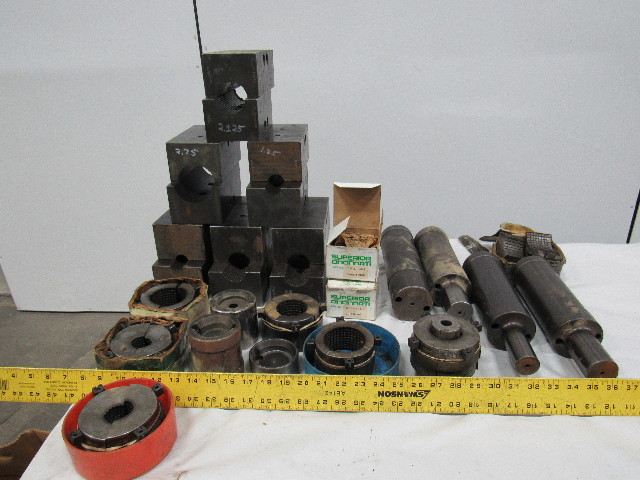

- Includes A 700 Lb. Box of New & Used Tooling!!(Samples In Pics)

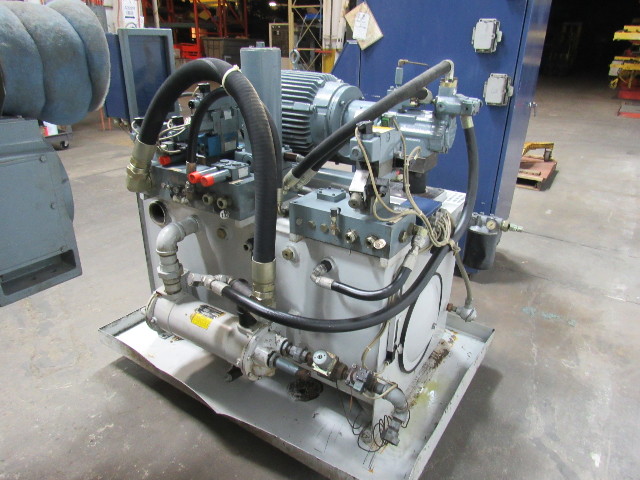

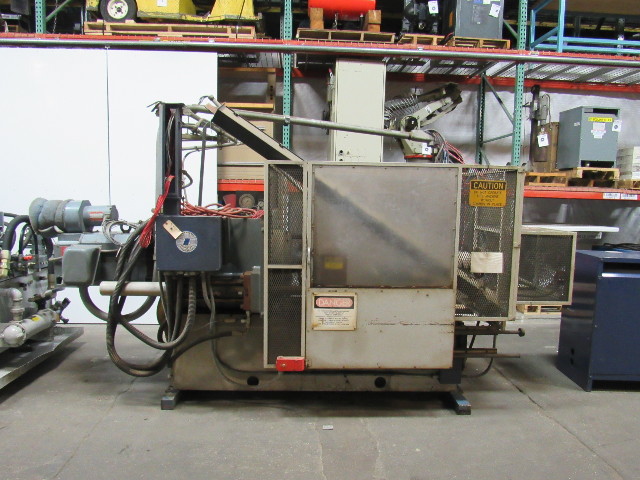

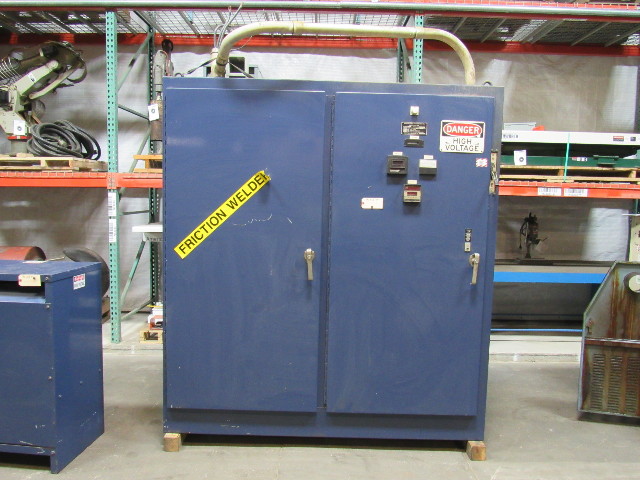

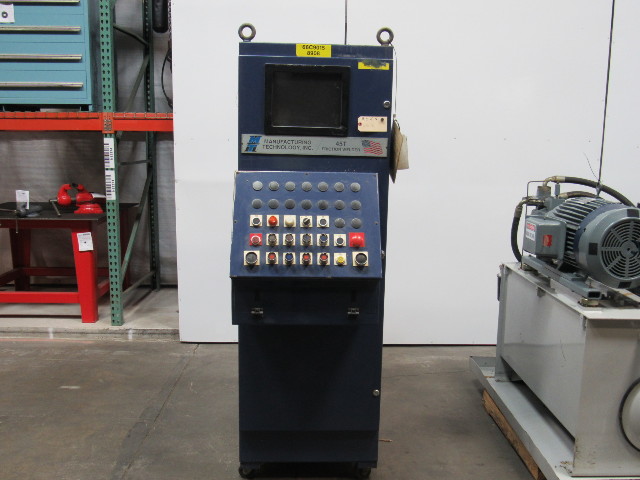

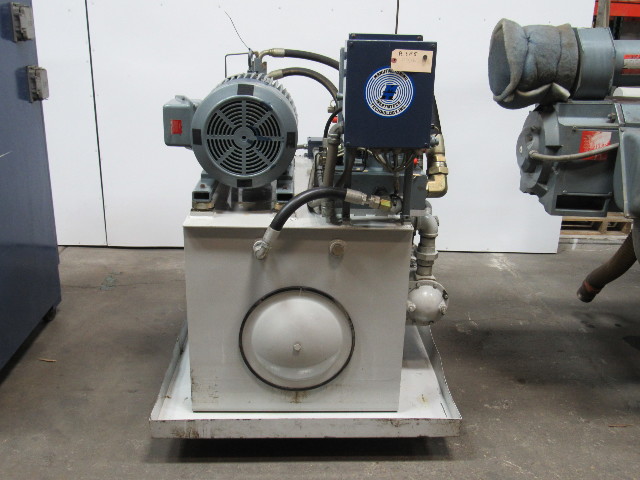

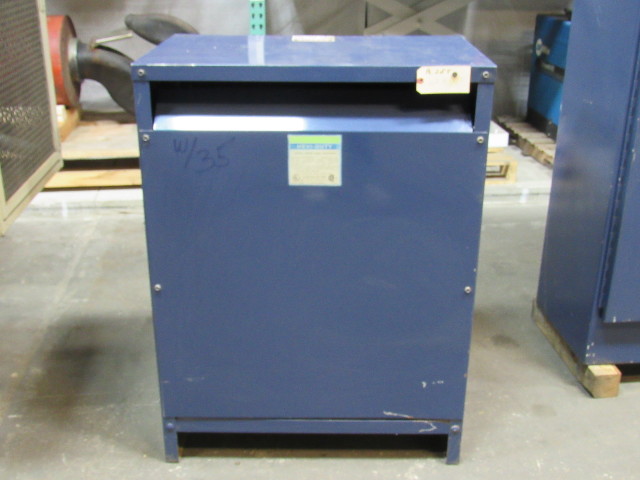

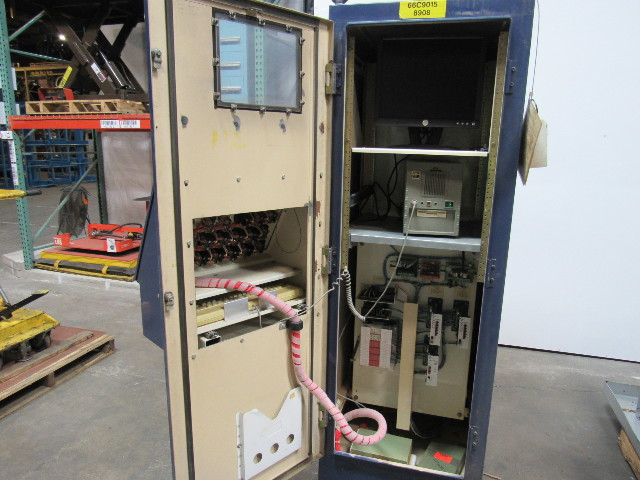

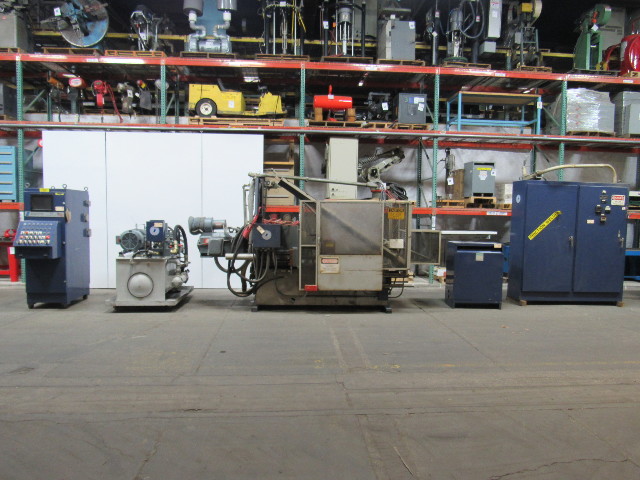

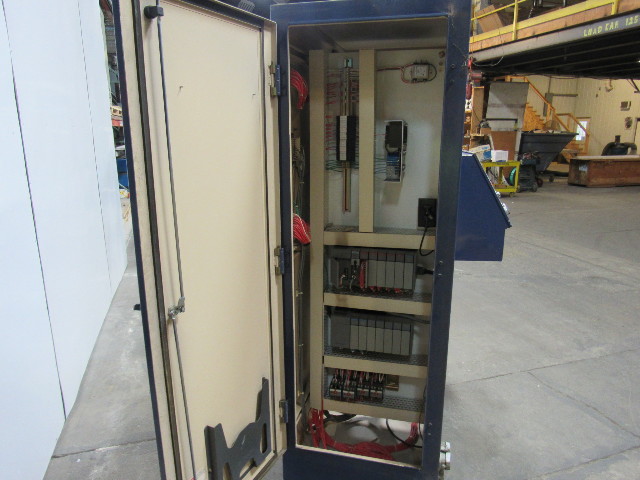

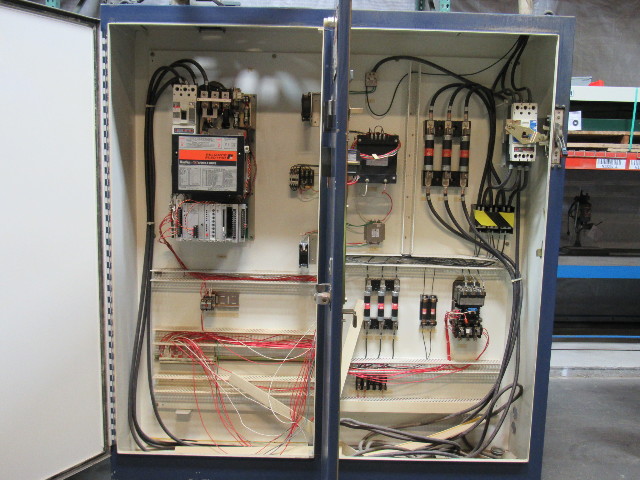

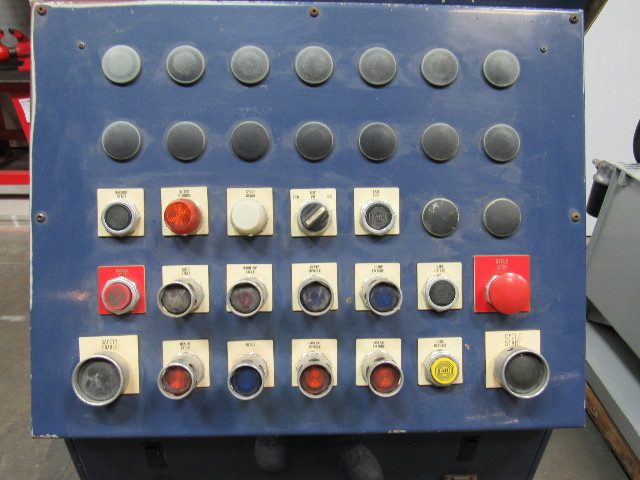

- Ships As 5 Pieces As Follows: Op.Interface 52"x30"x80"@690Lb. Transformer 53"x21"x44" @ 870Lb. Hydraulic Unit 66"x42"x55"@1935Lb. Weld Unit 166"x72"x94"@10,900Lb. Electrical Cabinet 78"x23"x105"@1505Lb.
- Utilities Well Tagged For Re-Install.
