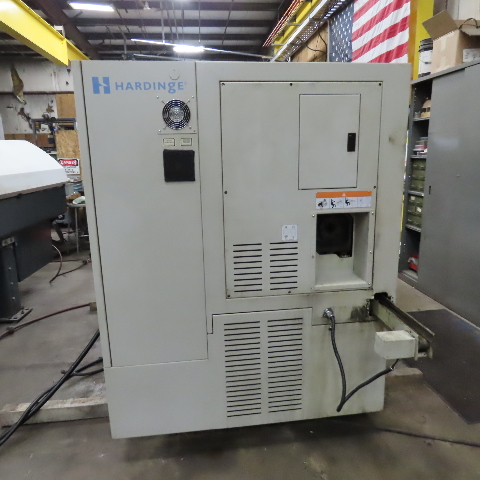

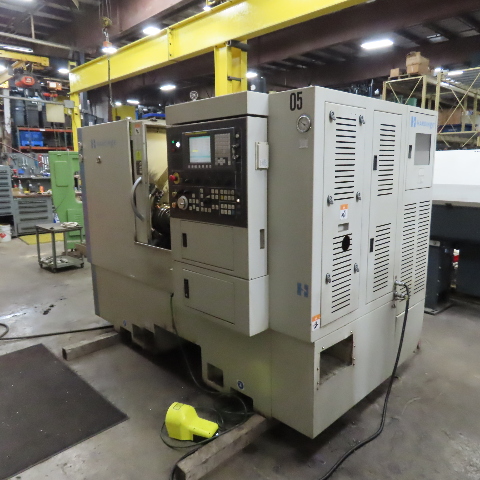

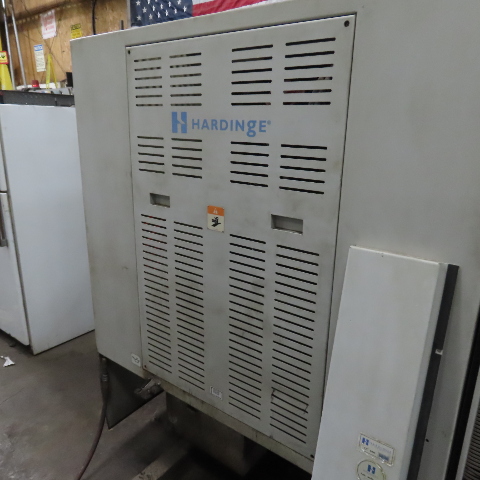

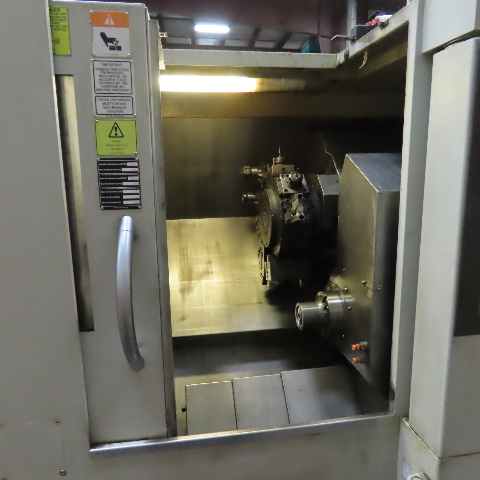

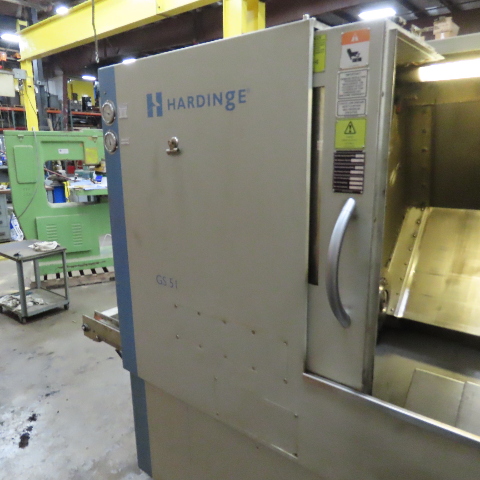

Hardinge GS-51 CNC Turning Center 3PH W/LNS Bar Feeder (Needs Sub Spindle Work)
$26,125.00 SKU: 265712This is an LTL freight item. Please call us before you pay so we can calculate freight and add the cost to the listing for one payment. If freight is not paid for at checkout, we will contact you with freight options after the order is received.
- Condition: Used
- Brand: Hardinge
- Model: GS-51
- MPN: N/A
- Country of Manufacture: N/A
- CLICK HERE FOR MANUFACTURER'S SPECS
- CLICK HERE FOR MANUFACTURER'S SPECS
- CLICK HERE FOR MANUFACTURER'S SPECS

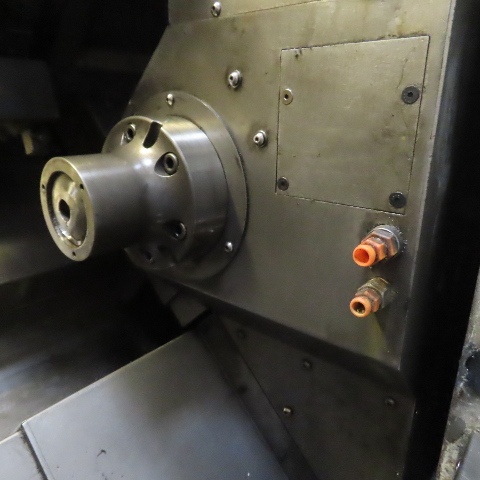

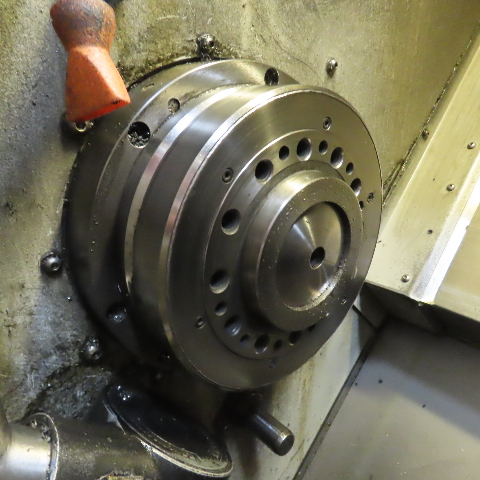

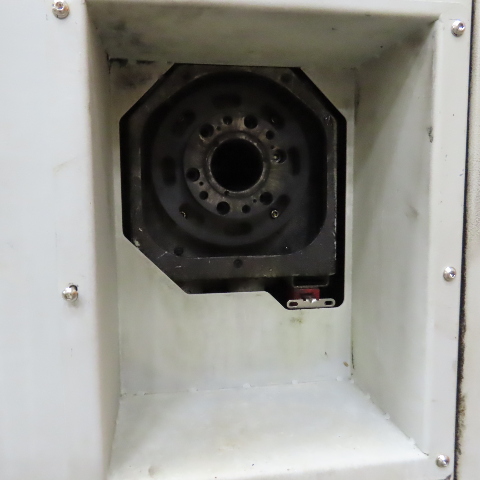

- All components have been tested and work good except the sub spindle does not work in automatic. See attached video for a more detailed explanation.

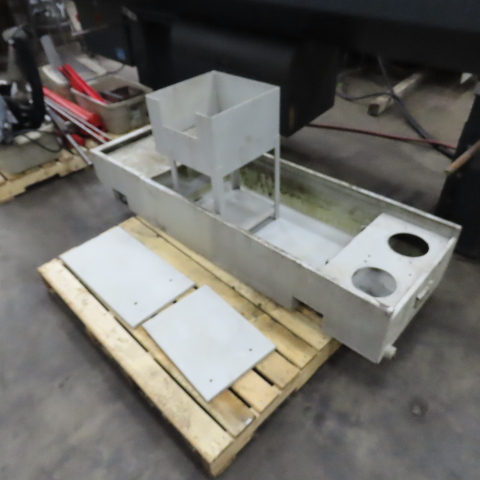

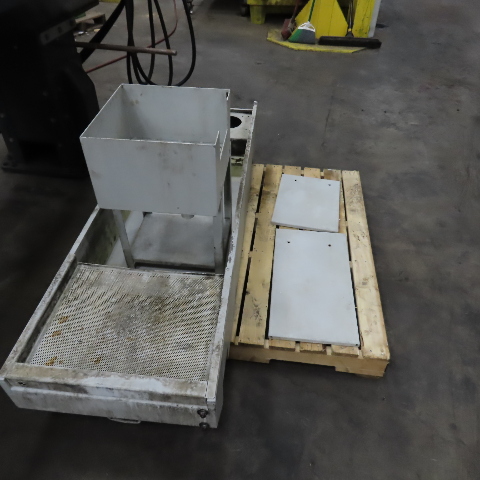

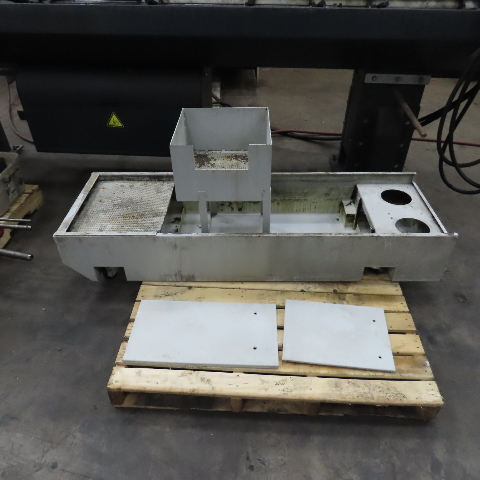

- Coolant pan does not have a motor/pump.

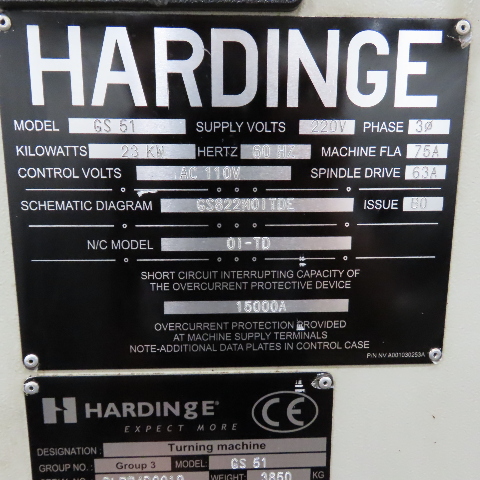

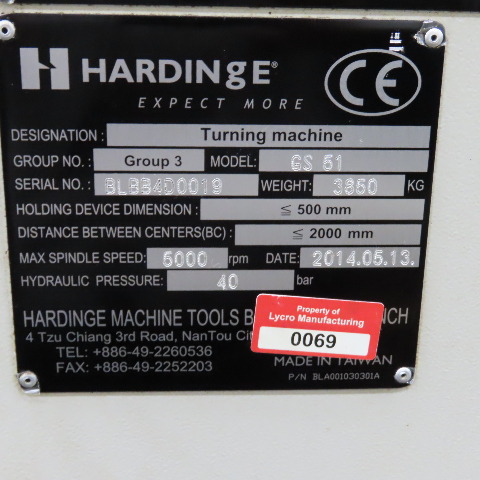

- Machine Serial No. BLBB4D0019 Mfd. In 2014.05.13

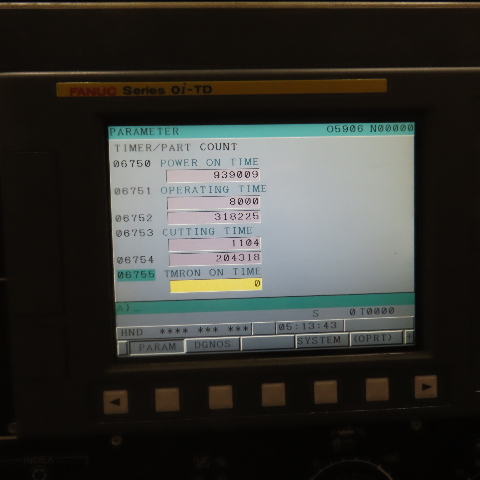

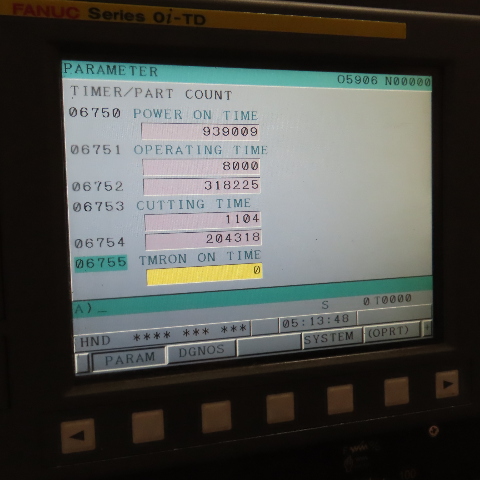

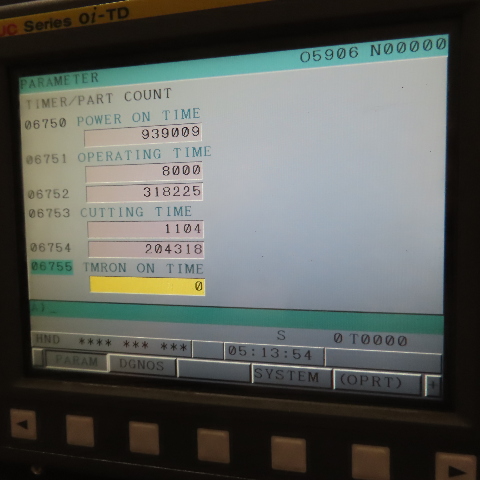

- Power on time 939,009 Hr. (See Pics)
- Operating Time 8000, 318225 (See Pics)
- Cutting time 1104 204318 (See Pics)
- Max Spindle speed 5000RPM
- Distance between centers < 2000mm
- Holding device dimensions < 500mm
- Max workpiece dia 284mm
- Max tool dia 32mm
- Max tool weight 6 kg
- Max tool length 104mm

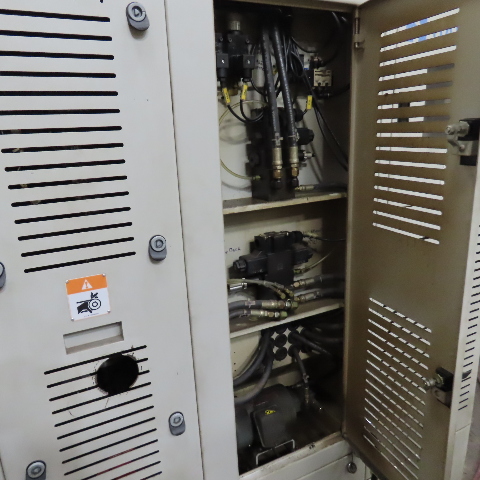

- Hydraulic pressure 40 bar

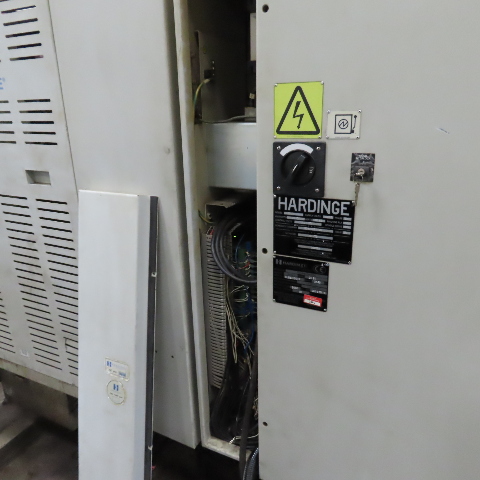

- Supply Volts 220V ONLY 3-Phase 23kW

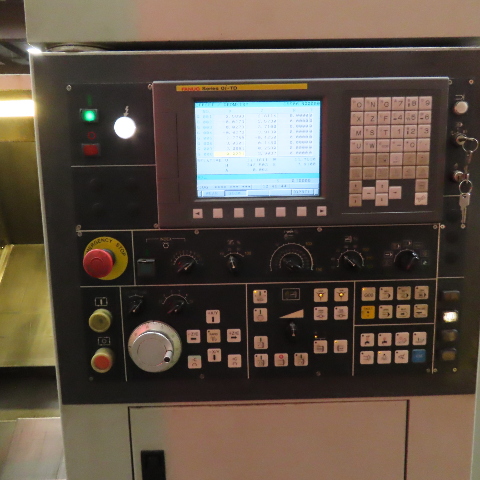

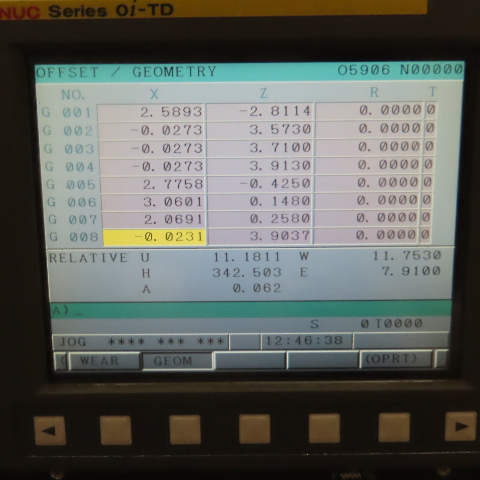

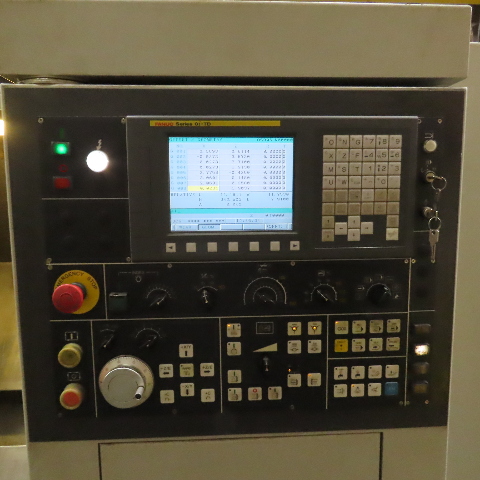

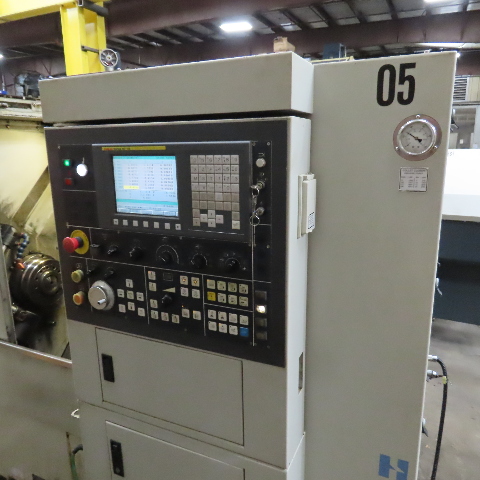

- Fanuc Series Oi-TD Control system
- Renishaw RP3 tool setting probe

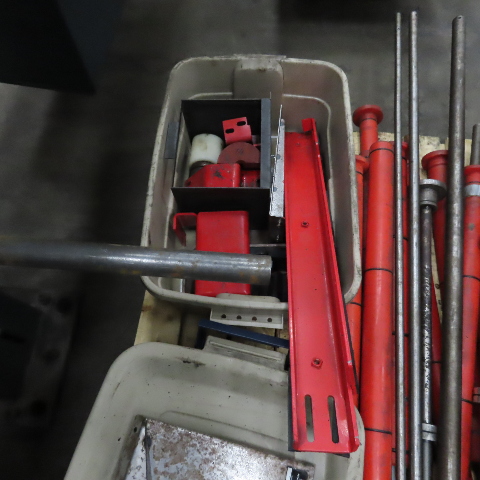

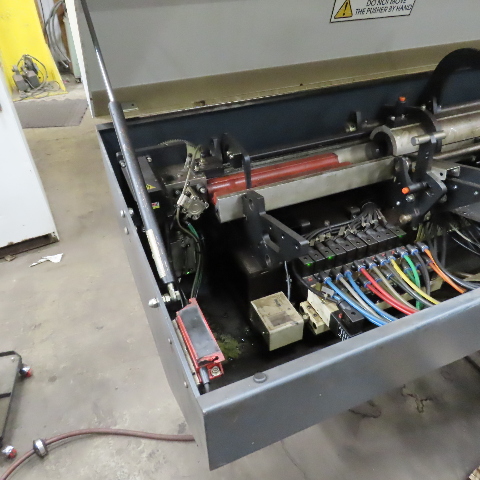

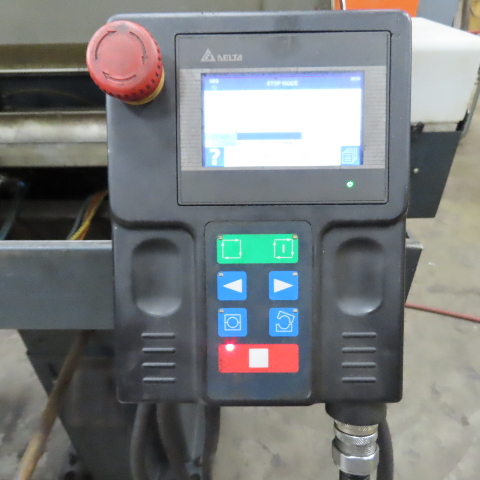

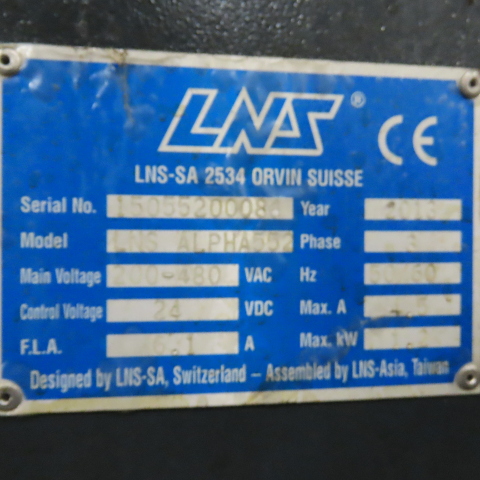

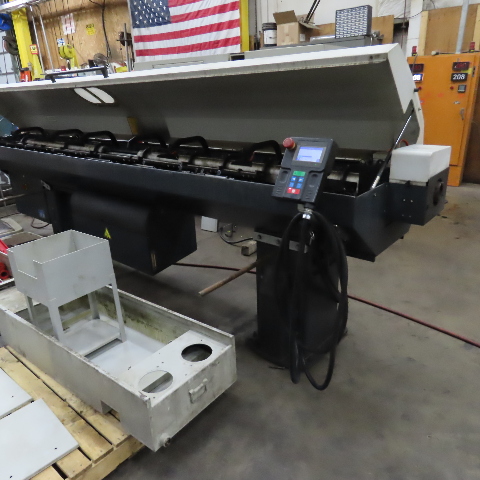

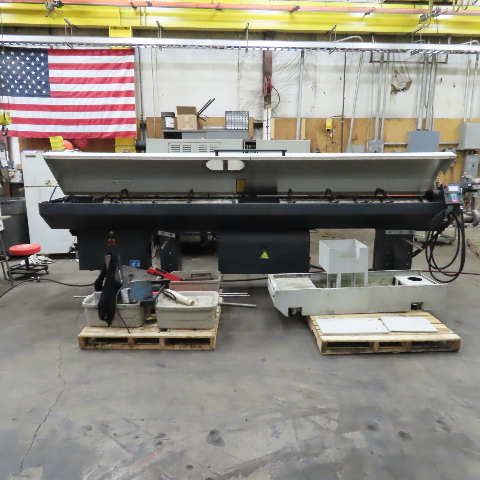

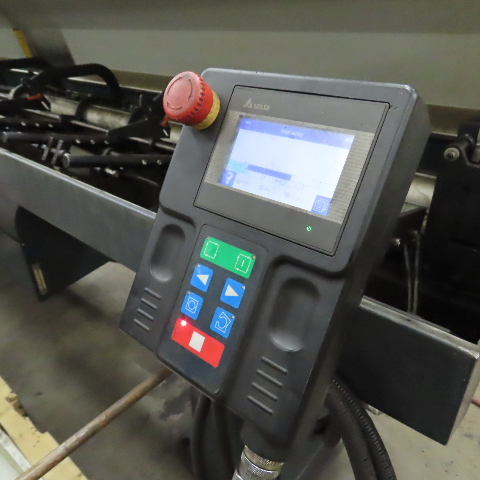

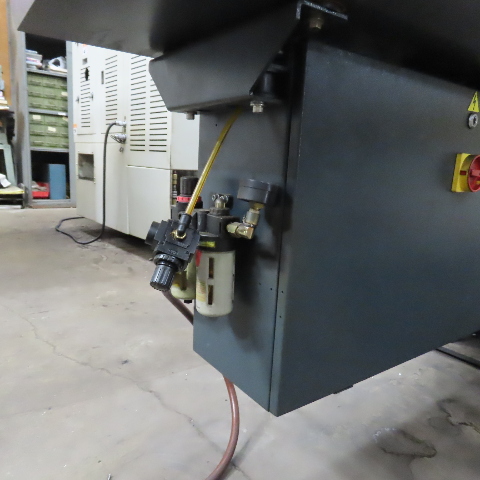

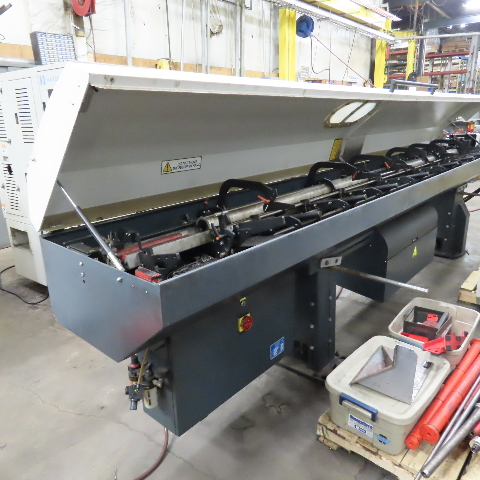

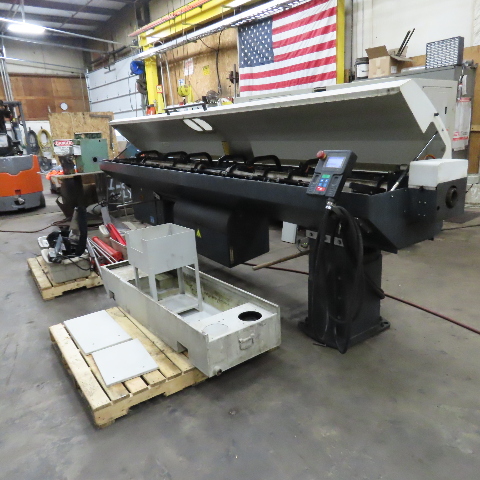

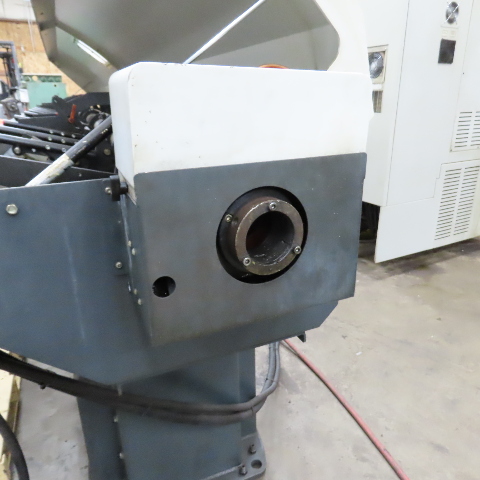

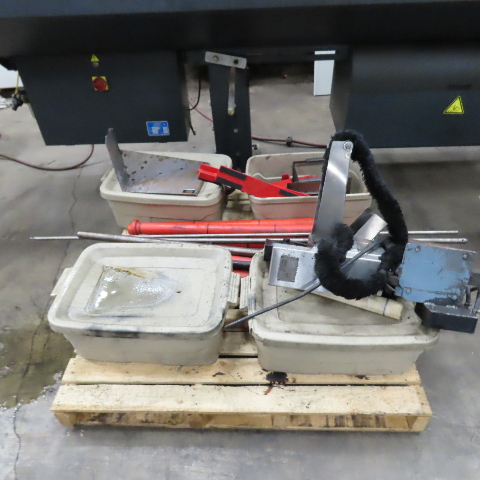

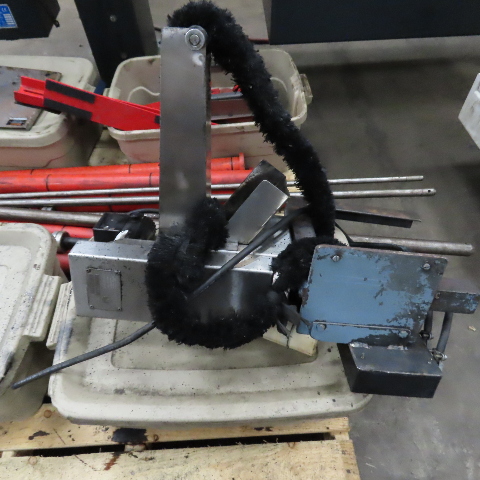

- LNS Alpha 552 Bar Feeder model LNS ALPHA552 Serial No. 15055200086 Year 2013 with hand pendant

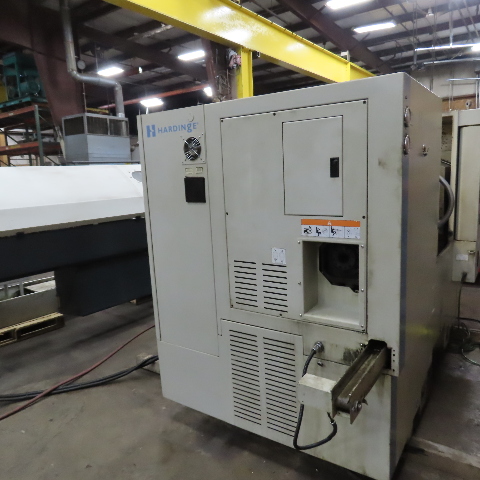

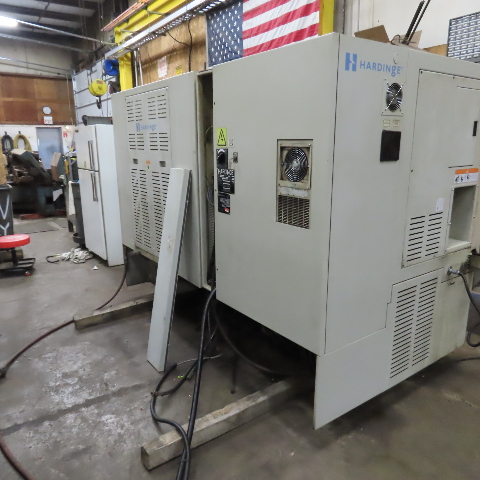

- Machine footprint approx 117" x 64" x 77" H
- Bar feeder footprint approx 187" x 56" x 55" H
